Mono Audio Power Amplifier 20w 2x Tda 2003 Diy Assembling Kit Free Potentiometer

US $5.20

Europe, Bulgaria
Feb 22nd

Open on mobile:
QR code

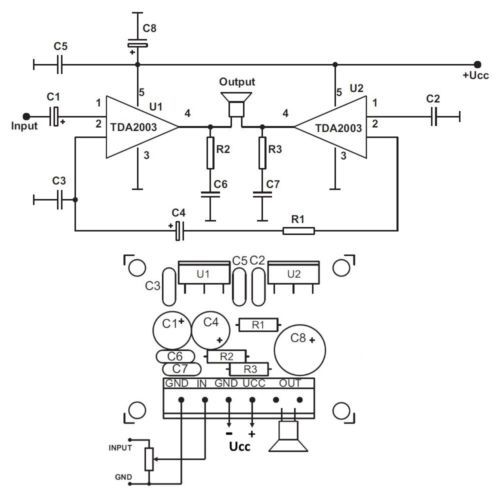

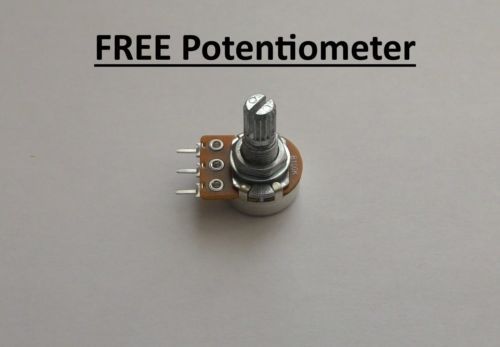

Mono Audio Power Amplifier 20W 2x TDA 2003 DIY Assembling kit + FREE Potentiometer This audio frequency amplifier has been designed using two integrated circuit TDA2003 in bridge connection. This step has the following parameters: Output: 20 W at Ucc=14.4V / 3A and RL=2 OM. Frequency band: 20 to 20000 Hz. Power supply DC - 8 to 18 Volts (You can use the car battery). Max. current - 3A. To avoid any failure, connect the integrated circuits to a dissipating heatsink (heatsink not included)!!! Potentiometer - included. Overall dimensions PCB 46x34 (1.337"x1.812"). Components: 1. TDA2003 2. 1MF/16V-50V 3. 100nF 4. 1nF 5. 470MF/25V-50V 6. 10MF/16V-50V 7. 620 OM 8. 10 OM 9. PCB 10. Circuit and wiring diagrams - 2 - 1 - 4 - 1 - 1 - 1 - 1 - 2 - 1 - 1 ----------------------------------------------------- FREE Tracking number !!! This item Assembling kit (NOT ready built). Look pictures !!! This kit requires assembly and soldering !!! Before you buy this product, please make sure you can assemble it !!! ----------------------------------------------------- Package Content: - 100% Brand New. - 1x Original packing. - 1x Mono Audio Power Amplifier 20W 2x TDA 2003 DIY Assembling kit + FREE Potentiometer. - 1x Bulgarian and English Instruction Manual. Shipping: - We ship worldwide. - Item will be shipped within 1-2 business days upon receipt of payment, excluding weekends and public holidays (parcel will marked as 'GIFT'). All parcel send with insurance and TRACKING number (in the shipping price includes insurance and tracking number). Your signature is required. - Delivery time is around: - 5 to 15 days to most countries in Europe. - 10 to 25 days - Italy. - 7 to 20 days - UK. - 10 to 30 days - USA / Canada. - 15 to 39 days - other countries. Payment: - Only PayPal. Sales Tax: - No Sales Tax is required Warranty & Return: - All products have been checked and packaged in good condition before dispatch. - In case the item is defective, please inform us within 14 days of receipt, we will replace a new one. - Buyers have to pay for the return cost. - Your money would be 100% refund to Your PayPal account if You can not receive items within 30 work days (39 days). - If You do not received item to 39 days, send message, I refund. Customer Services: - Please contact us, we will assist you in any way possible and aim to answer all emails within 24-48 hours.

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Country/Region of Manufacture

Bulgaria
