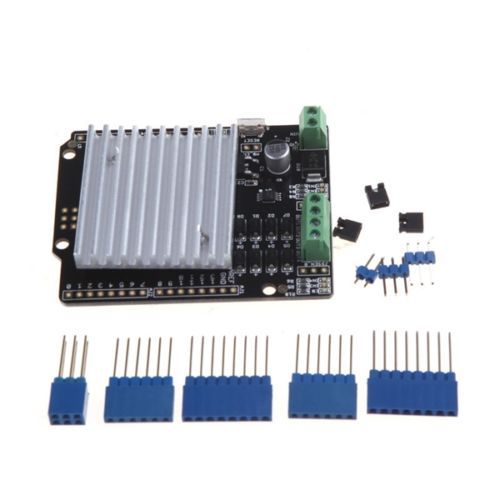

Motor Shield V2 Driver Module Expansion Board For Arduino L298 Development

US $37.75

Shenzhen, China
Feb 24th

Open on mobile:
QR code

Motor Shield V2 Driver Module Expansion Board for Arduino L298 Development Description Overview Motor Shield V2.0 Driver Module Expansion Board for Arduino L298 Development of Micro Robots Intelligent Vehicles Features Compatible with Arduino/Seeeduino. Standardized shape design. LED enable indicator. LED rotation direction indicator. Overcurrent turn-off. Note: Headers of this product is shipped unsoldered. Specifications Operating Voltage: 5V Motor Supply Voltage: 6 - 15V Output Current(For Each Channel ): 1.6 - 2A Output Duty Range: 0%~100% Size: 6.9 * 5.3cm / 2.7 * 2.1in Weight: 35g / 1.24oz Interface U2: 78M05 IC, 0.5A three terminal positive voltage regulator 5V. U3: L298 IC, Dual Full-Bridge Driver. U4: LMV358 IC, Low Voltage, rail-to-rail output amplifier for the isolation between the LED and the signal. Power Jack: Provide power to drive motor when the jumper MB_EN inserted. The purpose of "Supply Power Connector" is using the jumper cap to select USB or external power for driving the motor, But you must insert the jumper cap now. We will later be resolved the problem. Motor Interface: Out 1 and Out 2(Out 3 and Out 4) connect Motor A(B) for DC Motor. When driving a stepper motor, you need to connect relevant lines as follows (another set of pin names are printed on the back side of the board): Indicator 1, Indicator 4: Red Indictor, lit when M1+(M2+) interface outputs positive voltage. Indicator 2, Indicator 3: Green Indictor, lit when the motor spinning anticlockwise. Enable Motor A(B) Interface: Connect left two interfaces with a jumper cap when driving the DC motor A(B). Extern Power Jack: External Power supply for Motor Shield. Enable A Indictor: TTL compatible enable Input of Motor A. Enable B Indictor: TTL compatible enable Input of Motor B. Pin used: D8 to D13 have been used for motor shield. Caution Do not touch the cooling ribs during working. Its temperature can reach up to 100 degrees in the case of full load operating. Package contents 1 x Driver Module 1 x Set of Headers Payment We only accept PayPal, please join the PayPal service in www.paypal.com if not have PayPal account. Please make the payment within 7 business days after the auction end. Shipping Police Please verify your PayPal address during checkout. We are not responsible for any wrong or undeliverable address. We will ship the goods to the PayPal address. Please make sure your PayPal address and phone number is correct. We arrange shipping way according to buyers' location and order quantity. In addition, please confirm your country customs can accept such product and how much of the customs duty. We are not responsible for any custom duty or import tax. We will not bear the lost if not get the package due to the policy in your country customs, kindly note. Shipping time depends on destination and customs clearance, please refer to following chart. And international transport speed all depend many issues. Please contact us if not get the package within 30 business days (not included weekend and holiday). We will not be responsible for customs duty, kindly noted. We will declare the goods name & value in a suitable so that you can avoid or reduce tax. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to buying. If item blocks by your location customs, we will not refund, as we also can not get it back. If it returns from customs, we will refund, except the shipping cost that we paid yet. Items will be shipped out via registered air mail within 3 business days with tracking number depends actual situations, tracking number will be uploaded immediately after shipment. If customers need express shipping service, please contact us. Customer Service All message and email will be replied within 2 business days expect the holiday. Please kindly view your email if not get eBay message. Please don’t hesitate to contact us if any questions or concerns before or after purchase. We are committed to your 100% satisfaction. Thank you in advance for your patience. Warranty Police All items will be double checked and confirmed it work well before send. If the product you have received is damaged during shipping, please do not hesitate to contact us within 3 days, we will response in 48 hours to resolve the problem. We are not responsible for physical damage or other failure caused by incorrect use. Please contact us to get a return address and phone number, we don't accept return without our assent. Consumer must be returned with all the original manufacturers packaging with tracking number, including cartons, parts and instructions manual etc. And need provide the related information about package, such as eBay ID/email/Order Number and reason for return should be included in the package Customer is responsible for shipping and handling, insurance costs related to returning the item. We will inform you as soon as possible after receive the package, please allow 3-7 days to handle resend. Feedback In order to provide you a better service, please treat the transaction fairly. Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues. We highly value long term business relations, buy with confidence. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	OEM
MPN	TT-CN-A69
Model	TT-CN-A69
Country/Region of Manufacture	China
