Mph Bee Model 36 Radar

US $150.00

United States
Jan 29th

Open on mobile:
QR code

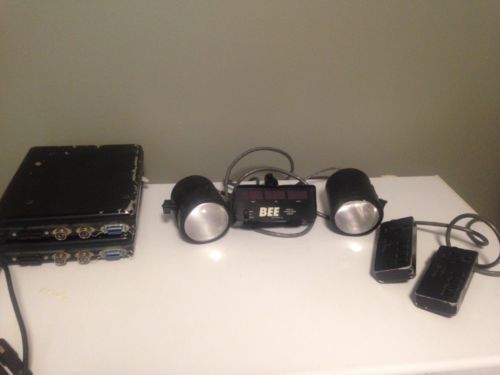

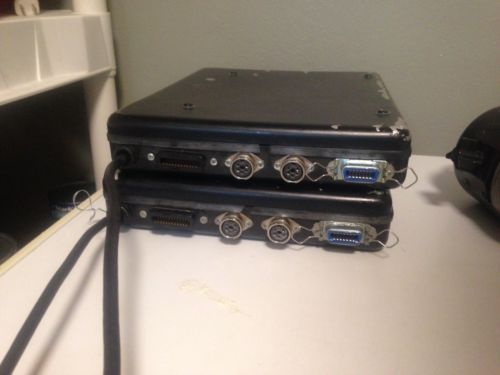

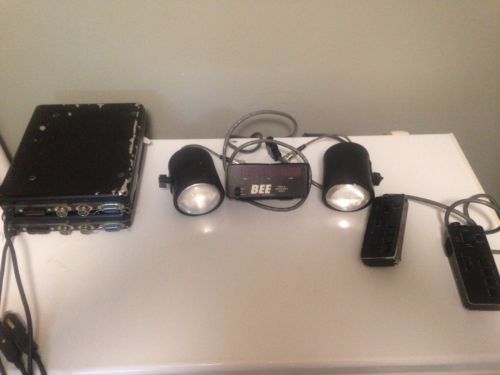

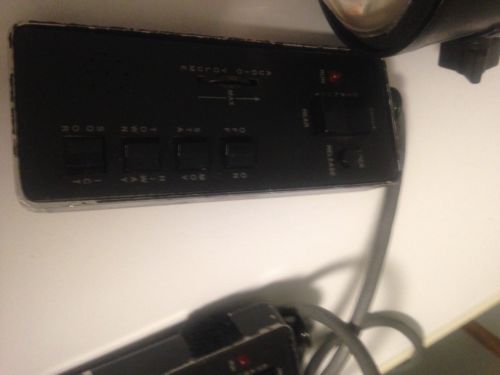

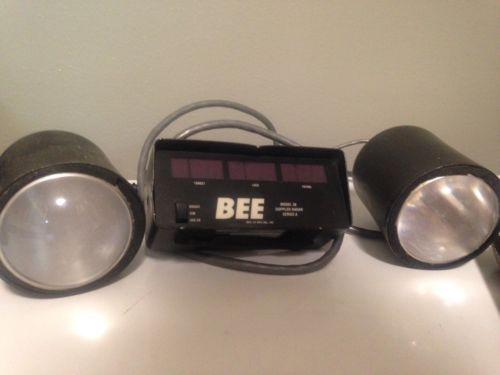

Item has been tested and powers on and shows speeds. Has wear and used marks but does not affect operations. Does not come with tuning forks. Comes with extra computer unit and remote. Was working when taken out of service. Any questions feel free to ask. All sales are final no returns Factory specs are below BEE-36BEE 36 (Series A) M.P.H. Industries, Inc. OPERATION multi-piece system -- remote control -- computer module -- readout display module -- forward looking antenna (weather proofed) -- 2nd optional rear facing antenna (weather proofed) X, K and Ka models available Instant On or continuous stationary or moving mode stationary -- measures on-coming AND going traffic moving mode (front antenna) -- on-coming traffic only moving mode (rear antenna) -- going traffic only (only one antenna active at a time for either stationary or moving mode) Audio Doppler (Target) Manual-lock (Speed), separarate display Pacing mode -- radar in stationary mode measures patrol car speed CONTROLS Instant On (FRONT / STANDBY / REAR) FRONT -- transmit, front antenna STANDBY -- radar in standby, on but not transmitting REAR -- transmit, rear antenna Manual Lock (LOCK / RELEASE) Moving/Stationary switch (MOV / STA) Town / Highway (HIWAY / TOWN) In moving mode should use -- TOWN for patrol speeds to 35 mph, -- HIWAY for speeds above 35 mph. Audio Volume Display Lighting BRIGHT -- brighten displays DIM -- dim displays Test SEG CK -- check display segments ICT -- Internal calibration test -- In stationary mode displays 32 in target window if passes. -- In moving mode displays 32 in target and patrol car windows if passes. -- Florida units display 32 in patrol window and 31 in target window. On/Off DISPLAYS / INDICATORS Display (LEDs) -- Target Speed stationary: 20 to 129 mph moving mode: 20 to 209 mph (max closing speed) Display (LEDs) -- Locked (target) Speed Display (LEDs) -- Patrol Car Speed 20 to 79 mph (wider speed measuring ranges may be special ordered) Speaker -- tone proportional to target Doppler frequency Indicators LV -- low voltage indication RFI -- Radio Frequency Interference CD (optional) -- Coherence Detector: indicates harmonic frequencies present RUN (not all units) -- Indicates RUN or STANDBY mode INTERNAL FUNCTIONS Runs calibration test automatically (periodically). Target display shows 31 and patrol car speed display shows 32 when test running. (Florida users only) Specifications FREQUENCY X band 10.525 +/- 25 MHz K band 24.150 +/- 100 MHz Ka band select frequencies between 33.4 and 36.0 GHz (+/-100 MHz) (33.8 GHz reported) OUTPUT POWER 50 mW maximum 12 - 30 mW nominal power density less than 2 mW/sq cm at 5 cm ANTENNA circular polarization beamwidth X band 18 degrees (+/-1 degree) K band 15 degrees (+/-1 degree) Ka band 15 degrees (+/-1 degree) side lobe X band -24 dB K band -24 dB Ka band -25 dB SPEED MEASURING RANGE stationary mode 20 to 129 mph (opening/closing targets) moving mode 20 to 209 mph (closing only) patrol car speed 20 to 79 mph SUPPLY VOLTAGE patrol car battery (via cigarette plug) 10.8 to 16.5 Vdc (13.6 Vdc nominal) 0.2 to 1.7 A (0.7 A nominal) ENVIRONMENTAL -30 to 60 degrees Celsius (-22 to 140 degrees Fahrenheit) 90 percent humidity at 37 deg C ((99 deg F) PHYSICAL READOUT MODULE depth 2.62 in width 6.00 in height 2.50 in SIGNAL PROCESSOR length 10.50 in width 8.50 in height 1.75 in length diameter ANTENNA X band 6.75 in 5.05 in K band 5.00 in 3.75 in Ka band 3.5 in 2.5 in MICROWAVE SOURCE Gunn-effect diode MIXER DIODE Schottky barrier (100 mW burnout rating) claimed RANGE 2500 feet
