Ms7221 Volt/ma Calibrator

US $12000

Parlin NJ, United States
Jan 30th

Open on mobile:
QR code

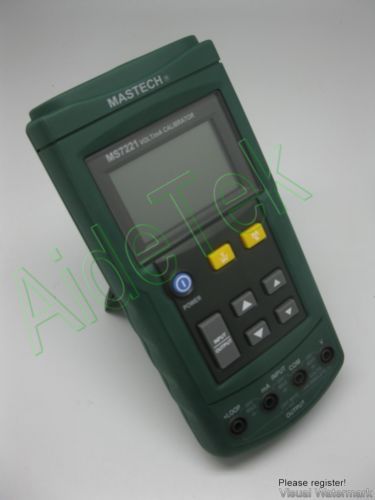

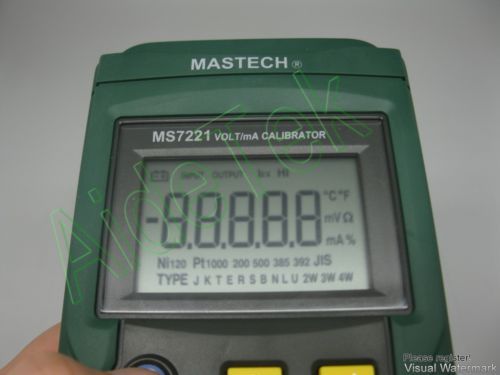

NEW MASTECH MS7221 multi-function VOLT/mA CALIBRATOR compared w/ FLUKE 715 788 787 Source/Output Step DC Volts 0-10V, up to 24mA DC current, measure voltage mA Brand new with 1 year USA warranty + 14 days return policy In stock in our USA warehouse, USA order ship by usps priority mail 2-3 business days with track number for free MS7221 Volt/mA Calibrator is a source and measurement tool. This Calibrator is use to measure or output 0 to 24 mA DC current loop, and 0 to 10 V DC voltage. But the calibrator cannot be used to measurement and source simultaneously. • Display: 24000 counts • Measure loop current signals with very high accuracy and 0.001 mA resolution • Measure voltage output process signals from PLCs, transmitters • Source or simulate 24 mA loop current • Source voltage to 10V • 24V loop supply with simultaneous current measurement SPECIFICATIONS DCV Measure: 0 ~ 100m V, 0 ~ 10 V±0.02% DCV Source: 0 ~ 100m V, 0 ~ 10 V±0.02% DCmA Measure(% of span): 0 ~ 24 mA±0.015% DCmA Source(% of span): 0 ~ 24 mA±0.015% Weight: 350g (include battery) Size: 190mm x 89mm x 42mm Battery: 9VDC,006P or 1604 Measurement and output voltage parameter Function Range Resolution DC V mV Input 0 ~ 100 mV 0.01 mV 0 ~ 10 V 0.001 V DC V mV Output 0 ~ 100 mV 0.01 mV 0 ~ 10 V 0.001 V Loop Power Output 24V DC N/A Measurement and output mA parameter Function Range Resolution DC mA Input 0 ~ 24 mA 0.001 mA DC mA Output 0 ~ 24 mA 0.001 mA Specification Specification are based on a one year calibration cycle and apply from +18°C to +28°C unless stated otherwise. “Counts” means number of increments or decrements of the least significant digit. DC V Input and Output Range Resolution Accuracy ±(% of reading + Counts) 100 mV 0.01 mV 0.02 % + 2 10 V 0.001 V 0.02 % + 2 Input impedance: 2M? (nominal),< 100pF Over voltage protection: 30 V Voltage driver capability: 1 mA DC mA Input and Output Range Resolution Accuracy ±(% of reading + Counts) 24 mA 0.001mA 0.015 % +4 Overload protection: 125 mA,250V fast acting fuse Percent display: 0%=4mA,100%=20mA Source mode: compliance 1000? at 20mA for battery voltage >=6.8V, (700? at 20mA for battery voltage 5.8 to 6.8V) Simulate mode: External loop voltage requirement: 24V nominal, 30V maximum, 12V minimum. LOOP POWER 24 V ± 10% General Specifications: Maximum voltage applied between any jack and earth ground or between any tow jack:30V Storage temperature:-40°C~60°C Operating temperature:-10°C~55°C Operating altitude:3000 meters maximum Temperature coefficient:±0.005% of range per °C for the temperature range -10°C to 18°C and 28°C to 55°C Relative humidity:95% up to 30°C,75% up to 40°C,45% up to 50°C,35% up to 55°C Shock:Random 2g , 5Hz to 500Hz Safety:1 meter drop test Power requirements:9VDC, 006P or 1604A Size:190mm L x 89mm W x 42mm H Weight: 350g (include battery) Shipping: USA order will ship from our USA warehouse, ALL ither orders will ship from our China warehouse by air mail with track number, it takes around 8-14 business days to arrive, thank you Accessories • Red/black banana test leads; • Hard carrying case; Click here to download the manual: http://www.aidetek.com/New_products_info/Datasheet/huayi/MS7221_English_Manual.pdf
