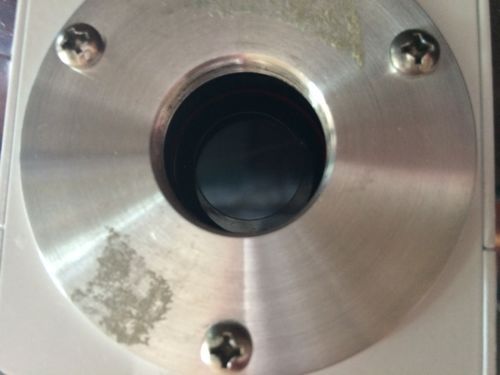

MTI Camera NC-70L, US $80.00 – Picture 0

MTI Camera NC-70L, US $80.00 – Picture 1

MTI Camera NC-70L, US $80.00 – Picture 2

Mti Camera Nc-70l

US $80.00

Morrisville, North Carolina, United States
Jan 30th

Open on mobile:
QR code

You are buying MTI NC-70L video camera. This is an used item but in a perfect working condition. Please refer to the instructions attached below to understand this camera's capability and functions. IT ONLY COMES WITH THE CAMERA, NO POWER SUPPLY NOR CONTROL PANEL. NC-70 Features and Benefits Real-Time Video Output Operation at 30 fps High Resolution Up to 1000 TV lines Resolves very fine detail Image Tubes Newvicon (response from 400-850nm) Designed for Quantitative Analysis Precise, lockable controls for calibrated measurements Adjustable Image Enhancement Automantic/manual gain control Automatic/manual black level control Aperture and bandwidth control for optimum sharpness with minimum noise Gamma provides setting of linear for quantitative measurements or compensation for CRT display to improve low contrast images High/Low Gain Switch Provides additional gain boost for low contrast images Polarity Reversal Provides inverted grey scale output Grey Scale Stretch provides a six-fold amplification of user selected grey levels Two-Piece Design Allows for convenient desk-top control of image enhancement features Extended cable lengths available Ten-Step Grey Scale Test Signal Allows the user to quickly and correctly set the contrast and brightness on a monitor NC-70 Technical Specifications Input Voltage 98 to 135 volts 50/60 Hz or 195 to 260 volts 50/60 Hz Input Power 18 watts @ 120 volts AC Vertical Sweep Rate 60 Hz standard or 50 Hz Horizontal Sweep Frequency 12 KHz to 35 KHz Scanning 2:1 Interlace, 525/60 or 625/50 standard Optional Scan Rates 2:1 Interlace, 559/60, 625/50, 875/60, 945/60, 1025/60 (other scan rates available) Type of Sync and Blanking Waveform EIA RS-170 standard, RS-330, RS-343 optional Image Tubes Newvicon Sensitivity 75 nanoamps of average tube signal current for 1 volt composite output Automatic Gain Over 12 db at full bandwidth Video Output Composite 1 Vpp, black to white .65 volts, .3v sync, black negative Polarity; source terminated 75 ohm. Dual isolated video outputs. Geometric Distortion Within major circle 0.5% - Overall 1.0% Linearity Distortion Horizontal 0.25% Vertical 0.25% External Lock Lockable to External H&V Drive or Composite Sync Enhancement Adjustable 0 to + 12db at user specified peaking frequency Video Amplifier Greater than 18 mHz bandwidth DC coupled output, black reference at ground potential White Clipper Variable Bandwidth control Automatic Black Level Automatic Video Level Gamma correction ? switchable between 1 and .5 Options Crystal Control External Drive/Sync Lock MECHANICAL Head (less lens) 2-7/8" (H) x 2-3/4" (W) x 9-1/4" (L) Weight 2 lbs. 4 oz. (1 Klg) Control Unit 3-3/4" (H) x 8-5/8" (W) x 12-3/4" (L) Weight 7.2 lbs (3.28 Kg) Lens Mount C mount Camera Mount Two 1/4" x 20 tapped holes Type of Coaxial Connector BNC NC-70 Suggested Applications Brightfield, Phase Contrast, and Darkfield Microscopy Electrophysiology Semiconductor Inspection Manufacturing Quality Control Failure Analysis Teaching Environment

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Used but in a good working condition”
