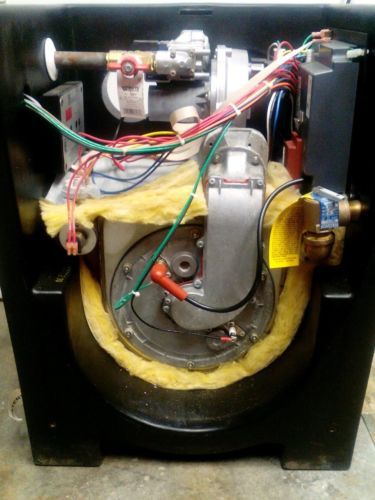

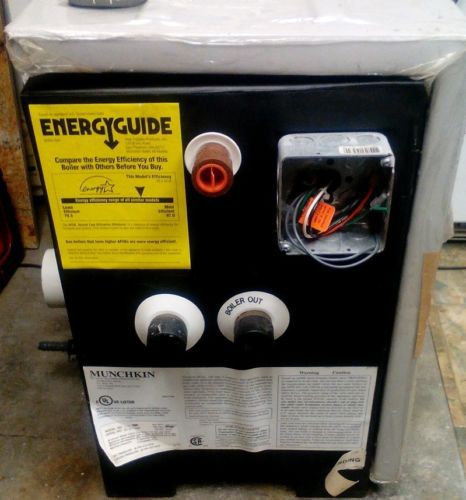

Munchkin 80 M Boiler Brand New

US $700.00

Concord, California, United States
Jan 29th

Open on mobile:

Specification for Heat Transfer Products, Inc. Munchkin Boiler Typical Specification for the Munchkin High Efficiency Boiler Model Numbers: T50/T80M/80M /140M/ 199M (Modulation Range 18,000 to 199,000) The Boiler shall be a Munchkin Boiler, manufactured by Heat Transfer Products Inc. Model _____M. Having a modulation input range of ______________Btu/Hr, a modulation output range of _____________ Btu/Hr and shall be operated on Natural Gas or L.P. Gas The Entire Heat Exchanger shall be constructed of 316Lstainlesssteel. The 316L stainlesssteel combustion chamber shell shall be designed to drain condensation to the backofthe Heat Exchanger section. A Rubber Neoprene condensate hose with built in trap shall allow condensation to drain from the Heat Exchanger sections. The water containingHeat Exchanger Tubesshall be rolled and formed in a helical pattern. These tubesshall be secured in a header with o-ringseals,which are held together in place with stainlesssteel bandingmaterial. The water side and combustion gasside will have baffle plateswhich will allow the boiler to control the flow ofeach median in order to condense the flue gasand achieve a 92% AFUERating. The entire Heat Exchanger shall be insulated and secured in a plastic enclosure. All componentsshall be located in the front ofthe heater for easyaccessfor future serviceability. The complete heat exchanger assemblyshall carrya 12year limited warranty. The boiler shall be a sealed combustion system, takingonlyoutside air for combustion and exhaustingthe flue gaswith plastic schedule 40 or 80 PVC pipe. The intake/exhaust shall be piped with solid PVC or solid ABSschedule 40 or 80. Foam Core pipe isnot an approved material for either intake/exhaust piping. The boiler’s total combined equivalent ventinglength,lessfittingallowancesfor both the intake and exhaust venting shall not exceed 85’for 2”and 3”pipe sizesand 125’in 4”pipe size. The boiler shall have a 3/4 gasconnection on the right side and electrical and 1-1/4”nipple connectionson the right hand side ofthe boiler. The ventingconnection shall be located in the rear ofthe boiler. The operation ofthe boiler shall be in a closed loop pressurized system,which must have a properlysized thermal expansion tank,or to meet local codes. The boiler’sconstruction isin accordance with ANSIStandard for GasFired Low- Pressure steam and Hot W ater Boilers,ANSIZ21.13b-1994,and Canadian National Standard CGA-4.9-1999.26UB. The heater should run at an efficiencyofno lessthan 96% . The heater shall be UL/ULC (File #MH 27745)listed and exceed the minimum efficiencyrequirementsofAshrae/103-1993. The heater shall have an AFUEratingof
