National 2ghz Frequency Synthesizer Lmx2322, New,qty.10

US $5.99

  • Potomac, Maryland, United States
  • Jan 29th

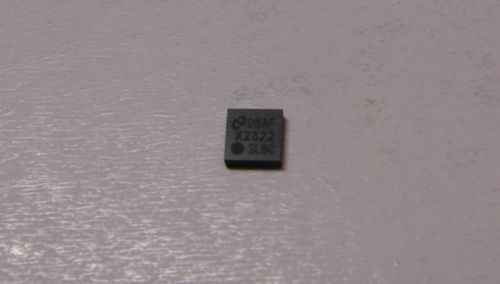

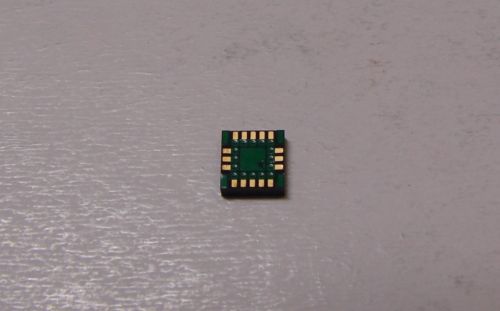

This is one Lot (Qty. 10) of New National Semiconductor PLLatimun 2GHz Frequency Synthesizer IC, Part Number: LMX2322SLBX in SLB16A (CSP16) Package. This part is designed for Lucent Technologies for their wireless product and never formally released to public. National Semiconductor changed a little bit in specification and pinout and released as LMX2324SLBX. Please refer to LMX2324SLBX data sheet for detail information. I do have preliminary data sheet from National Semiconductor and provided below for your reference. General Spec: Frequcney Operation: up to 2GHz Dual Modulus Prescaler: 32/33 Single Power Supply: 2.7V to 3.9V Low Current: 3.5mA at 3.75V SLB16A (CSP16) Package Data sheet for LMX2322 on Web at: http://rfbayinc.com/upload/files/data_sheet/ic/lmx2322.pdf Data sheet for LMX2324 on Web at: http://www.ti.com/lit/ds/symlink/lmx2324.pdf
