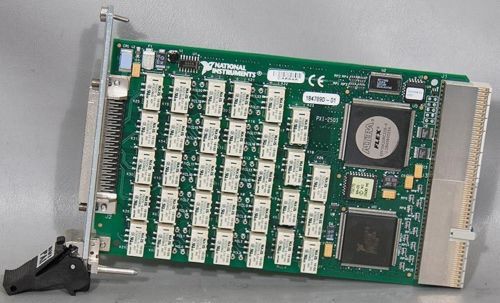

National Instruments Pxi-2503 Low-voltage Multiplexer/matrix Relay Switch Card

US $649.49

Phoenix, Arizona, United States
Feb 17th

Open on mobile:
QR code

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! National Instruments PXI-2503 Low-Voltage Multiplexer/Matrix Relay Switch Card Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from National Instruments and may vary slightly due to upgrades, options, or revisions this unit may or may not have. This unit is guaranteed to work. The Unit's Information Reads: Model Number: PXI-2503 Part Number: 184789D-01 Serial Number: CA6A4A CE Marked: Yes Link to the Datasheet: National Instruments PXI-2503 Multiplexer/Matrix Relay Switch Card Datasheet Key Features: 48x1 (1-wire), 24x1 (2-wire), 12x1 (4-wire) modes with TB-2605 4x6 (2-wire) matrix mode with TB-2606 1024-step scan list for deterministic scanning Fully software programmable Easy instrument synchronization with hardware triggers Description: The National Instruments PXI-2503 performs as a multiplexer or matrix switch. It switches signals up to 60 VDC or 30 Vrms. For low-voltage measurements, such as thermocouple signals, the NI PXI-2503 relays have very low thermal offset (less than 2 µV) for accurate measurements. For automotive-level voltage measurements, the PXI-2503 handles up to 1 A at 30 VDC. General Specifications: Form Factor: PXI / PXI Express PXI Bus Type: PXI Hybrid Compatible Operating System / Target: Linux, Real-Time, Windows Product Family: Switches Switch Type: Matrix, Multiplexer Timing/Triggering/Synchronization Specifications: Synchronization Bus (RTSI): Yes T-clock Compatibility: No Triggering: Digital External Clocking: No Switches Specifications: Relay Type: Electromechanical Multiplexer Configuration Specifications: Mode (n-wire): 1-wire, 2-wire, 4-wire Rows: 6, 12, 24, 48 Columns: 1 Banks: 1, 2, 4 Matrix Configuration Specifications: Mode (n-wire): 2-wire Rows: 4 Columns: 6 Banks: 1 For More Pictures Please Click the Following: Picture 2 - Top View Picture 3 - Back View Picture 4 - Connector View Picture 5 - Serial Number Tag For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $10.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 02/16/15 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

“This unit is guaranteed to work.”

Brand	National Instruments
MPN	184789D-01
Model	PXI-2503
