Ne555 Duty Cycle Adjustable Pulse Frequency Module Square Wave Signal Generator

US $1500

Shanghai, China
Nov 23rd

Open on mobile:
QR code

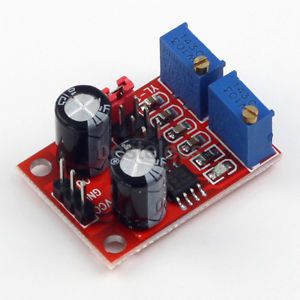

NE555 Duty Cycle Adjustable Pulse Frequency Module Square Wave Signal Generator Description Features: Size: 31mm * 22mm; Main chip: NE555; Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around; Input current: >=100MA Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different) Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%) Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes); The output requency range is selectable: LF file: 1Hz ~ 50Hz IF file: 50Hz ~ 1kHz High-frequency file: 1KHz ~ 10kHz HF file: 10kHz ~ 200kHz The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency; The output frequency is adjustable: Period T = 0.7 (RA +2 RB) C RA, RB is 0-10K adjustable; Low profile when C = 0.001UF; IF stalls C = 0.1UF; High-frequency file C = 1UF; HF stalls C = 100UF; so buyers can calculate the frequency of the waveform. Application: As a square wave signal generator,generates a square wave signal used for experimental development. Used to drive a stepper motor for generating a square wave drive signal. Generate adjustable pulse for MCU. Generate adjustable pulse,to control circuitry associated. Download: http://www.uctronics.com/download/U0904_NE555_module.zip Packing list: 1pcs Duty Cycle Adjustable Pulse Frequency Module Square Wave Signal Generator NE555 Payment We accept Paypal as payment Delivery details Delivery to most of the countries will take 2-4 weeks, if there's no problem when pass through the customs. Please make sure your shipping address is correct.Any non-received items caused by invalid or wrong shipping address are not in our full refund or replacement policy. The extra fee occured when the product pass through the customs should be paid by buyer Terms of sales The default shipping is by China Post air mail/Hongkong air mail to worldwide. We provide you combine shipping by e-Packet Service to USA and only charge you 1.8USD for each order. Item will be shipped within 1-2 working days after your cleared payment.Note:order more than $50, we provide free tracking number, order less than $60, customer need to pay $2 if need tracking number. About us We are a company based in China developing and manufacturing electronic development device , including electronic components ,camera module, camera lens , LCD modules and other development board for Raspberry pi,Arduino and other opensource hardware Platform We can also provide customized design and manufacture services according to your requirements. Contact us If you have any questions, please feel free to leave us ebay message or email us directly! All messages will be replied within 1~2 business days exclude weekends and holidays. Please do not leave negative feedback or open a case before you contact us. Many thanks for your cooperation:P On Nov-23-16 at 03:17:18 PST, seller added the following information:
