Ne555 Signal Generator Square Wave Pulse Frequency Adjust Stepper Motor Driver

US $4400

Hongkong, China
Jan 29th

Open on mobile:
QR code

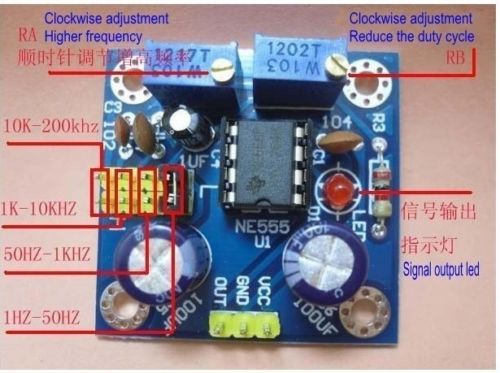

Description new NE555 pulse frequency adjustable module Square wave signal generator Specification: 1. use as a square-wave signal generator, generate square wave signals used for experimental development. 2. to generate square wave signal driving stepping motor drive. 3. adjustable pulses generated for use by the MCU. 4. adjustable pulse control related circuits. Description: size: 3.5CM*3.6CM 1, Main chip: NE555; 2, Input voltage: 5V-15VDC. (When 5V power supply, output current =15MA; when 12V power supply, output current=35MA); 3, Input current: ≥ 100MA 4, the output amplitude: 4.2V V-PP to 11.4V V-PP. (according to the different input voltage, output will be different) 5, Maximum output current: ≥ 15MA (5V power supply, when V-PP is greater than 50%), ≥ 35MA (12V power supply, when V-PP is greater than 50%) Characteristics and advantages: 1, output with LED indication(low level LED ON, high level LED OFF, at lower frequencies than the LED flashing); 2, the output frequency range level can be selected, the output frequency adjustable; Low frequency: 1Hz~50Hz MF: 50Hz~1kHz HF: 1KHz~10kHz HF: 10kHz~200kHz 3, the output duty cycle can Adjustable(Small), adjustable duty ratio will change the frequency. 4, the output frequency adjustable; Cycle T=0.7 (RA+2RB) c RA, RB for the 0-10K adjustable; C=0.001UF low frequency gear; C=0.1UF MF gear; High frequency in document C=1UF; C=100UF high frequency gear, wave frequency buyers can own calculation. Package: 1pc Payment & Shipping We accept Paypal only. and will send to paypal address. Our prices do NOT include any customs duty or tax. Item will be shipped in 2-3 work days after receiving full payment. Shipping to worldwide. It usually takes approximately 7-10 bussiness days to receive items by EMS, USPS or DHL. Tracking Number will be provided. Returns Policy 100% Satisfaction Guarantee / Money Back Guarantee We offer a 30 days money back guarantee. We will take back any products with which you are not completely satisfied within the 30 days from the date of our purchase. All returned products MUST be in new, resalable condition and include original packaging. All manuals, registration cards and accessories MUST be included. We will promptly refund your purchase price. NO question asked. SHIPPING IS NOT REFUNDABLE. CUSTOMER PAYS ALL RETURN SHIPPING We do not pay for return shipping, nor do we refund promotional shipping. Once returned items are received, credit will be issued to the original credit card used for the purchase. Outbound shipping (including promotional shipping) and return shipping costs will not be refunded. Please allow 5 days for your refund to be processed once product has been received. If your refund has not been processed within that time, please email us with your return tracking # and we will honor your refund based on the delivery confirmation. Return shipping is Buyer's Responsibility. We don't bare the shipping charge that your part cost. Notices You should carefully read the Shipping, Payments, and Returns Policies. Your purchase or use of our products implies that you have read and accepted these Terms and Conditions. We will try our best to solve every problem. Please communicate with us before you are going to leave us a neutral / neg feedback. We greatly appreciate your positive feedback and we will promptly do the same. If you have any question, pls leave us message. On Dec-10-14 at 19:53:06 PST, seller added the following information:
