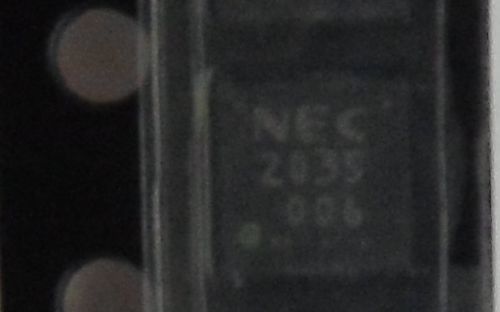

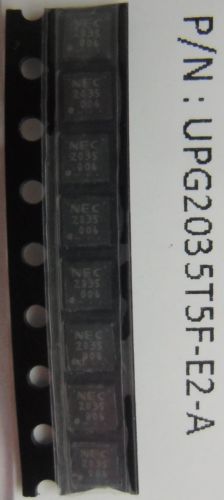

Nec UPG2035T5F-E2-A QFN12 Ship from US, US $2.23 – Picture 0

Nec UPG2035T5F-E2-A QFN12 Ship from US, US $2.23 – Picture 1

Nec UPG2035T5F-E2-A QFN12 Ship from US, US $2.23 – Picture 2

Nec Upg2035t5f-e2-a Qfn12 Ship From Us

US $2.23

Tucson, Arizona, United States
Jan 29th

Open on mobile:
QR code

Our mission is to give you the e–components you need without having to deal with long delivery times from China. All of our components are already in the US. You can order 1pcs of any part, there is no minimum for ordering. just place an order and you will have your parts in no time! All components come in brand new condition with a 2 months limited warranty, you have plenty of time replace them if needed. • OPERATING FREQUENCY: 2.4 to 2.5 GHz and 4.9 to 6.0 GHz (specified) 2.0 to 6.0 GHz Broadband Operation (unspecified) • LOW INSERTION LOSS: 0.8 dB TYP. @ 2.4 to 2.5 GHz 1.2 dB TYP. @ 4.9 to 6.0 GHz • POWER HANDLING: Pin (1 dB) = +31 dBm TYP. @ 2.4 to 2.5 GHz +30 dBm TYP. @ 4.9 to 6.0 GHz • CONTROL VOLTAGE: +3.0 V / 0 V (Dual control) • HIGH ISOLATION: INPUT to OUTPUT = 34 dB TYP. @ 2.4 to 2.5 GHz INPUT to OUTPUT = 33 dB TYP. @ 4.9 to 6.0 GHz TX to RX, ANT1 to ANT2 = 24 dB TYP. @ 2.4 to 2.5 GHz TX to RX, ANT1 to ANT2 = 22 dB TYP. @ 4.9 to 6.0 GHz • INPUT/OUTPUT RETURN LOSS: 15 dB TYP. • SWITCHING SPEED: 50 ns @ tRISE/tFALL (10/90% RF) • 12-PIN PLASTIC QFN PACKAGE: (3.0 x 3.0 x 0.75 mm) Bandwidth: 2400 MHz to 6000 MHz Number of Switches: Single Switch Configuration: DPDT Frequency: 2400 MHz to 6000 MHz Insertion Loss: 1.4 dB Off Isolation - Typ: 17 dB Maximum Operating Temperature: + 85 C Mounting Style: SMD/SMT Package/Case: QFN-12 Packaging: Reel Brand: CEL High Control Voltage: 2.7 V to 5 V Maximum Power Dissipation: 150 mW Minimum Operating Temperature: - 45 C Factory Pack Quantity: 3000 Supply Current: 1.5 uA Feedback: Once you have received your item, please leave feedback for us as this will inform us that you have received your items. · Please leave us a positive feedback after you receive your order, we will give you a positive feedback soon. · Your satisfaction is most important for us. If you have a problem or question regarding your transaction, please contact us before leaving any type of feedback. And give us the opportunity to reasonably rectify in a reasonable amount of time, whatever your concern may be. Negative feedback does not solve anything. We are always willing to work things out. If we don’t know about it, we can’t fix it. So feel free to contact us. Thank you very much!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	NEC
MPN	UPG2035T5F-E2-A
Model	UPG2035T5F-E2-A QFN12
