Nema 34 Step Stepper Motor 1090oz 3axis&driver Cnc Kit Router Eu Germany Ship

US $430.00

Hamburg, Germany
Jan 29th

Open on mobile:
QR code

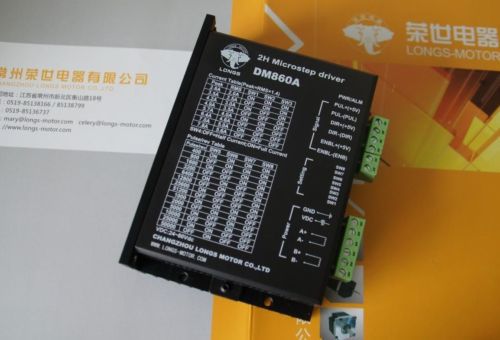

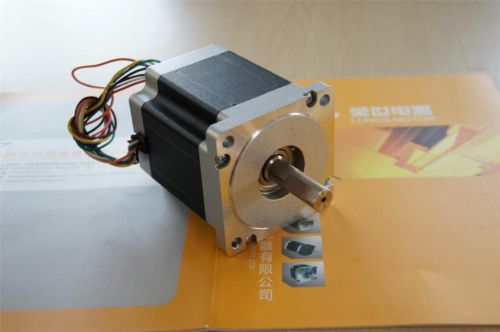

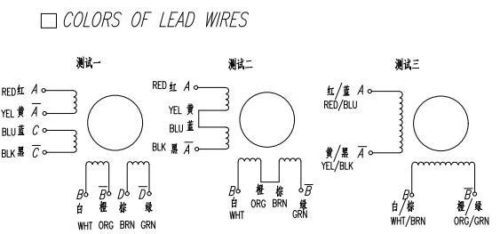

nema 34 step stepper motor 1090oz 3axis&driver cnc kit router FREE shipping from EU Germany,6 package left This item includes: 3pcs Nema 34HS9480 stepper motor 3pcs Stepper motor driver DM860A, peak 7.8A, 256 Micsteps 3pcs Power Supply 350Watts 60VDC 5.83A 1 pc Breakout Board & Parallel cable 1. Nema 34 step stepping stepper motor: Model Step angel ( ° ) Motor Length L(mm) Rate Voltage (V) Rate Current (A) Phase Resistance ( ? ) Phase Inductance (mH) Holding Torque (oz.in) Lead Wire (NO.) Rotor Inertia (kg. c?) Motor Weight (kg) 34HS9840 1.8 98 3.2 4.0 0.8 3.5 1090 8 1.7 3 2. step stepper motor driver: Introduction: DM860A is a type of two-phase hybrid stepping motor driver, the drive voltage of which is from 24VDC to 80VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 57mm to 110mm outside diameter and less than 8.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Holding torque when DM860A run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on. Features: 1. High performance, low price 2. Average current control, 2-phase sinusoidal output current drive 3. Supply voltage from 24VDC to 80VDC 4. Opto-isolated signal I/O 5. Overvoltage, under voltage, overcorrect, phase short circuit protection 6. 14 channels subdivision and automatic idle-current reduction 7. 8 channels output phase current setting 8. Offline command input terminal 9. Motor torque is related with speed, but not related with step/revolution 10. High start speed 11. High holding torque under high speed 3. Power Supply:The power is 350Watts, and the output voltage is 60VDC 5.83A. 4. Breakout Board Description: • Built in DB25 male connector. • DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17. • DB25 Input Pin: P10,P11,P12,P13,P15. • DB25 GND Pin: P18-P25. • Power supply: +5V DC. • Built in C-class Optical-coupler. • High quality with Surface-mount Tech. The products are used in CNC machine, Carver machine, Automation, Printer, Stage lighting, etc. *Distributor: In order to serve the world customers better, we need many distributors to cooperate. If you want to cooperate with our company, please contact me! We give discount for quantities buying, please contact me for the discount. Warranty: within 12 months free exchange for defective products. Contact: Email: peter@longs-motor.com skype: peterrivers0322@hotmail.com

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	longs motor
Country/Region of Manufacture	China
Model	nema 34
INDUSTRY	CNC,AUTOMATION,MACHIN-MAKING, MACHINE
