New 0.1 ~ 2.4ghz Rf Power Meter

US $32.88

  • ??, ???, China
  • Mar 29th
Open on mobile:
QR code

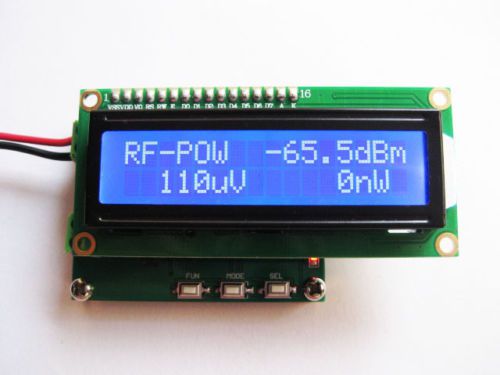

NEW 0.1 ~ 2.4GHz RF power meter I. Overview: HP360 is a RF power meter , the instrument through the key to complete the operation , the advantages: simple structure, easy to use, stable performance, reliable , high sensitivity and measurement speed and so on. Second, the application : ? RF power measurement ; ? instrument calibration ; Third, the technical parameters: No. Item Parameter Unit Remark 1 Measuring power range -65 ~ + 0 dBm ( external RF attenuator can be extended to 100dBm) 2 measuring 0.1 dBm power resolution 3 measurement frequency range 100 ~ 2400 MHz 4 measuring power 1nW ~ 1W 5 7 ~ 12 VDC operating voltage 6 Operating current <50 mA 7 Operating temperature -40 °C ~ 65 °C Celsius 8 Storage temperature -40 °C ~ 65 °C Celsius 9 size 55 * 45 * 10 mm length X width X height Fourth, the interface displays instructions : ( 1 ) Unit Description : dBm; ( 2 ) Key Description : FUN: function keys ; MODE: design -for- interface ; SEL: Self- plus key or minus key self ; 4.1 shows the measured data Interface display font : The first line of "RF-POW -65.5 dBm" The second line "110uV 0nW" Note: The values are displayed dBm signal , the input voltage, the input power . 4.2 , setting the RF power attenuation value Interface display font : The first line of "RF Attenuator" The second line "SUB 00.0dB" Key operation : FUN: function keys ; ( select plus or minus direction ) is displayed as a minus SUB , ADD is plus display . ( Long press FUN key to save the set dB value ) SEL: Self- plus key or self- minus key ; Note: Different external RF power attenuator , set the corresponding attenuation coefficient reads the correct power parameters . V. wiring P1 connection definition: No. Symbol Meaning 1 VDD positive power supply module (7V ~ 12V) 2 GND negative power supply module P2 connection definition: No. Symbol Meaning 1 RF radio frequency signal input 2 GND power supply negative Delivery Quantity : 1pcs x  NEW 0.1 ~ 2.4GHz RF power meter
