New (18) Mitsubishi Powerex Cm600hx-24a Igbtmod Nx-series Igbt Modules

US $1,440.00

Longmont, Colorado, United States
Jan 29th

Open on mobile:
QR code

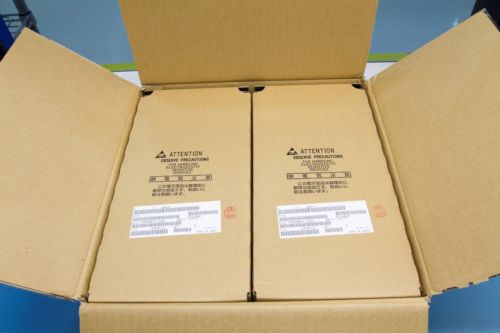

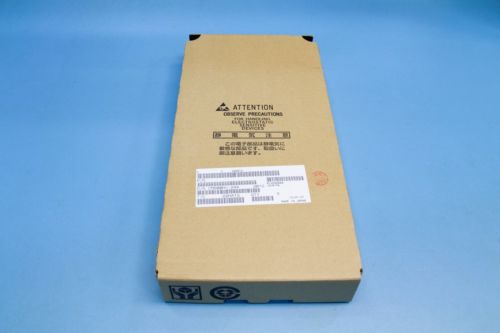

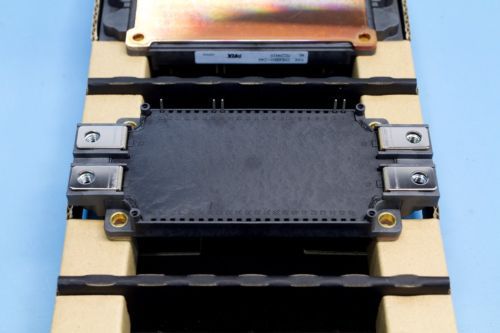

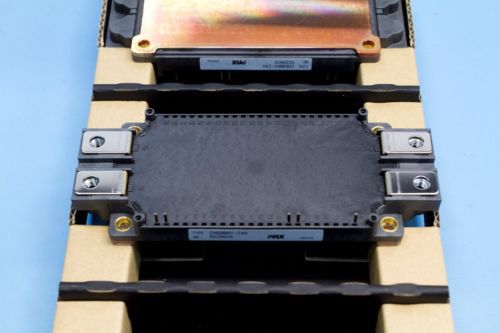

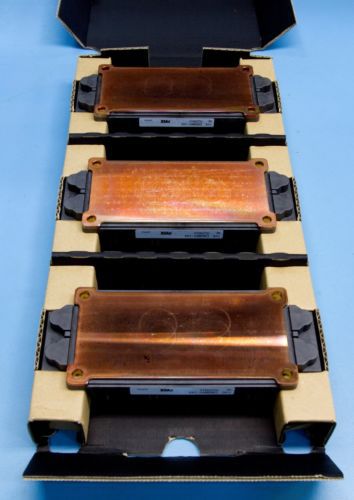

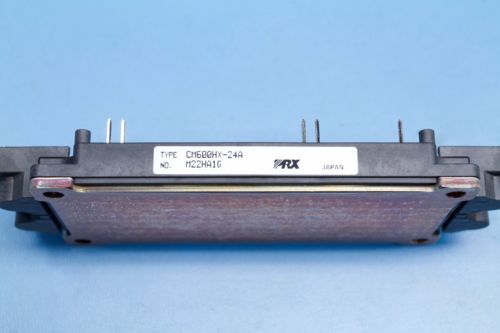

Up for sale are eighteen NEW Mitsubishi Powerex CM600HX-24A IGBTMOD™ IGBT Modules. These are new in box items. This auction is for eighteen IGBT's. If you would like less, please have a look at our other auctions. The NX series family of IGBTs features high power cycling capability and more than a ten-fold improvement in thermal cycle life in comparison to competing devices. The NX Series enhanced performance is achieved using high thermal conductivity Aluminum Nitride (AlN) ceramic to provide improved heat transfer from the power chips to the heat sink which results in significantly lower chip temperature (Tj). High elastic Sn-Ag-Cu solder and a proprietary technique ensure uniform solder thickness which results in less wire bond thermal fatigue failures.The NX series uses the fifth generation CSTBT (Carrier Stored Trench-Gate Bipolar Transistor) chip. The CSTBT chip offers lower losses compared to previous chip generations. Each module consists of one IGBT Transistor in a single configuration with a reverse connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. Features: Low Drive Power Low VCE(sat) Discrete Super-Fast Recovery Free-Wheel Diode Isolated Baseplate for Easy Heat Sinking Data specification sheets are attached in the pictures. Datasheet pictures attached. Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 600A Maximum Collector Dissipation (TC= 25°C) 3785W Vce(on) (Max) @ Vge, Ic 2.6V @ 15V, 600A Current - Collector Cutoff (Max) 1mA Input Capacitance (Cies) @ Vce 100nF @ 10V Input Standard NTC Thermistor Yes Mounting Type Chassis Mount Package / Case Module International shipping only with pre-approval. Do not buy without contacting us first.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Mitsubishi Electric
MPN	CM600HX-24A
Model	CM600HX-24A
Country/Region of Manufacture	Japan
