New 30ft Rs232 Ttl Hc-05 Wireless Bluetooth Transceiver Module Host Master Slave

US $5.99

ShenZhen, China
Jan 29th

Open on mobile:
QR code

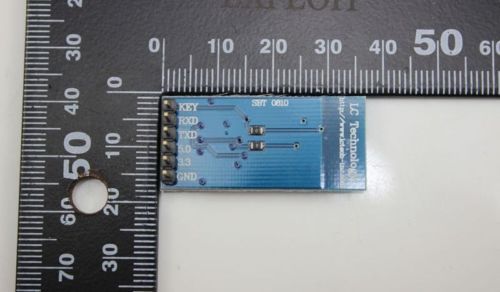

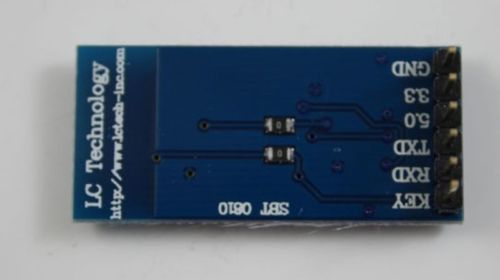

Payment Shipping Return Policy Feedback Contact us 30ft Wireless Bluetooth RF Transceiver Module serial RS232 TTL HC-05 for arduino Description Specification: Note:It's HC-05 Bluetooth module Slave and master two in one module this module can be set to a transmitter or receiver, transmitter could pairing with receiver , receiver and receiver or transmitter and transmitter can't communication between, receiver could pairing with computers and cell phone bluetooth , when buying, the default for receiver.initialization and read-write Item Name Bluetooth UART RS232 serial converter Module Operating Frequency Band 2.4GHz unlicensed ISM band Bluetooth Specification V2.0+EDR Output Power Class Class 2 Operating Voltage 3.3V Host Interface USB/UART Audio Interface None Flash Memory Size 8Mbit Dimensions 27.2mm x 12.8mm x 2.5mm Net Weight 9.6 g / 0.3 oz *support Master and Slave mode, modify by AT commander 1. CSR Bluetooth Chip Solution 2. Bluetooth Spec v2.0+EDR Compliant 3. Enhanced Data Rate (EDR) compliant with V2.0.E.2 of specification for both 2Mbps and 3Mbps modulation modes 4. Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support 5. Increadible samll size with 3.3V input, and RoHS Compliant 6. UART interface and with baudrate setup function 7. Support for 8Mbit External Flash Onboard 8. Support for 802.11Co-Existence The Bluetooth UART RS232 serial Converter Module can easily transfer the UART data through the wireless Bluetooth,without complex PCB layout or deep knowledge in the Bluetooth software stack, you can combine this bluetooth module with your system: MCU, ARM or DSP systems. SOC systems. Personal Digital Assistants (PDAs) Computer Accessories Other systems your want to use under bluetooth functions. Hardware: CSR solution, Bluetooth V2.0 protocol support AT commander support Master and Slave mode, modify by AT commander support 1200-115200 baudrate 3.3V single supply Size: core module: 28mm*15mm*2.35mm, whole module:35.33mm*19.6mm*3.7mm current: 30mA MAX can be used with all MCU by UART port 2 indicator lights Package Included: 1PCS*30ft Wireless Bluetooth RF Transceiver Module serial RS232 TTL HC-05 for arduino ++ Payment ++ ++ Shipping terms ++ ++ Return policy ++ ++ Feedback ++ ++ Contact us ++ We only accept payment through Paypal. we hope you can pay them within three days. Please kindly note that if, within 7 working days, we have not received your payment. we will send a request to the eBay Solution Center (this may cause us to cancel this transaction) But also there are some reasons,then please let us know. Item will be shipped by air mail. It will need about 11-23 Days to arrive because of some unexcept reasons on the long way. So if you have not receive the items within four weeks,please feel free to cantact us at first. We will solve that ASAP. Thanks for your patience. Country Delivery Time Working Days 5-7 8-11 12-14 15-19 20-22 >22 Calendar Days 5-9 10-15 16-20 21-25 26-30 >31 United States Rate of Delivery 5.1% 50.1% 29.6% 10.5% 4.7% Refund United Kingdom Rate of Delivery 9.9% 63.2% 19.1% 3.4% 4.4% Refund Australia Rate of Delivery 21.4% 50.0% 14.3% 7.2% 7.1% Refund France Rate of Delivery 10.5% 28.6% 43.8% 10.1% 7.0% Refund Germany Rate of Delivery 11.1% 22.2% 30.3% 20.9% 15.5% Refund Canada Rate of Delivery 0.0% 47.1% 31.4% 17.6% 3.9% Refund If you are not satisfied with the item, please contact with us. We will offer Full Refund to you when we receive your returned item. Any problem, please feel free to contact with us. If you are satisfied with the products,I expect you can leave us a positive feedback. If you have any problem or be not satisfied with them,please feel free to contact us,we will reply you within 24 hours. We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response. About item:For the functional products in our shop, we make sure that the functions are the same as description, but the actual color and shape may looks a little different from pictures because of the technical improvement and manufacturing variance. Please be advised before you bid.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	HC-05
Band	New
MPN	Arduino Bluetooth module
