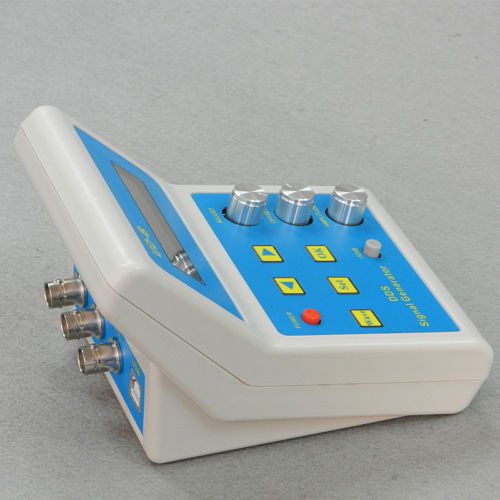

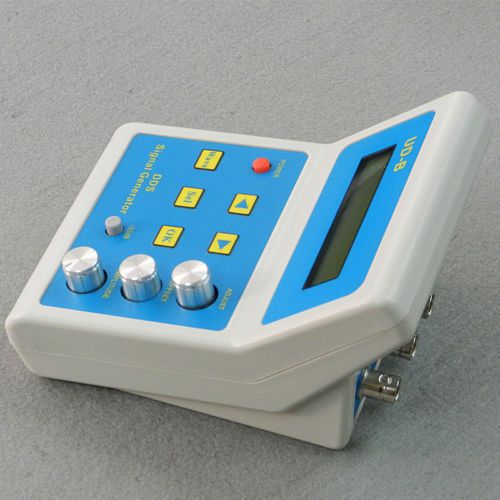

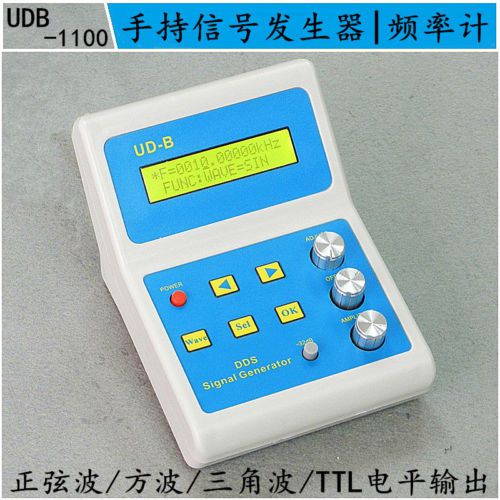

NEW 8MHz DDS signal generator Sine/Square/Triangle wavea sweep function and TTL, US $57.99 – Picture 0

NEW 8MHz DDS signal generator Sine/Square/Triangle wavea sweep function and TTL, US $57.99 – Picture 1

NEW 8MHz DDS signal generator Sine/Square/Triangle wavea sweep function and TTL, US $57.99 – Picture 2

NEW 8MHz DDS signal generator Sine/Square/Triangle wavea sweep function and TTL, US $57.99 – Picture 3

NEW 8MHz DDS signal generator Sine/Square/Triangle wavea sweep function and TTL, US $57.99 – Picture 4

New 8mhz Dds Signal Generator Sine/square/triangle Wavea Sweep Function And Ttl

US $57.99

???, ???, China
Feb 26th

Open on mobile:
QR code

NEW 8MHz DDS signal generator Sine/Square/Triangle wavea sweep function and TTL Main technology data 1.Signal Output function Output amplitude> = 9Vp-p (signal output, no load) (MAX) About 0.1Vp-p (MIN) Output impedance 50 omega +/- 10% (signal output) DC offset +/- 2.5V (no load) Display LCD1602 Frequency range 0.01Hz - 8MHz (UDB1108S) Resolution 0.01Hz (10mHz) Frequency Stability +/- 1x10-6 Frequency accuracy +/- 5x0-6 Sine wave distortion <= 0.8% (reference frequency is 1kHz) Trinagle linearity> = 98% (0.01Hz-10kHz) Rise and fall time of square wave <= 100ns Square Wave Duty range 1% -99% (digital control mode) 2.TTL Output function Frequency range 0.01Hz - 8MHz ( UDB1108S) Amplitude> 3Vp-p Fan Out> 20 TTL loads 3.COUNTER function Counter Range 0-4294967295 Frequency Meter Range 1Hz-60MHz Input Voltage Range 0.5Vp-p -20Vp-p 4.SWEEP function (as for UDB1002S series) Frequency range fM1 to fM2 Sweep time 1s-99s 5.Others function Save and Load Parameter M0-M9 (M0: default load) 6.Shipping list DDS signal generator x1 DC5V power x1 Q9-clip cord x1 Payment Policy: We ONLY accepted PayPal payment. shipping & time: Generally, delivery time is 10-20 business days to USA, United Kingdom, Australia and 15-30 days to most other countries. Items will be shipped within 1 business day on payment received. Delivery time depends on destination and other factors, it may takes up to 30 business days. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Returns Policy: All sales come with us 14-day warranty. Return items must not be used or have any sign of abuse or intentional damage. Buyer is responsible for all return shipping charges. We reserve the right not to refund S&H when the item has been posted. Contact us: If you have any questions,Please contact with us via eBay message or our customer service e-mail. You may expect to receive a response to your inquiry within 24 hours. (Excluding Weekends and Public Holidays) Feedback: Dear buyers, we appreciate your business, if you are satisfied with our service, please leave us a positive feedback . Please email us before leaving any 1 or 2 ratings, negative feedback or open any dispute. We understand the concerns and frustrations you might have, and will do our endeavor to resolve the issues. Please give us the opportunity to resolve any problem. thank you !

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
