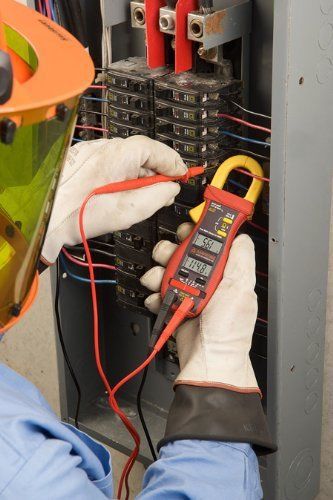

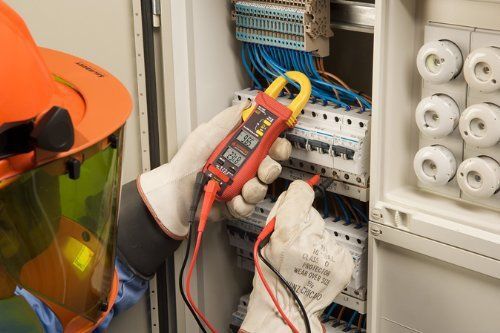

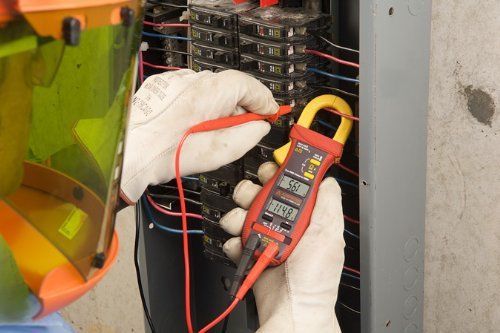

Click any picture below to enlarge it. Product Features Digital clamp meter measures alternating current (AC) to 600 amp, direct current (DC) voltage and AC voltage to 600 volts (V), DC and AC microcurrent to 2,000 microamp, capacitance to 3,000 microfarads, resistance to 40 megaohms, and frequency to 100 kHz True RMS (root mean square) sensing meter provides accurate readings when measuring linear or non-linear loads, where the current or voltage has a sinusoidal or nonsinusoidal waveform Transformer clamp with 1" (26 mm) jaw opening has jaws that are slimmer than standard clamp jaws, for improved access to tight areas, and measures current without touching or interrupting the circuit K-type thermocouple probe measures temperature Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category III installations up to 600V Description The Amprobe ACD-14-Plus TRMS digital clamp meter with included temperature probe and dual display is a true RMS (root mean square) sensing, auto-ranging multimeter for measuring current, voltage, microamp current, capacitance, resistance, and frequency in electrical testing and heating, ventilation, and air conditioning (HVAC) applications. It has a transformer clamp that measures alternating current (AC) to 600 amp. The meter comes with detachable test leads that measure AC voltage and direct current (DC) voltage to 600 volts (V), AC and DC microcurrent to 2,000 microamp, capacitance to 3,000 microfarads, resistance to 40 megaohms, and frequency to 100 kHz. The clamp has two 0.4" (10 mm) thick jaws that are slimmer than standard clamp jaws for access to tight areas. The jaws can close around electrical conductors up to 1" (26 mm) in diameter to measure current without touching or interrupting the circuit. The meter comes with a K-type thermocouple probe for measuring temperature. The microamp feature has a 0.1 microamp resolution for measuring current changes in flame detector applications. The dual liquid crystal display (LCD) shows current and voltage readings simultaneously. The maximum reading mode displays the highest reading in a session to track a sudden increase in measurements. An audible continuity sensor confirms that the circuit conducts electricity, and a diode test detects whether the circuit’s diodes work properly. The hold function keeps the reading on the display, even after the meter is disconnected. A relative zero mode stores a reading in memory to use as a zero point for subsequent readings, allowing for quick comparison of multiple readings. The unit automatically turns off after 30 minutes of non-use to conserve battery life, and a low-battery indicator signals when the meter's batteries need to be replaced. A finger guard on the body of the meter helps protect fingers from shock. This true RMS (root mean square) sensing meter provides accurate readings when measuring linear loads, such as standard induction motors and incandescent lights, where the current or voltage has a sinusoidal waveform, or non-linear loads, such as electronic devices or motors, where the current or voltage has a non-sinusoidal waveform. It is an auto-ranging multimeter and automatically selects the correct operating range for the property being measured. The meter has a 4,000-count resolution, meaning that it can display up to 3,999 units (3-3/4 digits) before the operating range needs to be changed. It meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category III installations up to 600V, which covers items used with enclosed building circuit installations (such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply. The unit has a test probe holder and comes with a soft vinyl carrying case with built-in probe storage. Specifications Maximum alternating current (AC) input 600 amp Maximum AC voltage input 600 volts (V) Maximum direct current (DC) voltage input 600V Maximum resistance detected 40.00 megaohms Maximum capacitance detected 3,000 microfarads Maximum frequency detected 100 kilohertz (kHz) Maximum AC microamp input 2,000 microamp Maximum DC microamp input 2,000 microamp Temperature measurement range -4 to 999 degrees Fahrenheit (F)/-20 to 537 degrees Celsius (C) Power supply 3V IEC-CR2032 coin batteries (two, installed) Standards met and certifications European Normal (EN); International Electrotechnical Commission (IEC) and EN safety standard 61010-1; European Conformity (CE); Underwriters Laboratories (UL) Weight 0.5 lb./207 g Meter dimensions 7.4 x 2.5 x 1.3 inches/190 x 63 x 32 mm (H x W x D) H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. Clamp meters (also called clamp-on meters) measure electrical current without cutting through wires or touching or interrupting the electrical circuit. Available in handheld or benchtop models, clamp meters diagnose problems in electrical equipment, wiring, and power supplies. The meter's current clamp has two jaws that fit around a conductor to take measurements. All clamp meters test for current. Some come with test leads and inputs for measuring voltage, capacitance, and resistance. They display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages determine meter choice. Safety ratings are based on the International Electrotechnical Commission's (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating. Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA. What’s in the Box?ACD-14 Plus TRMS digital clamp multimeter Test lead set K-type thermocouple probe (2) 3V coin batteries (installed) Soft vinyl carrying case Instructions Shipping Shipping is free to street addresses in the lower 48 states. We do not ship to APO/PO boxes. All international shipping is done through the eBay global shipping program. Delivery Times Domestic Free Shipping is Expedited. We ship from many different locations depending on the product you ordered and your delivery address. We ship most items within 24 hours of payment, Monday through Friday. The average time in transit is only two days for most orders. Occasionally orders may take longer. If you have specific deadlines, please email us before purchasing. International order delivery times vary greatly. Frequently Asked Questions Can you ship to my country? Only if you can checkout through eBay can we ship to your country. What is the expiration date on this item? All of our items expiration date is sufficiently in the future. We do not sell items that are expired or rapidly approaching expiration. Our items are warehouse and the exact expiration date of the item you receive can not be explicitly guaranteed. How much is shipping to my country? We don't know automatically. All International shipping is done through the eBay global shipping program. The only way to get the final cost is to go through the checkout and enter your address. Can you cancel my order? Probably not. To ensure that all of our orders go out as soon as possible we use an automated system. Our shipping facilities work 24 hours a day to process orders with very little human intervention. At any given time there are as many as 5000 orders in process, so tracking down and stopping an individual item is generally not possible. Please be sure you want the item before checking out. Does this item come with or do X? Feel free to ask us, but don't be surprised if our support representative isn't intimately familiar with the item. We purchase and ship a very wide variety of items and aren't able to educate all of our representatives on all aspects of every listing. In most cases the only information they will have available is what is on the product's listing page. Can you ship this item to a different address? Unfortunately not, our automated system as well as eBay and Paypal regulations require us to ship to the address listed with the eBay purchase. Does this electrical appliance work on US voltage? Yes, all our items are designed for US voltage and plugs, as such they will require voltage converter and plug adapter for your country. Return Policy We offer a 14 day return policy for almost all items. Consumable items, such as food or health and beauty products are not able to be returned, as well as some other items. Electronic items must be unopened. Return shipping is the buyers responsibility and a restocking fee may apply. When possible we try to avoid charging a restocking fee. If an item arrives damaged or defective please document it and notify us immediately. Trademark and Copyright Infringement Concerns All of our listings and their contents is vetted approved by our own as well as our upstream distributors legal departments. We take extreme care to not violate any trademarks or copyrights and assure that our listings are not in any violation. If, however, you feel that this is not the case, please contact us through eBay before filing any VERO complaints. If a VERO complaint is filed against our listing we will file a counter-notice and should any damages occur based on the false VERO claim we will be forced to seek compensatory as well as punitive damages.
