New At824 W/software Lcr L C R Meter Touch Screen Lcd Usb 100/120hz 1khz

US $210.90

HUI ZHOU, China
Jan 29th

Open on mobile:
QR code

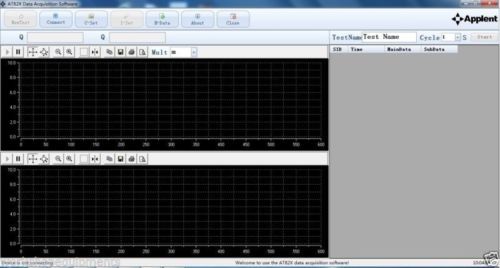

New AT824 W/Software LCR L C R Meter Touch Screen LCD USB 100/120Hz 1KHz Description AT824 W/Software LCR L C R Meter Touch Screen LCD USB 100/120Hz 1K Hz Description Overview of Handheld LCR Meter: This series handheld LCR Digital electric bridge adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. The handheld LCR digital meter have the highest configuration. With the highest frequency of 100Khz, constant 100? source internal resistance, 1Vrms measurement voltage level, and 0.2% accuracy, make the meters have the excellent performance of both desktop instrument and portability of handheld. 1KHZ LCR Meter: Specifications: Parameters L, C, R, Z Monitoring D, Q, ?r, ?d, X, ESR Accuracy 0.20% Frequency 100Hz, 120Hz, 1kHz Display Range L: 0.01?H-9999H; C: 0.01pF - 9999?F; R,Z: 0.0001? - 99.99M? ; D,Q: 0.0001 – 9999; ?(deg): -179.99° -179.99°; ?(rad): -3.1416– 3.1416; ?%: -9999%~9999% Source Resistance 100? Range Automatic and manual Max Reading Main parameters: 49999 Sub parameters: 49999 Signal Level 1Vrms Speed 4 times/second, 1.5 times/second Comparator One group record, main parameters compare Correction Open and short, sweep frequency Interface Build-in Mini-USB interface (virtual serial), charging interface Others 2.8 inches true color 16M Touch Screen TFT-LCD display; keypad lock and data hold function; USB communication, compatible SCPI order set; Switch in both English and Chinese; adjustable back light; automatic power off; General Features: Adapter Input: 100 – 240 V 50/60Hz 0.35A Output: 9V 1A DC Battery parameters 8.4V, Li, 1400mAh rechargeable battery, Charging Time single continuous charging time: Max 200Min Working Time Light 30%, over 14 hours, Light 50% over 12 hours, light 100%, over 9 hours Dimension & Weight 90 (width)*190 (height)*31(depth) mm; Gross Weight: 400g Accessories Four-terminal Kelvin Clips; DC Adapter; Short-circuit slice; Carrying Case; Li battery; Mini-USB communication cable; Four-terminal test probe; Data Acquisition Software payment We accept payment through PAYPAL only. Shipping 1. Items will be shipped within 3days upon the receipt of payment. 2. Please verify your address when checkout from PAYPAL. We will ship item to your PAYPAL address. If other address, please advise us by eBay or E-mail. 3. The estimated delivery time is 10~20 workings days to Asian, USA, AU, UK, most western European countries; 15~30 workings days to most other countries. Delivery maybe delayed due to public holiday. If it's needed urgently, we can send via DHL with competitive agent freight cost. Please kindly contact us before payment. 4. Buyer will be responsible for the custom duty and local import taxes if incurred. Our Commitment 1. We provide 12 months warranty. 2. In case of the item malfunctioned under proper usage per instruction manual during warranty period, please kindly contact us and return it at your shipping cost for a replacement. We will resend you a replacement at our shipping cost. 3. If you have NOT received item in 40 days, we will check it with post office, and then resend or refund any missing item. Contact 1. If you are not satisfied, please contact us to resolve any issues. Please do NOT leave negative feedback without asking for help. We work hard to make sure EVERY CUSTOMER 100% satisfaction. 2. For any inquiries, issues or assistance, please contact us via eBay or leave your mail address. 3. All emails will be answered within 2 working days. If you do not receive our reply, please kindly re-send your email and we will reply to you as soon as possible. Our aim is to exceed our customer’s expectations in quality, delivery and cost through continuous improvement and customer interaction. inkFrog Analytics eBay Cross Border Trade powered by Channel Effect eBay Cross Border Trade powered by Channel Effect

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	AT
Parameters:L,C,R,Z,D,Q,?(deg),?(rad)ESR	Accuracy:0.2%
Model	AT824
Frequency:100Hz,120Hz,1kHz	Source Resistance :100?
Country/Region of Manufacture	China
Signal Level:1Vrms	Speed :4 times/second,1.5 times/second
