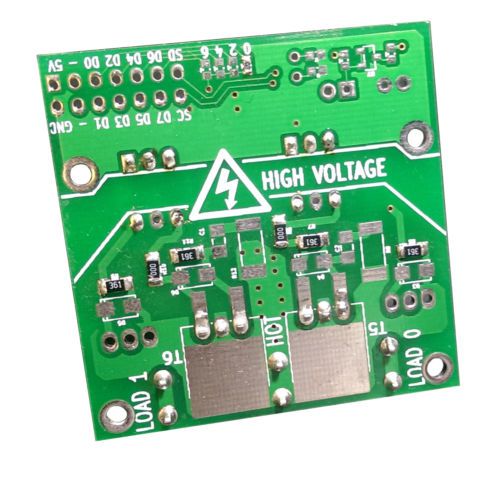

New Dual channel optically isolated AC Solid State Relay - MCU - DIY - arduino, US $35.00 – Picture 0
New Dual channel optically isolated AC Solid State Relay - MCU - DIY - arduino, US $35.00 – Picture 1
New Dual channel optically isolated AC Solid State Relay - MCU - DIY - arduino, US $35.00 – Picture 0
New Dual channel optically isolated AC Solid State Relay - MCU - DIY - arduino, US $35.00 – Picture 1

New Dual Channel Optically Isolated Ac Solid State Relay - Mcu - Diy - Arduino

US $35.00

  • Santa Clara, California, United States
  • Jan 29th
Open on mobile:
QR code
Brand new GGLABS SSR01. Dual channel solid state relay for AC loads. Allow to control 2 AC loads up to 12A from any microcontroller using 2 GPIOs. Optically isolated inputs for safety and easy interfacing with any microcontroller. Board features MOC3063 zero-cross optocouplers, BTA212X-600 (12A 600V isolated package) TRIACs and green LED status indication for each channel. External connections use 250mils FASTON blades for the AC load and 100mil pitch header (populated upon request) for the MCU. Depending on the user application a heatsink (not included) might be required to avoid damaging the TRIACs (send me a message if unsure). Designed and assembled in USA with all new components. Documentation and support available at gglabs.us 90 days warranty and 14 days money back (less shipping cost) if not satisfied WARNING: Parts of this circuit are not isolated from earth ground and contain potentially lethal voltages. Avoid touching any part of the circuit when powered on. International buyers are welcome but please note that free shipping applies only to destinations in the USA.
