New Electro-craft Tpp11m Nema11 Stepper Motor & Us Digital Encoder (e) - Cnc Diy

US $2400

Demopolis, Alabama, United States
Jan 29th

Open on mobile:
QR code

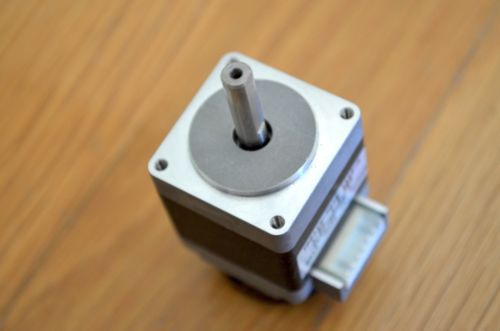

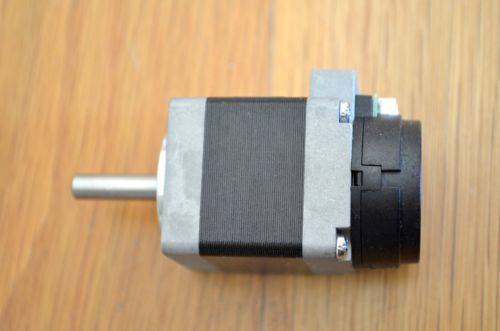

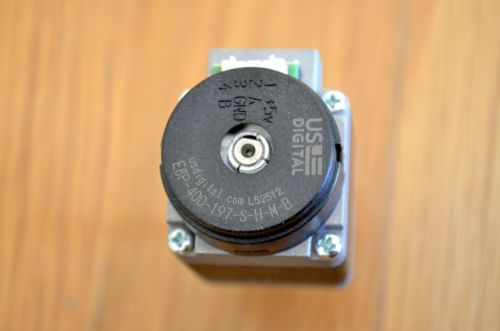

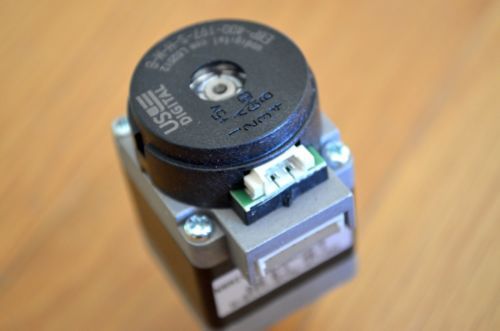

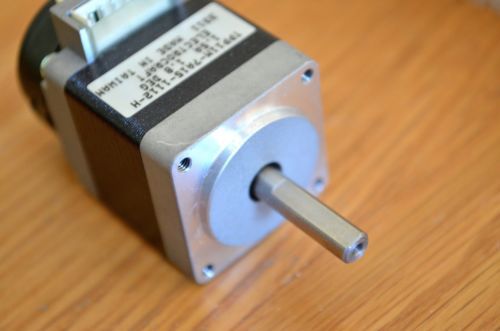

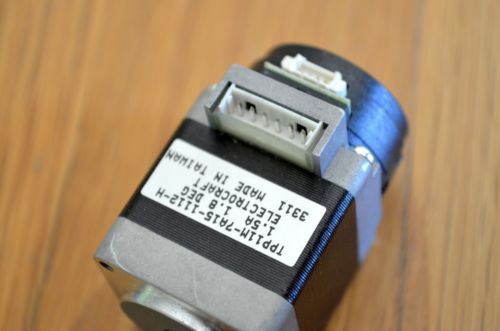

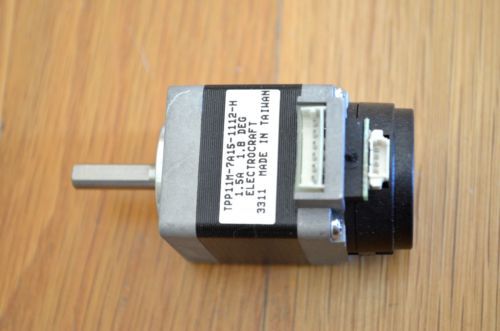

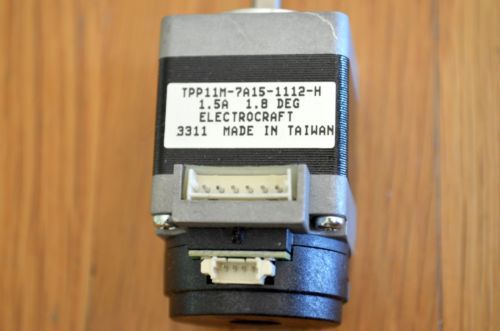

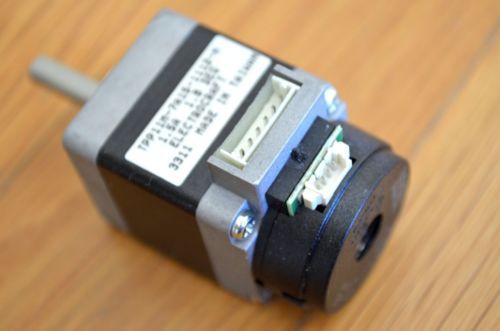

New Electro-Craft TPP11M Stepper Motor w/ US Digital E8P-400-197-S-H-M-B Encoder Size Nema11 Motor, 1.5 amp, 1.8 deg/step, 400cpr Optical Incremental Encoder *Auction price is for 1 motor, I have many available* **I also have other Electro-Craft motors and drivers , please see my other Ebay listings for more info** This auction is for a new Electro-Craft TPP11M dual-shaft stepper motor with US Digital encoder, in perfect condition. The motor is a size nema11, 1.8 deg/step (200 steps/rev). The encoder is a 2-channel 400cpr (1,600 count/rev). The front motor shaft is 5mm dia. x 17mm long w/ flat. Electro-Craft TPP11M-&a15-1112-H Spec's: TPP11M : TorquePower™ Plus Stepper Motor Size: Nema 11, 1.8° Holding Torque: up to 18 oz-in or 13 Ncm Speed: up to 140 RPS Quiet. Durable. This extremely quiet stepper is made with ball-bearings. Only available in metric configuration, sizes in metric units and has a holding torque up to 18 oz-in with a step angle accuracy of ±5%. TPP11M Speed / Torque Curves TPP11M Mechanical / Winding Data TPP11M Bi-Polar Stack Size Imperial Models TPP11M-10A TPP11M-14A TPP11M-18A Metric Models TPP11MM-7A TPP11MM-10A TPP11MM-13A Holding Torque Bi-Polar (oz-in) 9.5 13.7 18.0 Holding Torque Bi-Polar (Ncm) 6.71 9.67 12.71 Length (inches) 1.2 1.6 2.0 Length (cm) 3.0 4.1 5.1 Width (inches) 1.1 1.1 1.1 Width (cm) 2.8 2.8 2.8 Weight (oz) 4.0 5.1 7.0 Weight (Kg) 0.1 0.1 0.2 Step Angle (°/step) 1.8 1.8 1.8 Number Leads 4 4 4 TPP11M Uni-Polar Stack Size Imperial Models TPP11M-10V TPP11M-14V TPP11M-18V Metric Models TPP11MM-7V TPP11MM-10V TPP11MM-13V Holding Torque Uni-Polar (oz-in) 6.6 9.6 13.0 Holding Torque Uni-Polar (Ncm) 4.66 6.78 9.18 Length (inches) 1.2 1.6 2.0 Length (cm) 3.0 4.1 5.1 Width (inches) 1.1 1.1 1.1 Width (cm) 2.8 2.8 2.8 Weight (oz) 4.0 5.1 7.0 Weight (Kg) 0.1 0.1 0.2 Step Angle (°/step) 1.8 1.8 1.8 Number Leads 6 6 6 TPP11M Bi-Polar Windings Metric Models 7A05 7A10 7A15 10A05 10A10 10A15 13A05 13A10 13A15 Current (A/Phase) 0.5 1.0 1.5 0.5 1.0 1.5 0.5 1.0 1.5 Voltage (V/Phase) 5.0 2.5 1.7 6.2 3.1 2.1 8.2 4.1 2.7 Resistance (R/Phase) 10.0 2.5 1.1 12.4 3.1 1.4 16.4 4.1 1.8 Inductance (mH) 6.8 1.5 0.7 9.1 2.6 1.0 9.8 2.6 1.2 TPP11M Uni-Polar Windings Metric Models 7V14 7V27 10V17 10V33 13V22 13V43 Current Uni-Polar (A/Phase) 1.8 0.9 1.8 0.9 1.8 0.9 Voltage Uni-Polar (V/Phase) 1.4 2.7 1.7 3.3 2.2 4.4 Resistance Uni-Polar (R/Phase) 0.7 2.8 0.9 3.4 1.2 4.6 Inductance Uni-Polar (mH) 0.2 1.0 0.4 1.5 0.4 1.7 Current Bi-Polar (A/Phase) 1.3 0.7 1.3 0.7 1.3 0.7 Voltage Bi-Polar (V/Phase) 2.0 3.8 2.4 4.6 3.2 6.2 Resistance Bi-Polar (R/Phase) 1.5 5.6 1.8 6.8 2.4 9.2 Inductance Bi-Polar (mH) 0.9 4.0 1.5 5.8 1.7 6.7 TPP11M Outline Drawing See websites below for more info: http://www.electrocraft.com/products/stepper/TPP11M/ http://www.usdigital.com/products/e8p Shipping rate applies to US only (includes Alaska & Hawaii). International orders will be shipped via Ebay's 'Global Shipping Program' , please click on the 'Shipping and Payments' tab above and select your country from the drop-down menu to get a shipping quote from Ebay. If your country is not listed then please contact me for a shipping quote before placing a bid. (e)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	ElectroCraft Electro-Craft, US Digital
MPN	TPP11M-7A15-1112-H (Motor) , E8P-400-197-S-H-M-B
Model	TPP11M (Motor), E8P (Encoder)
