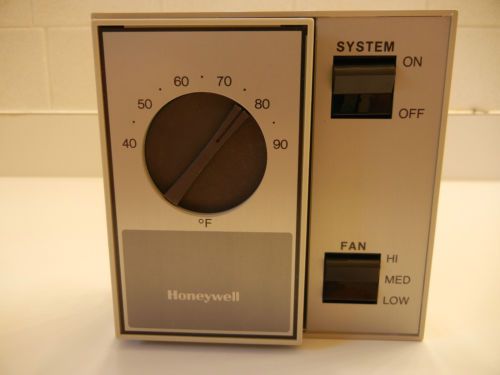

New Honeywell T694a2002 Fan Coil Thermostat (40f To 90f)*nla/obsolete

US $54.50

Winter Park, Florida, United States
Jan 29th

Open on mobile:
QR code

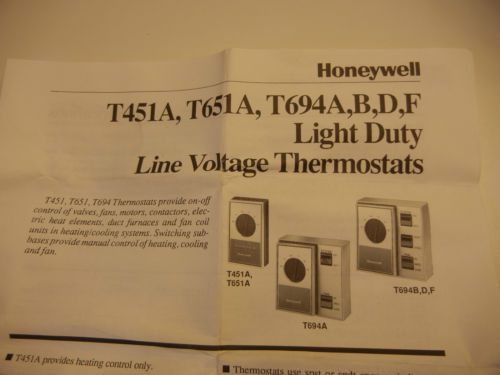

[PDF] 63-2051 - T451A, T651A, T694A,B,D,F Light Duty Line ...https://customer.honeywell.com/resources/techlit/TechLitDocuments/... I HAVE SEVERAL OF THESE IF YOU NEED MORE THAN ONE. THIS ITEM IS NLA AT MANY VENDOR'S SO IF YOU NEED MORE LET ME KNOW. 1 68-0111 T451A,T651A,T694A,B,D,F,J Light Duty Line Voltage Thermostats Form 63-2051—4 Addendum The purpose of this addendum to form 63-2051—4 is to add model T694J to the existing T694 family of Line Voltage Thermostats. The T694J provides heat only con- trol with HI-OFF-LO fan switching. On page 1: • In the title, add a J following the F in the T694 series. • Add the T694J photo (shown at right) to the three photos in the masthead. • In the third bulleted feature, add a J following the F to include the J model in theT694 series that are supplied with the switching subbase to provide manual control of the heating, cooling and fan. On page 2: • At the end of the list of Standard Models, add the following entry: Model Number Application System Switch Changeover Switch Fan Switch T694J2002 Heating only. — — HI-OFF-LO OFF position breaks all power to the fan. On page 5: • At the bottom of the first column, in both the para- graph header and the first sentence, add a J following the F to include the J model in the T694 series that mount vertically on a 2 x 4 in. or 4 x 4 in. junction box. • At the end of step 1, change the Fig. reference from Figs. 6-9 to Figs. 6-10 to include Fig.10, the system hookup being added for the T694J. On page 6: • Add the T694J figure title, Fig. 10—T694J with positive-off fan position, and the T694J wiring diagram. Fig. 10—T694J with positive-off fan position, G.H. • 10-93 • Printed in Mexico • ©Honeywell Inc. 1993 • Form No. 63-A2051—4 Home and Building Control Home and Building Control Honeywell Inc. Honeywell Limited—Honeywell Limitee 1985 Douglas Drive North 740 Ellesmere Road Golden Valley, MN 55422 Scarborough, Ontario M1P 2V9 L1 (HOT) L2 1 HIGH OFF LO HEAT COOL FAN MOTOR BRN RED STAT FAN BLK 1 POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED. M7007 T694J T694J

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	HONEYWELL
MPN	T694A2002
Model	T694A2002
Country/Region of Manufacture	Mexico
UPC	0 85267 09105 3
