New Leviton Motor Starter Switch Disconnect Rated Short Toggle 40a 600v Ms403-ds

US $64.99

Jamestown, New York, United States
Jan 29th

Open on mobile:
QR code

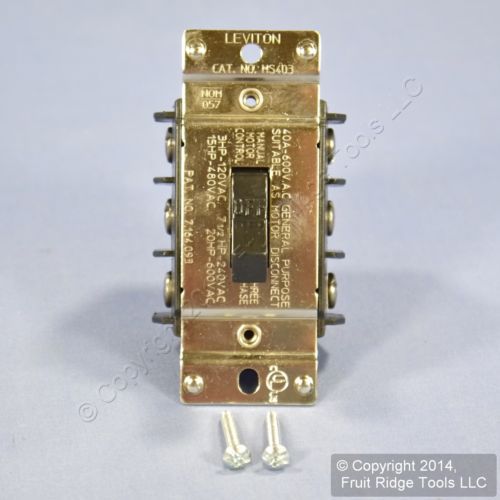

Fruit Ridge Tools, LLC Our eBay Store Contact Us Add to Favorite Sellers New Leviton Motor Starter Switch Disconnect Rated Short Toggle 40A 600V MS403-DS Product Details Quantity in Lot: 1 Brand: Leviton Part Number: MS403-DS Color: Black Type: Toggle Switch Switch Configuration: Three-Pole, Single-Throw Additional Features (if applicable): Manual Motor Starter Amperage: 40A Voltage: 600V AC Horsepower Rating: 3HP@120V, 7.5HP@240V, 15HP@480V, 20HP@600V Grade: Industrial Specification Terminal Type(s): Back & Side Wired Ground: None Leviton MS403-DS manual non-reversing motor starting switch without overload protection. Short toggle design; disconnect rated. Industrial Specification Grade, back & side wired, 3-pole, single throw, non-grounding, 40A 3-phase 600V Max. It is rated: 3HP@120VAC; 7.5HP@240VAC; 15HP@480VAC; and 20HP@600VAC.?Each is individually packaged. Features include: Positive-contact design enhances fast-make/slow-break Silver-alloy contacts for maximum conductivity and service life Back and side wire terminals accept up to #10 AWG solid copper wire. For stranded #8 AWG wire, remove terminal clamp and use ring terminal Oversized #10 triple-combination terminal screws are vibration resistant All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing Insulating barrier between terminals provide isolation from each phase Nickel-plated brass mounting yoke for superior corrosion resistance Large toggle provides positive actuation, even with gloved hand Compatible accessories:Leviton N13NC Type 1 Steel Enclosure Leviton N33NC Type 3R Enclosure Leviton 84001-LOK Stainless Steel Lockout Wallplate Leviton N13NC-T Type 1 Enclosure w/Thermoplastic Cover This is New Old Stock and is returnable for any reason. (SKU # LMS403-DS-EA; Weight: 0.45 lbs.) Need Wallplates? Click here to see color matching wallplates for this device. Need a different device? Click on the following links to see larger lots and related products: Switches GFCI Devices Dimmers Decora Items Receptacles Wallplates Locking Plugs & Receptacles

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Leviton
MPN	MS403-DS
