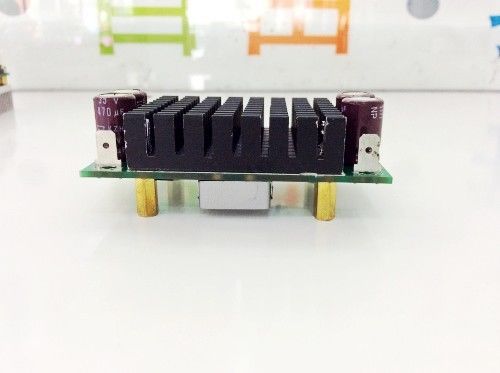

New LTC3780 DC 5V-32V to 1V-30V 10A Automatic Step Up/Down Regulator Charging, US $520 – Picture 0

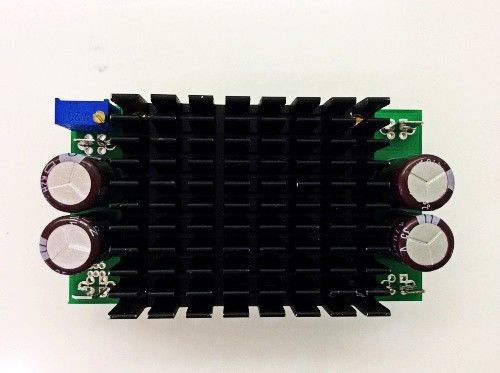

New LTC3780 DC 5V-32V to 1V-30V 10A Automatic Step Up/Down Regulator Charging, US $520 – Picture 1

New LTC3780 DC 5V-32V to 1V-30V 10A Automatic Step Up/Down Regulator Charging, US $520 – Picture 2

New Ltc3780 Dc 5v-32v To 1v-30v 10a Automatic Step Up/down Regulator Charging

US $520

Guangzhou , China
Jun 9th

Open on mobile:
QR code

New LTC3780 DC 5V-32V to 1V-30V 10A Automatic Step Up/Down Regulator Charging Description: Module size: 72 * 40 * 25mm (excluding pillars, do not send pillars) 2. Linear Technology LTC3780 synchronous rectifier buck automatic control program 3, the input voltage 5-32V 4, the input current is rated 15A, the largest of more than 20A, please do not exceed 20A prolonged use. 5, the output voltage regulation: 1-24V / 28V (28V filter capacitor relative handicap, default hair 24V output) 6, the output current: depending on the efficiency of the use of the recommendations within the 10A, 20A peak up above. 7, module efficiency: operating current 10A or less, the pressure within the basic double the efficiency of more than 96%, 4 milliohms inductance, 2.1 milliohms MOS, module efficiency under normal operating conditions not think low is low. 8, the ripple voltage load of about 40mV, with load after 30-60mV, the new CLC filter, the filter effect many relatively well, within a 16V output selection of solid capacitors better! 9, short circuit, undervoltage overcurrent protection Needless to say these are the basic functions. 1, high output current: output current up to 10A, a maximum current of 20A. 2, an optional low load current pattern: the inductor current is not continuous, around-load in this mode current 1mA or less, the disadvantage is that the response is relatively narrowly-mode voltage, the compensation parameters can not meet the full range of output stability. The default power inductor current continuous mode. Standby current may 5-20MA. Required please contact. 3, high efficiency: synchronous rectification mode, 2.1mΩ on-resistance MOS tube, 100W output power efficiency up to 96% higher output efficiency low dropout. 4, high reliability: the controller 36V voltage, MOS tube 30V voltage, the larger design margin to ensure the reliability of work within 24V. Input and output are used TDK ceramic capacitors and low ESR electrolytic capacitors, SMD components have three paint spraying, can effectively improve the ability of anti-severe environment, a large bottom fins, cooling effect. package : 1pc module as picture show We only accept Paypal in Ebay. If you want to pay via other method please contact us. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to biding Item will be shipped within 24 hours on payment received from Hong Kong using Airmail. Delivery time depends on destination and other factors, it may takes up to 30 business days. Optionally, Express Shipments with tracking service via EMS/DHL/UPS with a quoted delivery time of 5 to 7 business days is also available Here is the estimated time for your reference only: The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding You feedback is very important to us, please let us know before leaving any negative feedback or open any disputes on Paypal, please give me an opportunity to resolve any problems and we will try our best to satisfy your requirement. If the item is defective, please let me know as soon as possible after receive the items. The item will be returned its original condition, in order to get it refunded and replaced (please inquire us the returning address before you ship it back.) . Buyer is responsible for shipping costs when shipping products.
