New Mclaughlin Verifier G2 Receiver/transmitter Digital Utility Line Locator Kit

US $4200

Ocala, Florida, United States
Mar 2nd

Open on mobile:
QR code

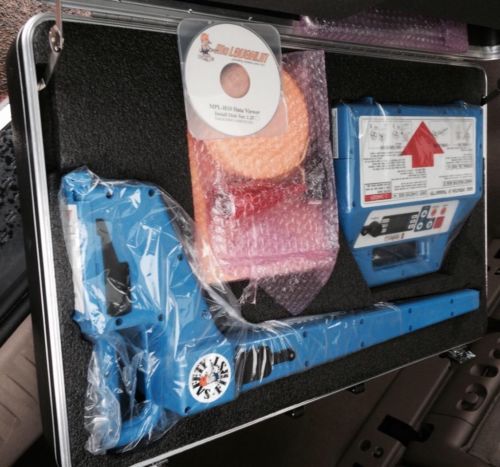

WELCOME TO THIS AUCTION I HAVE FOR SELL THIS BRAND NEW McLaughlin VERIFIER G2 DIGITAL RECEIVER AND TRANSMITTER PIPE AND CABLE LOCATOR KIT ,THIS ITEM WILL SELL AS IT,WHAT YOU SEE IN THE PICTURE IS WHAT YOU WILL RECEIVE.IM NOT A DEALER THERE FOR THERE IS NO WARRANTY IN THIS UNIT. The Verifier G2 is an easy-to-use productive utility locator. It uses Smart Technology along with improved noise reduction to achieve extreme accuracy in direct connection, clamping, inductive and passive modes. SPECIFICATIONS Receiver Specifications Active Frequencies 38kHz: 38kHz±2% 9.5kHz: 9.5kHz±2% 80kHz: 78.125kHz±2% 512kHz: 512kHz±2% Passive Radio Radio: 9k to 33kHz Passive Power 50/60Hz: 5th harmonic (50Hz or 60Hz user selectable) 100/120Hz: 3rd harmonic (100Hz or 120Hz user selectable Battery Type 8 Alkaline LR6 “AA” Battery Life 20 hours Battery Status Continuous indication Power Save Function Automatically power off after 5 minutes of inactivity Visual Indication LCD: Bar graph, digital number and character, include backlight Depth Range Line: 0 to 5m/16ft (0-5m/0-16ft. mode) 0 to 10m/30ft (0-5m/0-30ft. mode) Probe: 0 to 10m/30ft. Depth Readout Unit Meter/ft. & inch Depth Accuracy* 2.0m/6.5ft: ±2.5% 3.0m/10ft: ±5% 5.0m/16.5ft: ±10% Current Value Current value flowing on the conductor is displayed for line identity in milli-amps Audio Output Internal speaker (200 to 5kHz), Earphone (optional) Data Logging Memorized 400 points of the depth/current measurement data Interface D-sub 9-pin connector (RS-232C) Operating Temperature -20°C to 50°C/-4°F to 122F° Dimensions 680x140x290mm (26.8”x5.5”x11.4”) Weight 2.1kg/4.7lbs approx. including eight batteries Notes *1—locators are tested in the model field conditions with no adjacent signals. Always excavate the line with non-destructive means before digging *2—Optional cable is necessary to read the logging data Transmitter Specifications Output Frequencies 38kHz: 38kHz±0.02% 9.5kHz: 9.5kHz±0.02% 80kHz: 78.125±0.02% 512kHz: 9.5kHz/38kHz±0.02% Output Power 5 watts max. /80kHz: 1 watts max. Battery Type Eight alkaline LR20 “D” Battery Life Direct mode: 50 hours (output 4mA, 20°C/68°F) Battery Status Low battery indication and press key readout Visual Indication LCD: bar graph & digital number, includes backlight Audio Indication Internal speaker: alarm, beeping sounds Measuring Function Output current: 0 to 300mA Line voltage: 0 to 250V Output Protection AC 250V (512Hz: output is cut off automatically) Operating Temperature -20°C to 50°C/-4°F to 122F° Dimensions 275x314x110mm (10.8”x12.4”x4.3”) Weight 3.7kg/8.2lbs approx. including eight batteries We look forward to serving you have a wonderful eBay experience. -Shipping terms This item will be ship FedEx with in the 1 days after payment have been made. We ship to the lowers 48 state. Will charge a .7% tax for Floridian residents. -Return Policy We will accept any return items or will have partial refunds for any of our items sold with in the 14 days of the date the item was sold that are not as describe or that arrive damages by the carrier,Please contact us first before living any negative feedback so we can have the change to make right to you in case of any inconvenience,we work hard to make happy customers so we can keep doing business in the near future. Contact Us Office Hours: Monday to Friday 10:00AM - 5:00PM Eastern Time Email us after business hours or on the weekend and we will be contacting you on the next working day. WE SELL CONSIGN AND TRADE QUALITY TOOLS!! No local pick up

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	McLaughlin
Model	Verifier G2
