New Old Stock (nos) Dynapar Dc Volts / Amps Meter Stbs0

US $33.00

Hayward, California, United States
Jan 29th

Open on mobile:
QR code

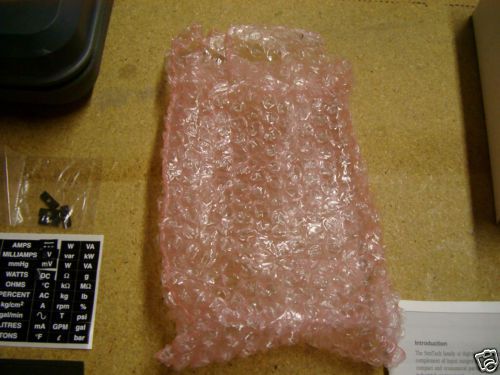

Up for auction / your consideration is a New Old Stock Dynapar brand DC Volts / Amps Meter. Please read this entire description and review and examine all the information that I have on this item before placing any bids. This an auction for a brand new in the box Dynapar brand meter model STBS0. It was only opened to make sure what was in it and to photograph it for this auction. This was purchased for a project many years ago that was never started. As you can see in the photos there is no wear and it is complete in it's original box. This was made in the U.S.A. in Gurnee, Illinois. The last photo is of the actual sealed boxed New Old Stock Meter that you will be receiving. Specifications: Input Power: AC: Terminals 1(L1) and 3 (N/L2) 95 to 130 VAC(or 190 to 260 VAC, selectable), 50/60 Hz, 6 VA Display: Type: 7-segment red LED Number: 4-1/2 digits plus minus sign. Height: 0.56" (14mm) Decimal Point: none, .X, .XX, .XXX, or .XXXX jumper selectable Inputs: Signal Terminals 5(-) and 6(-) Ranges: 0 to 0.2, 2.0, 20 or 200 volts; 0 to 2, 20, 200 or 2000mA (jumper selectable) Response Times (for 90% change): Fast, 0.5 sec; Slow 2.0 sec (jumper selectable) Impedance: 1MOhm (0.2 V ranger) to 100MOhm (200 V range) min., voltage inputs 100 Ohms max. (2 mA range) to 1 Ohm (200 mA range) max. current inputs Accuracy: 0.1% of full scale, =/- 1 digit Stability: =/- 100 ppm/ Degrees Celsius Common Mode Rejection: 80 dB at 50-60 Hz(DC model) frequency Response: 10 Hz to 3kHz (AC model) Adjustments Zero: approx. 100 counts Span: approx. 100 counts at full scale Scaling: continuously adjustable from 10 to 100% of full scale Mechanical Enclosure Dimensions: 3.5"x1.7" (91x44mm) Bezel Dimensions: 3.78"x1.98" (96x50mm) Panel Cutout Size: 1/8 DIN, 3.62"x1.77" (92x45mm) Depth Behind Panel: 4" (100mm) Environmental Operating Temp.: 4 to 140 Degrees F. (-20 to 60 Degrees C) Storage Temp.: -40 to 185 Degrees F. (-40 to 85 Degrees C) Ambient Humidity: 0 to 85% noncondensing Front Panel Seal: NEMA 4 / Ip65 when installed with panel gasket (supplied) I am available to answer questions in the early mornings Monday through Friday. I do ship item once they have been fully paid for in the early afternoons, Monday through Friday. I will be packaging the item as if I was receiving it, so it will be properly packaged. All shipping and handling charges do include Insurance for the price of the item and Signature Confirmation. Thank you for taking the time to read and review and examine this item and happy bidding!!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Dynapar brand
MPN	STBS0
Model	DC Volts / Amps Meter
