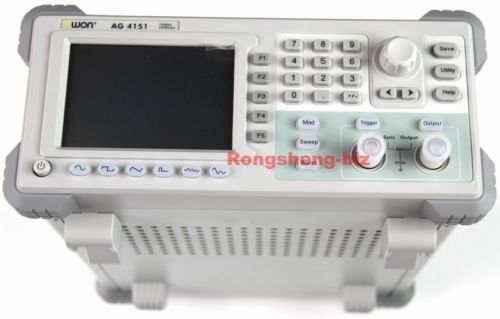

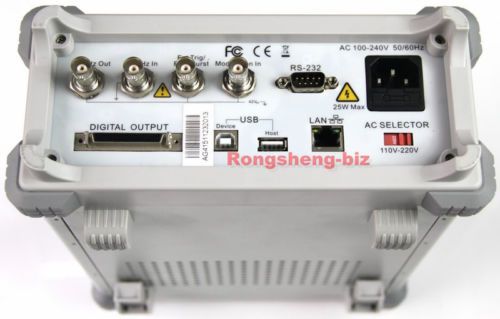

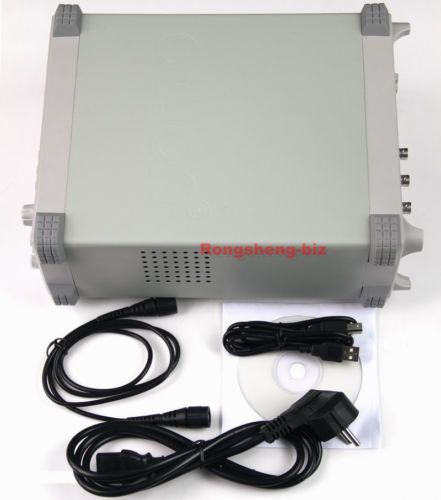

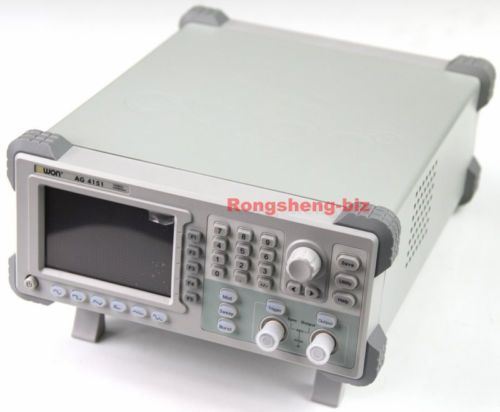

New Owon AG4151 Single 150MHZ 400MSa/S 14bits DDS Arbitrary Waveform Generator, US $1,009.98 – Picture 0

New Owon AG4151 Single 150MHZ 400MSa/S 14bits DDS Arbitrary Waveform Generator, US $1,009.98 – Picture 1

New Owon AG4151 Single 150MHZ 400MSa/S 14bits DDS Arbitrary Waveform Generator, US $1,009.98 – Picture 2

New Owon AG4151 Single 150MHZ 400MSa/S 14bits DDS Arbitrary Waveform Generator, US $1,009.98 – Picture 3

New Owon AG4151 Single 150MHZ 400MSa/S 14bits DDS Arbitrary Waveform Generator, US $1,009.98 – Picture 4

New Owon AG4151 Single 150MHZ 400MSa/S 14bits DDS Arbitrary Waveform Generator, US $1,009.98 – Picture 5

New Owon Ag4151 Single 150mhz 400msa/s 14bits Dds Arbitrary Waveform Generator

US $1,009.98

Wenzhou, ZJ, China
Jan 29th

Open on mobile:
QR code

Owon AG4151 Single150MHZ 400MSa/S 14bits DDS Arbitrary Waveform Generator 1.Introduction: Main Features: - Advanced DDS technology,Max 150MHZ frequency output - Up to 400Msa/S sample rate and 32bits Frequency resolution - Vertical Resolution: 14bits,Up to 1M Arb waveform length - Comprehensive waveform outputs: Sine,Square,Ramp,Pulse,Noise,Sinc,Exponential Rise and Decay,32 channels digital waveform,DC and user defined arbitrary waveform - Comprehensive modulation functions: AM,FM,PM,FSK,PWM modulations - 3.9 inch high resolution 480x320 pixels)TFT LCD display Application: Design and Debug Circuit function test Education and Training 2.Specification: Model AG1022 AG4151 Bandwidth two channels 25MHZ one channel 150MHZ Sample Rate 125MSa/s 400MSa/s Vertical Resolution 14bits Standard waveforms Sine, Square, Pulse, Ramp, Noise Arbitrary waveforms Sinc,Exponential Rise and Decay, DC, User defined Sinc,Exponential Rise and Decay, DC, User defined, 32 channels digital waveform Frequency Characteristics Sine 1 ?Hz—25MHz 1?Hz—150MHz Square 1 ?Hz—10MHz 1 ?Hz—50MHz Pulse 1 ?Hz—10MHz 1 ?Hz—25MHz Ramp 1 ?Hz—1MHz 1 ?Hz—1MHz Arb 1 ?Hz—10MHz 1 ?Hz—10MHz Arbitrary waveforms Wavelength 2 to 8Kpts 2 to 1Mpts Sample Rate 125MSa/s 200MSa/s Vertical Resolution 14bits Non-Volatile Memory 4 waveforms Amplitude characteristics Amplitude 10mVPP-10VPP(50?) 20mVPP-20VPP(High Impedance) Resolution 1mVPP or 14bits DC Offset Range (AD+DC) ±5V(50?)?±10V(High Impedance) DC Offset Range Resolution 1mV Load Impedance 50?(typical) Modulation Characteristics Modulation Waveforms / AM, FM, PM, FSK, PWM, linear / logarithm sweep and burst waveform Modulation Frequency / 2mHz-20.00 kHz (FSK 1?Hz-100kHz) Input / Output Display 3.9-inch(480x320) TFT LCD Type external reference clock input/output External modulation input/output, External trigger input/output, external reference clock input/output Interface USB Host,USB Device,RS232 USB Host,USB Device,RS232,LAN Mechanical Dimensions(WxHxD) 235x110x295(mm) Weight(without package) 3KG Accessories: 3.Payment: We accept the following forms of payment 4.Shipping: We will ship all items within 1-3 working days upon receipt of payment,our goal is: ship it as fast as we can. Standard Shipping: To USA,UK and Australia by ePacket,need 7-12 working days. Expedited/Standard Int'l Shipping by Fedex,DHL,TNT and EMS courier: To USA,need 3-6 business days,To other countries,need 4-8 business days normally.But sometimes int'l delivery is highly depended on the courier company and local customs/duties. Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility. 5.Warranty&Reture Policy: We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs. 30 days evaluation and investigation takes placed after receiving your return item.A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty requirements. Welcome to my store--http://stores.shop.ebay.com/rongshengbiz
