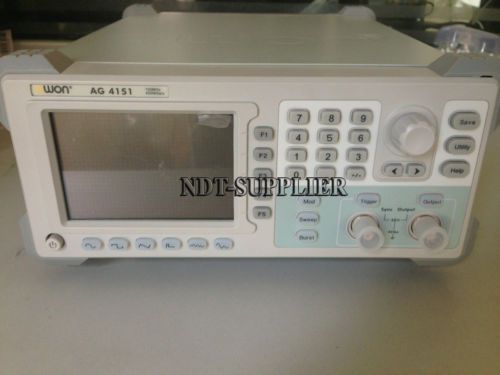

New Owon Ag4151 Single150mhz 400msa/s 14bits Dds Arbitrary Waveform Generator

US $1,009.95

China, China
Jan 29th

Open on mobile:
QR code

New Owon AG4151 Single150MHZ 400MSa/S 14bits DDS Arbitrary Waveform Generator Main Features: Advanced DDS technology , Max 150MHZ frequency output; Up to 400Msa/S sample rate and 32bits Frequency resolution; Vertical Resolution: 14bits , Up to 1M Arb waveform length; Comprehensive waveform outputs : Sine , Square , Ramp , Pulse , Noise , Sinc , Exponential Rise and Decay, 32 channels digital waveform , DC and user defined arbitrary waveform; Comprehensive modulation functions : AM, FM, PM, FSK, PWM modulations; 3.9 inch high resolution (480x320 pixels) TFT LCD display; Application: Design and Debug; Circuit Function Test; Education and Training; Specification: Model AG4151 AG1022 Bandwidth one channel 150MHZ two channels 25MHZ Sample Rate 400MSa/s 125MSa/s Vertical Resolution 14bits Amplitude Flatness 20mVPP-20VPP Standard waveforms Sine, Square, Pulse, Ramp, Noise Arbitrary waveforms Sinc,Exponential Rise and Decay, DC, User defined, 32 channels digital waveform Sinc,Exponential Rise and Decay, DC, User defined Frequency Characteristics 400MSa/s,Resolution 1?Hz 125MSa/s,Resolution 1?Hz Sine 1?Hz—150MHz 1 ?Hz—25MHz Square 1 ?Hz—50MHz 1 ?Hz—5MHz Pulse 1 ?Hz—25MHz 1 ?Hz—5MHz Ramp 1 ?Hz—1MHz 1 ?Hz—1MHz Noise 50MHz 20MHz Arbitrary waveforms Wavelength 2 to 1Mpts 2 to 8Kpts Sample Rate 200MSa/s 125MSa/s Vertical Resolution 14bits Non-Volatile Memory 4 waveforms Amplitude characteristics Amplitude 10mVPP-10VPP(50?) 20mVPP-20VPP(High Impedance) Resolution 1mVPP or 14bits DC Offset Range (AD+DC) ±5V(50?)?±10V(High Impedance) DC Offset Range Resolution 1mV Load Impedance 50?(typical) Modulation Characteristics Modulation Waveforms AM, FM, PM, FSK, PWM, linear / logarithm sweep and burst waveform Modulation Frequency 2 mHz-20.00 kHz(FSK 2mHz-100kHz) Input / Output Display 3.9-inch(480x320) TFT LCD Type External modulation input/output, External trigger input/output, external reference clock input/output external reference clock input/output Interface USB Host,USB Device,RS232,LAN USB Host,USB Device,RS232 Mechanical Dimensions(WxHxD) 235x110x295(mm) Weight(without package) 3KG 3.2KG Accessories: The power cord of AC adaptor will be sent according to your location. PAYMENT We accept paypal or other payment terms. If there is any import duties or taxes,it is the buyer's responsibility. We often declare it with low value, like $117, so you can pay less tax. Please make payment within 5 days after you place your order. Please DO NOT place your order if you are NOT intend to buy. SHIPPING & DELIVERY We will ship out the unit to you by EMS or FedEx or DHL. It will decided by seller according to your location.(EMS Service Only for Russian Customers) We will ship out the unit to the Express company first, it will take about 2-3 days, and then express company will deal with the package, so you can check the tracking number online after about 4 days. Please note this. CONTACT US Welcome!! Please read ALL POLICIES of us before your purchase. If you have additional questions or concerns about this item, please contact us via email. We will response the most E-mail within 24 hours. RETURN POLICY If the item is defective, please notify us within 7 days after the receipt of the item. The item shall be return in its original condition, in order to get it refunded or replaced.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	AG4151
Country of Manufacture	China
Manufacturer	OWON
