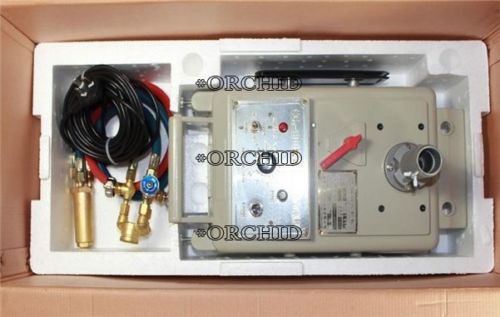

New Semi-automatic Torch Gas Cutting Machine Cutter Cg1-30b

US $180

Shanghai, China
Jan 30th

Open on mobile:
QR code

NEW SEMI-AUTOMATIC TORCH GAS CUTTING MACHINE CUTTER CG1-30B NEW PORTABLE DIGITAL LCD DISSOLVED OXYGEN METER TESTER JPBJ-608 PERISTALTIC PUMP DISPENSING TYPE BT300FJ YZ1515X BRAND NEW AOR500-A PALM OTDR 28DB/26DB DYNAMIC RANGE 1310±20NM/1550±20NM DEEPSEA AUTO MAINS FAILURE CONTROL MODULE DSE704 This machine can cut steel plate with the thickness over 8mm with medium-pressure acetylene and high –pressure oxygen. It primarily conducts linear cutting, whereas the machine also deals with circular cutting with the specification over ?200mm as well as miter cutting and V-shaped cutting. In addition, processes like flame hardening and plastic welding are also available with the auxiliary devices and the machine’s independent power supply. The machine has realized compact construction, convenient operation and high operational safety. The preparation time is short, extending favorable economic benefit. The machine is suitable for processing in shipbuilding, bridge works and heavy machinery, as well as for steel plate cutting in large, medium and small sized plants. Note: The machine could also be fit with CO3 cutting nozzle for propane gas cutting. The main body adopt aluminum alloy, nicety die-castings to make into. The machine has the advantages of light weight, high strength and bear the corrosion etc. Motor and Reducer: This machine is driven by ZYT261DC servo motor, which features small construction and high durability. The motor is able to rotate clockwise or counterclockwise. 30 W in output power, the motor is directly linked to gear reducer so as to drive the roller. Speed Regulation: Through outphase capacitance control on the size of angle of opening with thyristor flow meter, the machine can realize stepless speed regulation of the motor. During operation, switch on the 4.7 K? potentiometer’s knob to regulate the cutting speed within 50 – 750 mm/min in a stepless way. Cutting Torch: The cutting torch consists of oxyacetylene distributor, lateral rod, cutting nozzle, lifting mechanism and so on. Through transmission of the gears and racks, the cutting nozzle moves up and down and to the left or right, facilitating the regulation. The tightening screws of the cutting torch move within ±45°. Guide Rail: The frame provides two types of guide rail: convex and concave. The type of guide real is optional according to type of the user’s driving wheel. The guide rails provide interface at their ends for extension. Connection to long guider real is allowed when a long component is to be cut. Parameters: (1) External dimensions and weight. External dimensions: 430 x 230 x 280 mm (L x W x H). Total Weight: 28.5 kg. Mainframe Weight: 14.7 kg. Cutting Nozzle Weight: 0.45 kg (3pcs). Cutting Torch Weight: 2.7 kg (1 set). Concave Guide Rail Weight: 6 kg (1pcs). Guide Rail Dimension: 1200 x 220 x 30 mm. Input Voltage: AC 220 V /110 V, 50 Hz/ 60 Hz (Optional). Radius Rod Weight: 1.45 kg. (2) Range of Cutting. Thickness of Steel Plate Cutting: 8 – 100 mm. Regulation Range: 50 – 750 mm/min ( Stepless speed regulation). Diameter of Circumference for Cutting: ?200 – 2000 mm. (3) Type of Guide Rail. The frame provides one type of guide rail: concave. (4) The machine is supplied with GO2 1 ~ 3 cutting nozzles. Nozzles of other specifications will be available from purchase (see the table for cutting nozzle specifications when using the machine). Specifications of Cutting Nozzle:: Nozzle No. Cutting Thickness (mm) Oxygen Pressure (Mpa) Acetylene Pressure (Mpa) Cutting Speed (mm/min) 00 5 - 10 0.20 - 0.30 > 0.03 600 - 450 0 10 - 20 480 - 380 1 20 - 30 0.25 - 0.35 400 - 320 2 30 - 50 350 - 280 3 50 - 70 0.3 - 0.4 > 0.04 300 - 240 4 70 - 90 260 - 200 5 90 - 120 0.4 - 0.5 200 - 170 Accessories: GO2 1 ~ 3 cutting nozzles (1pcs/per). Concave Guide Rail (1.2 m 2 pcs). Cirle Cutting Tool (1 set). xoyobfm sijpidk eajiieg MPI Buyer should pay within 7 days after purchase. We only accept payment via PayPal. Our team focuses on providing high quality products with reasonable price and tries its best to keep transactions as simple as possible. Please be confident of and enjoy your shopping here! Please feel free to contact us via eBay message system or email.
