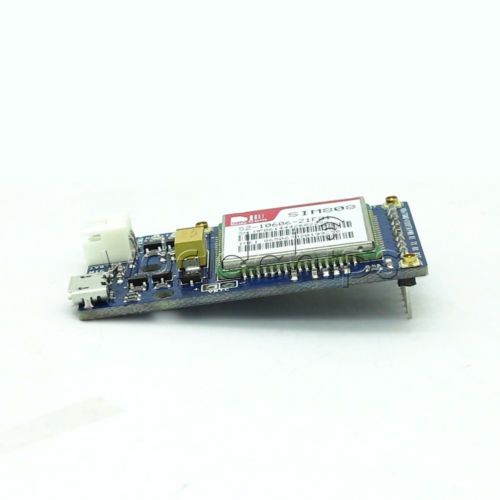

New SIM808 GPS GSM GPRS Module for Arduino GSM Module GPRS Module, US $39.15 – Picture 0

New SIM808 GPS GSM GPRS Module for Arduino GSM Module GPRS Module, US $39.15 – Picture 1

New Sim808 Gps Gsm Gprs Module For Arduino Gsm Module Gprs Module

US $39.15

ShenZhen, China
Jun 9th

Open on mobile:
QR code

Description Overview SIM808 module is a GSM and GPS two-in-one function module. It is based on the latest GSM/GPS module SIM808 from SIMCOM, supports GSM/GPRS Quad-Band network and combines GPS technology for satellite navigation. It features ultra-low power consumption in sleep mode and integrated with charging circuit for Li-Ion batteries, that make it get a super long standby time and convenient for projects that use rechargeable Li-Ion battery. It has high GPS receive sensitivity with 22 tracking and 66 acquisition receiver channels. Besides, it also supports A-GPS that available for indoor localization. The module is controlled by AT command via UART and supports 3.3V and 5V logical level. SpecificationPCB size 50mm X 30.5mm X 1.6mm Voltage Input 3.4V ~ 4.4V Interface UART Indicator NET, STATUS Button POWER Features Quad-band 850/900/1800/1900MHz GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load) GPRS mobile station class B Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands) Supports charging control for Li-Ion battery Supports Real Time Clock Supply voltage range 3.4V ~ 4.4V Integrated GPS/CNSS and supports A-GPS Supports 3.0V to 5.0V logic level Low power consumption, 1mA in sleep mode Supports GPS NMEA protocol Standard SIM Card Electronic Characteristics Hardware Interface Functions GPS Antenna: this is an uFL GPS antenna connector. You can connect either passive or active GPS antenna to it. Active GPS antenna runs at 2.8V voltage. MicroUSB: the charging interface for Li-Ion battery, of input voltage range from 5V to 7V. Beside, it is also the software debugging interface for SIM808 that you can upgrade firmware and debug software. Power Button: this is the hard power switch for the module. When the module is power up, you can turn on or turn off the module by pressing the button for 2s. Net Indicator: Red LED, it will tell the what status is about the module linking to network. Status Indicator: Green LED, it will tell whether the module is on, light when the module is running. Li-ion Battery: this is power supply for the module, input voltage is from 3.4V to 4.4V. It uses the XH-2.0mm connector, that make it convenient to connect to 3.7V Li-Po Battery. GSM Antenna: this is an uFL GSM antenna connector, just connect it to a GSM antenna for receiving GSM signal. SIM - Card Holder: SIM card holder for standard SIM card Microphone: this is the reserved interface for 2.8V microphone. By using the microphone, you can make voice calls and collect speech data around the module. VRTC: RTC backup. You can add external capacitor or rechargeable battery on it. Pin Map PWR: this is soft power switch for the module, you can pull it to high level for at least 2s to power up or power down the module. RI: this pin will tell you whether the module is on and is there any calls and messages received. It will be pulled to high level when the module is on. And it will change to low for 120ms when a call or message is received. RST: this is reset pin for the module. By default it has a high pull-up. If you absolutely got the module in a bad space, you can pull it to low level for 100ms to perform a hard reset. RXD / TXD: Serial port, the module uses it to send and receive commands and data. TXD is output, and RXD is input. They can be connected to the 3.3V and 5V level. VIO: this is the reference logic level for serial port of the module, the input voltage depends on the logical level of the miccontroller you use. If you use a 5V miccontroller like Arduino, you should have it be 5V, and a 3V logic miccontroller you should set it to 3V. BAT: this pin is connected to Li-Ion battery pin, if you want to use only one Li-Ion battery as your power supply, you can use it to drive you miccontroller. DTR: this is wake up pin for module in sleep mode. By default it has a high pull-up, and you can set the module into sleep mode by AT command “AT+CSCLK=1”. In the meantime, the serial port will be disabled. To wake up the module and enable serial port, you can pull this pin to low level for about 50ms. LED Statu Package included: 1PCS x New SIM808 GPS GSM GPRS Module for Arduino GSM Module GPRS Module Shipping Terms 1. WORLDWIDE Free SHIPPING. (Except China) 2. Orders processed within 24 hours of payment verification. 3. We only ship to confirmed eBay addresses. Your eBay address MUST MATCH your Shipping address. 4. The images shown are not the actual item and are for your reference only. 5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. 6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction! 7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery. No Tracking Number The shipping cost is very low,we are not responsible for any loss in the mail if the item not insured(no-registered mail). Registered Post Shipping cost: Would better to Add 3 USD to Upgrade---- Registered Post(Choose "Standard Int'l Shipping" for one item,and others choose free shipping.we can send all your items in one box with tracking number.) Express Courier Need URGENT? We offer a varienty of shipping methods (Expedited Int'l Shipping) to meet your needs.If you need it Urgent, please contact us to Upgrade the shipping to Express. Payment Terms 1.We accept payment via PAYPAL ONLY. 2. Payment must be made within 4 days of auction closing. (Non-payment may result in a UPI (Unpaid Item) being put on your account. eBay will automatically close your account if you accumulate 4 UPI's total.) 3. TOTAL AMOUNT DUE includes the final auction price plus S&H(Shipping and Handling). 4. S&H will be determined based upon the SHIP TO address. PLEASE NOTE: S&H DOES NOT INCLUDE DUTIES, LOCATL TAXES OR ANY OTHER IMPORTATION FEES. 5. Please list your special requests (color, packages, etc.) in the PAYPAL NOTES SECTION when you make payment. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. Links for related products Dual-axis Electronic Sensor Digital Magnetic Compass Module for GPS Navigation $13.19 Shipping:Free Time left:24d 8h 28m APM2.6 multi-spin fixed-wing flight control GPS-6M + HMC5883L Compass Module $14.07 Shipping:Free Time left:7d 5h 7m Ublox NEO-7M-000 GPS Module MWC APM2.6 Replace NEO-6M GYGPSV3-NEO7M GOOD $17.67 Shipping:Free Time left:8h 7m 2Pcs Ublox NEO-6M GPS Module Aircraft Flight Controller Arduino MWC IMU APM2 NEW $23.56 Shipping:Free Time left:4d 0h 55m UBLOX Micro GPSV5 NEO-M8N GPS Module GNSS HMC5983 SAW LNA Triple Band Antenna $28.38 Shipping:Free Time left:8h 9m 5Pcs Ublox NEO-6M GPS Module Aircraft Flight Controller Arduino MWC IMU APM2 NEW $55.57 Shipping:Free Time left:4d 0h 55m Useful Flight Controller GPS Module F PX4 Pixhawk V2.4.5 APM2.56 APM NEO-M8N $20.38 Shipping:Not specified Time left:8h 8m Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Type	SIM808 GPS GSM GPRS Module
Quantity	1
Brand	Unbranded/Generic
Country/Region of Manufacture	China
Model	SIM808
UPC	Does not apply
MPN	SIM808
