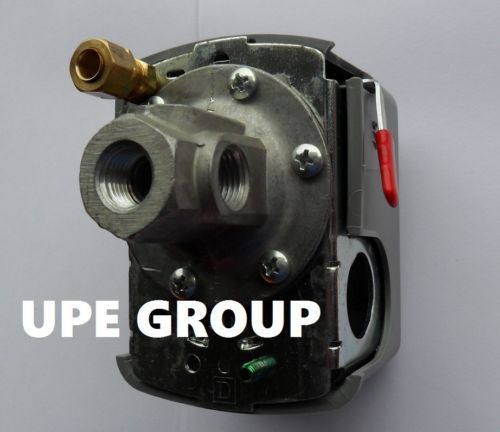

New SQUARE D Pressure switch 9013FHG14J52M1X 95-125 w/ unloader 4 port ON/OFF, US $36.75 – Picture 0

New SQUARE D Pressure switch 9013FHG14J52M1X 95-125 w/ unloader 4 port ON/OFF, US $36.75 – Picture 1

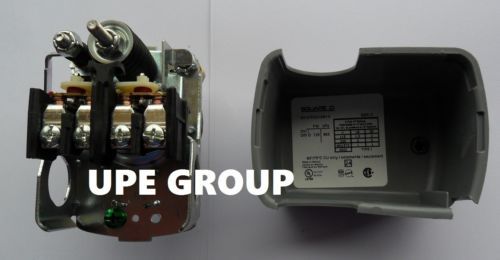

New SQUARE D Pressure switch 9013FHG14J52M1X 95-125 w/ unloader 4 port ON/OFF, US $36.75 – Picture 2

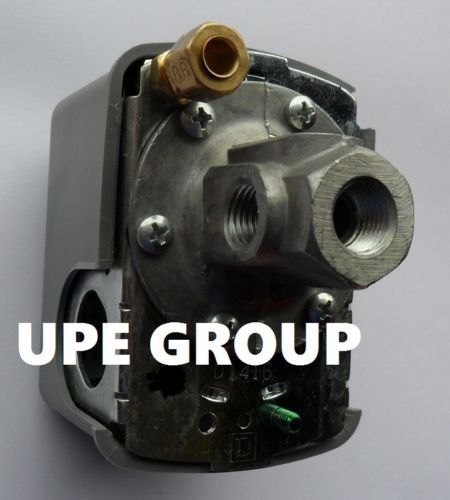

New SQUARE D Pressure switch 9013FHG14J52M1X 95-125 w/ unloader 4 port ON/OFF, US $36.75 – Picture 3

New SQUARE D Pressure switch 9013FHG14J52M1X 95-125 w/ unloader 4 port ON/OFF, US $36.75 – Picture 4

New SQUARE D Pressure switch 9013FHG14J52M1X 95-125 w/ unloader 4 port ON/OFF, US $36.75 – Picture 5

New SQUARE D Pressure switch 9013FHG14J52M1X 95-125 w/ unloader 4 port ON/OFF, US $36.75 – Picture 6

New Square D Pressure Switch 9013fhg14j52m1x 95-125 W/ Unloader 4 Port On/off

US $36.75

Marietta, Georgia, United States
Jan 30th

Open on mobile:
QR code

Brand New !!! SQUARE D PRESSURE SWITCH 9013FHG14J52M1X 95-125 PSI - W/ UNLOADER & ON/OFF LEVER 1/4" FEMALE NPT FOUR PORT CONNECTION TYPE. UNLOADER IS 1/4" COMPRESSION DESIGNED TO FIT COPPER OR NYLON TUBING. TECHNICAL INFO SHOWN BELOW Range of product Square D Pumptrol Pressure sensor name 9013FH Pressure sensor size 150 psi Value of setting Off at 125 psi Electrical circuit type Power circuit Product specific application Control small electrically driven air compressors Quantity per set 1 Type of packing Individual Complementary Pressure sensor type Electromechanical pressure switch Controlled fluid Air (-22...257 °F) Adjustable range on rising pressure 70...150 psi Approximate adjustable differential 30 psi Destruction pressure 220 psi Pressure actuator Diaphragm Pressure switch type of operation Regulation between 2 thresholds Scale type Fixed differential Setting Internal Local display Without Contacts type and composition 2 NC, snap action, DPST-DB, Form YY Cable entry number 2 0.88 in cable entries with 0.84 in across flats UL 508 Electrical connection Screw-clamp terminals, clamping capacity: 5.261 mm? Screw-clamp terminals, clamping capacity: 10 AWG Fluid connection type 0.25 inch 4-way flange conforming to UL 508 Short circuit protection 20 A by cartridge fuse, type gG Materials in contact with fluid Nitrile (Buna-N) or equivalent rubber diaphragm Zinc plated steel or equivalent flange Material Noryl thermoplastic resin or equivalent cover Polypropylene cover Operating position Any position Motor power kW 0.75 kW (1 hp) at 575 V AC, 3 phases 0.75 kW (1 hp) at 460 V AC, 3 phases 2.2 kW (3 hp) at 230 V AC, 3 phases 1.5 kW (2 hp) at 115 V AC, 3 phases 1.1 kW (1.5 hp) at 115 V AC, 1 phase 1.5 kW (2 hp) at 230 V AC, 1 phase Electrical durability 100000 cycles at 10 cyc/mn Mechanical durability 300000 cycles Terminal block type 4 terminals Operating rate 10 cyc/mn [Ui] rated insulation voltage 575 V conforming to UL 508 Product weight 1 lb(US) Repeat accuracy +/- 3 % Terminals description ISO n°1 L1-T1 L2-T2 Width 3.1 in Height 4.45 in Depth 3.76 in Factory modification 2-way pressure release valve Maintained manual cut-out lever (AUTO-OFF) UPE GROUP POLICIES AND INFORMATION: Payment Information: We accept PayPal for payments Contact us: Please use the ebay message board to contact us. On each of our ebay listings you will see a couple of options to contact us. The "ask seller a question" link and the "Contact seller" link are both good to use. Your questions will be answered Mon-Fri during our Business operation hours. Please do not contact us through email regarding an ebay purchase. eBay policy states that all contact between buyers and sellers must go through the ebay message board. In addition, when you contact us through the ebay message board regarding an item you purchased, we can see exactly when you purchased, when it shipped, and any other info relating to your one specific order. Shipping Polices: We Expedite each and every order we get on ebay. Which means your item will ship within 24 business hours of payment confirmation. We are open shipping Monday through Friday only. We generate all of our shipping labels through ebay, so your tracking info will be emailed to you the moment your shipping label is generated. You can click the link on your tracking info to get up to date tracking info regarding your shipment. You can find the link on your transaction details page, or under the "Buying" portion on your "My eBay" page. For specific shipping info and combined shipping rules, please click the "shipping and payment" tab on any of our ebay listings. That link will show you the shipping specifics and combined shipping rules relating to that specific item. Tracking Information: We provide Tracking info on every item that is purchased on ebay. The tracking info will be emailed to you the day your order is shipped. Feedback Policies: Anyone who purchases from us gets positive feedback. Return Policy & Exchange Policy: Return Policies: We have a 14 day return policy. Arrangements must be made within 14 days of purchase. Although Seldom, if the part you ordered is defective, we will make the proper arrangements to correct the issue at no extra cost to you. If the buyer orders the wrong part, It is up to them to pay the to and from freight charge on the exchange. We do not charge a restocking fee if an exchange is in order. No restocking fee is in order as long as the customer returns the part and pays the freight charge to have the correct part sent to them. If the buyer orders a part by mistake and wants to return it for a full refund. We will refund the total amount less the freight charge that we paid to have the part sent to them. In addtion, a 10% restocking fee will be deducted from the refund to help offset the time, shipping supplies and personel that was used to ship the item. This policy protects from losing money when the customer orders by mistake. PLEASE FEEL FREE TO MESSAGE US WITH ANY QUESTIONS YOU MAY HAVE. THANKS UPE GROUP Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.
