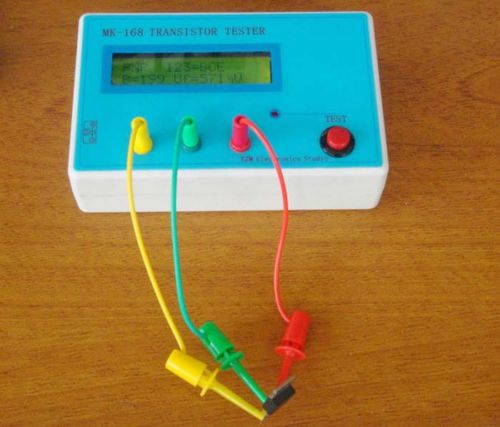

NEW Transistor Tester Diode Triode Capacitance ESR resistance Meter MOS PNP NPNN, US $33.19 – Picture 0

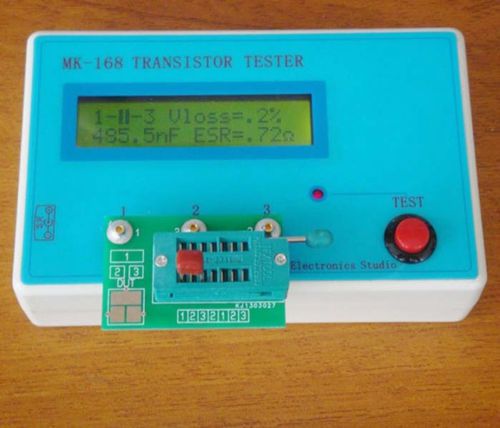

NEW Transistor Tester Diode Triode Capacitance ESR resistance Meter MOS PNP NPNN, US $33.19 – Picture 1

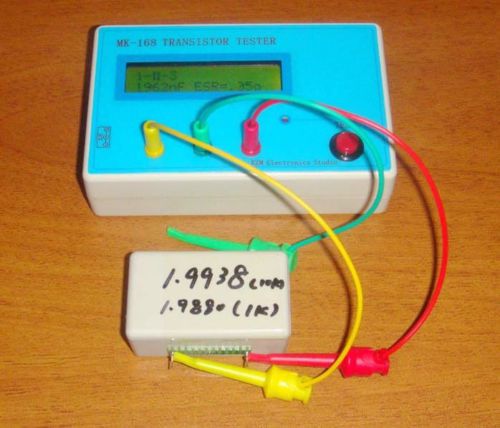

NEW Transistor Tester Diode Triode Capacitance ESR resistance Meter MOS PNP NPNN, US $33.19 – Picture 2

NEW Transistor Tester Diode Triode Capacitance ESR resistance Meter MOS PNP NPNN, US $33.19 – Picture 3

New Transistor Tester Diode Triode Capacitance Esr Resistance Meter Mos Pnp Npnn

US $33.19

Shenzhen, China
Jan 29th

Open on mobile:
QR code

i000000 NEW Transistor Tester Diode Triode Capacitance ESR resistance Meter MOS PNP NPNN Click Photos to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Description Overview: 1 using the latest M328 version 2014 V1.10 software, features more than the M8 version. 2 micro-controller uses 8MHz external crystal, measurement accuracy is better. 3 affect the accuracy of one-thousandth of the relevant resistance metal film resistors using the remaining one percent is also used metal film resistors. 4.LCD backlit LCD screen with low power consumption, compared with the whole power consumption is almost negligible, so the light is always there, easy reading in the dark. 5 built-9V laminated battery. With external DC power jack, prolonged use of more economical. 6 All components are made of high quality genuine. 7 standard configuration for the host + test + Locking hook line \ paste the test seat. 8 Dimensions:. 125X80X32 (mm) 9 Weight (with attachments): less than 200 grams. Technical performance: 1 one-button operation, automatic shutdown. 2 shutdown current is only about 20nA. 3 using 8MH crystals. 4 can automatically detect NPN, PNP bipolar transistors, N-channel and P-channel MOS FET, JFET, diodes, dual diode, thyristor small power unidirectional and bidirectional thyristor. 5 Automatic identification pin arrangement of components. 6 current amplification factor and base measuring bipolar transistor -. Emitter threshold voltage. 7 can be coupled through the base -. Emitter threshold voltage and high-current amplification factor identification Darlington transistors. 8 can detect bipolar transistors and MOS pipe protection diodes. 9 measuring MOS FET gate threshold voltage and gate capacitance. 10 can be measured simultaneously with two resistors and resistor symbol is displayed. Display with four decimal values on the right side. Resistance symbol is displayed on both sides of the pin number. So you can measure the potentiometer. If the potentiometer wiper not be transferred to a extreme position, it can distinguish between the middle and both ends of the pin. 11 resistance measurement resolution is 0.1 ohm, can measure to 50M ohms. 12 can be measured capacitance. Capacitor symbol is displayed on the right display values can be displayed with four decimal value. Can measure the capacitance of 30pF-100mF resolution 1pF. 13.2uF more capacitors can measure the value of the equivalent series resistance ESR. The two values can be displayed with a decimal, resolution of 0.01 ohms. 14. may be displayed in the correct order of two diodes and a diode symbol, and gives the diode forward voltage. 15.LED is detected as a diode, its forward voltage higher. LED combo is identified as two diodes. 16. Reverse breakdown voltage is less than 4.5V Zener diode can be identified. 17 can measure a single diode reverse capacitance. If the connection base and collector of the bipolar transistor or the emitter of a pin, the reverse can also be measured or collector junction capacitance of the emitter junction. 18. Will be able to get connected just one way to measure the rectifier bridge. 19 Although the capacitance measurement limit is 30Pf, but you can be measured by the measured capacitance with a known volume of at least 30pF capacitor in parallel, and then obtain the desired result is subtracted from the measurement results will parallel capacitor. 20 can be less than 2100 ohm resistor to measure inductance, or will be able to measure 2100 ohm resistor inductance. Measurement range 0.01mH-20H, but the accuracy is not very good. Measurement results show that only a single component. 21. Measurement time is about 2S, but longer time measuring capacitance and inductance. Package includes: 1 x New Transistor Tester Capacitor ESR Inductance Resistor Meter 1 x SMD Test adapter 3 x Test Clips We can also wholesale if you need a large quantity of item please contact us Feed back Negative or neutral feedback and 1,2 low score can not solve problems. I believe that commuciation is the best way to resolve problem. Any problem,please feel free to contact us advance. Please kindly note :If you really want to leave a negative feedback, Please contact us befere you done, I think communication and compensation can reslove your un- satisfaction. Contact us 1. Please contact us with any comments, questions or suggestions that you may have, we will be happy to assist you. 2. You can contact us by leaving us an eBay message, or email us. You can find our email address in you Winning Buyer Notification email. 3. Our working schedule: (including hotline and online inquiry) 4. We Respond emails within 24 hours, Weekend within 36 hours . We apologize for the late reply during the holidays in Hong Kong. Payment and Shipping PAYMENT TERMS: 1.we only accept payment view paypal , We apologize that we cannot accept other payment methods, such as cheque or postal orders . 2.All major credit cards are accepted through our secure payment processor PayPal 3.Payment must be received within 7 business days of auction closing. SHIPPING TERMS: We will not ship to Brazil, Negeria, Italy and Russian Federation unless accept the long delivery time( caused by the strict customs) and good communication. 1. Items will be sent within 12-24 hours after the payment cleared. 2. We will ship package to your ebay address only. 3. All orders will be shipped via the International Airmail service by HK Post, The other delivery way also accepted after our confirmation The following is the estimated time as our experience United States / United Kingdom / Australia/Canada 10-20 Business days(Over 25 business days will be resend or refund) Singapore / other included Asia country 15-25 Business days (Over 30 working days will be resend or refund) Germany / France / Belgium / Austria / Netherland / Poland 20-30 business days(Over 35 business days will be resend or refund) Spain / Other un-listed Countries 25-35 business days( Over 40 business days will be resend or refund) Please refer to the Delivery time before you decide to buy. We hope to received you 5 star positive feedback and aviod any 1 , 2 low score or neutral and negative. Any problems, Please contact me advance. Our mission is let our customers 100% satisfy under our best service! inkfrog terapeak inkFrog Analytics

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Model

MK-168
