New Waterproof Rocker Rocker Switch Spst Marine Panel Socket Mount 12v Boat Blka

US $9.95

Carmel, California, United States
Jun 9th

Open on mobile:
QR code

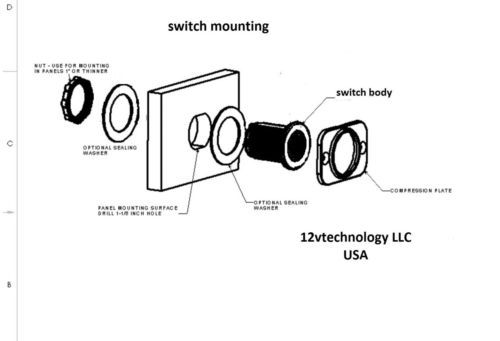

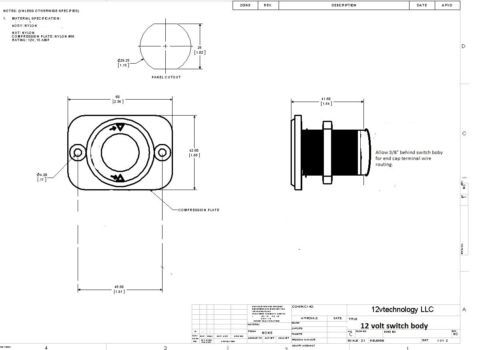

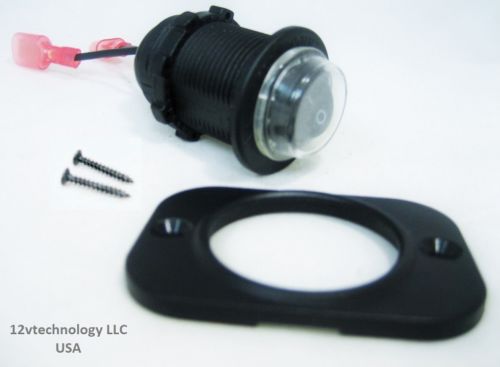

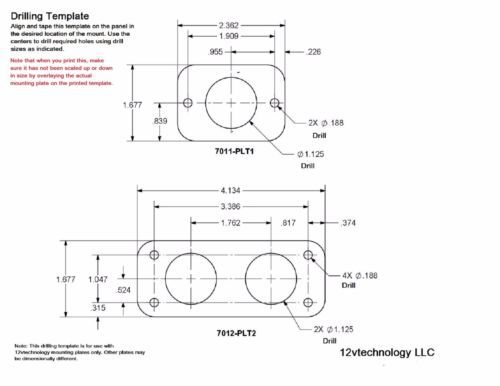

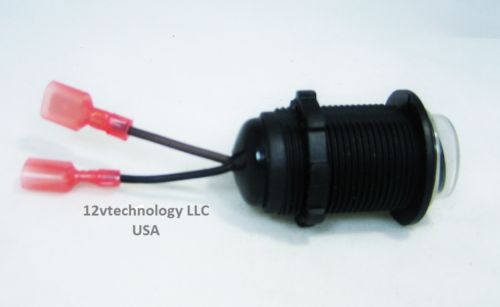

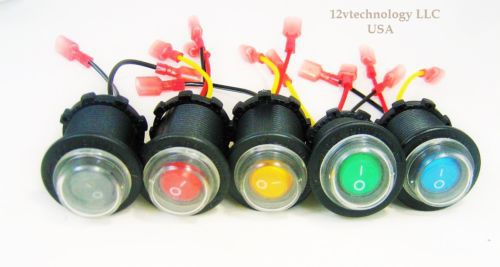

Clear cap covers switch splash proof waterproof. IP63 rated. Assembled and shipped from the USA. Patent Pending. -Splash proof front and back. #SWBLK1a -Waterproof Rocker Switch –SPST -Nylon threaded switch housing mount in a 1-1/8” hole. Can be mounted in panels or dashboards up to 1-1/4” thick with the retaining nut and in panels of unlimited thickness with the mounting plate. -12 volt operation: Rated for 16 amps at 12 volts. -Has male 1/4 ” crimp style disconnect terminals. -Two wire connection black wires switch load. -IP rating 63 -Repairable replaceable switch. Can be removed from the housing front. -LED illuminated versions of this switch are available at our other listings. Options: -Add a rubber occlusive sealing socket washer. Makes an extra waterproof seal when mounting the socket against a panel. The washer goes between the socket flange or nut, and the panel to seal the assembly. See listing 301066433426 . -Add wires with a fused 60 inch (5ft) wire harness to your socket assembly. The harness comes with of a fuse holder and fuse, and red and black wire connectors to attach to your socket and battery. See listing 121264213736. -Add a double mounting plate. Allows you to mount two socket products side by side for a professional installation. See listing 121267652997. -Add mounting plate black screws. Allows you to mount your socket with plate in a panel of unlimited thickness. See 121435313871 -Add a mounting hole bore. Allows you to drill or enlarge a hole in your panel or dash to mount this product. See 121486220109. -Add a Magic Socket Mounting Plate Stainless Steel Washer Assembly- with the Magic Washer the socket mounts in front of the plate and is held in place with the socket nut so the assembly becomes unified. Now the assembly is free standing and may be mounted as a free standing panel in any size opening. Buy 121555660699. -Add a heavy paper, actual size mounting plate, drilling template set to your purchase. Allows you to position the location of the holes that need to be drilled for your installation. See 121581701935. -Add a four hole quad mounting plate. Allows you to construct a custom square panel/ dashboard of four socket elements; switch, alarm, voltmeter, USB charger and special socket type. See 121644713148. -Add a custom label or marker. A label frame fits around the front flange face and allows you insert a labeled tag. See # 121742656759

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	12vtechnology
MPN	swblk1a
Model	swblk1a
