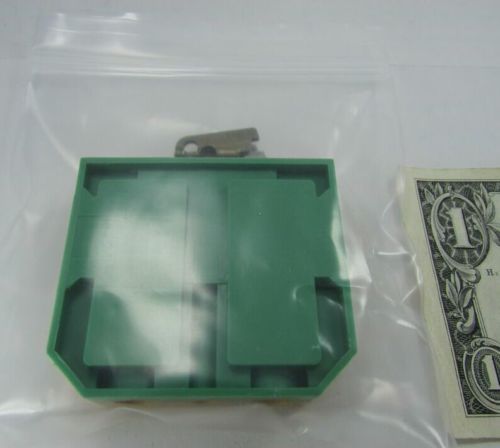

New Weidmuller Ek 35 Terminal Blocks 6awg To 2awg Ek35 035476 Electrical Germany

US $9.99

Springfield, Tennessee, United States
Jan 29th

Open on mobile:
QR code

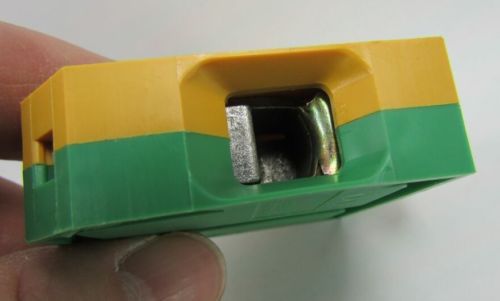

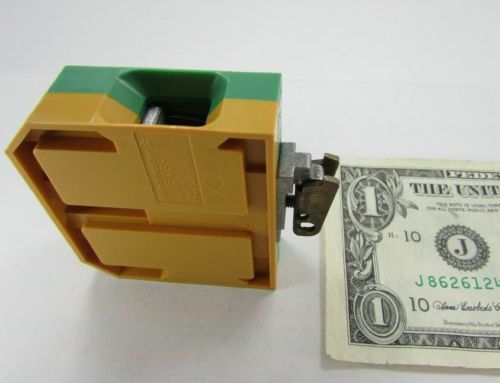

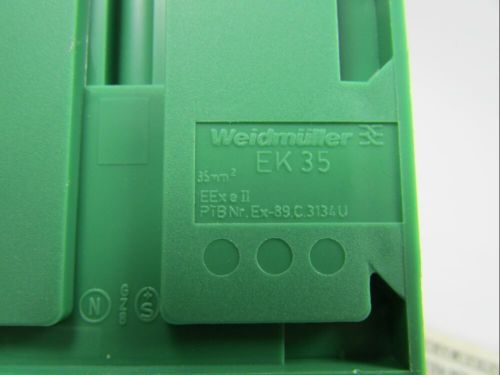

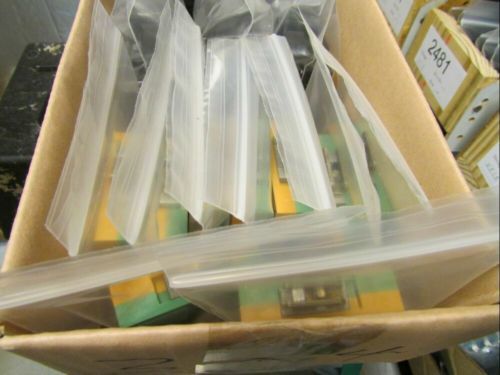

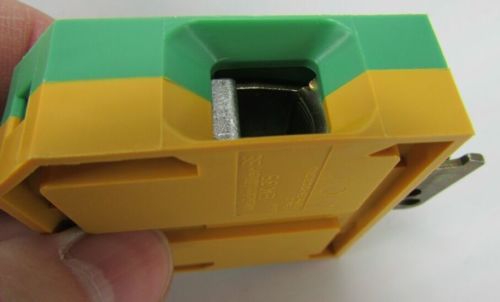

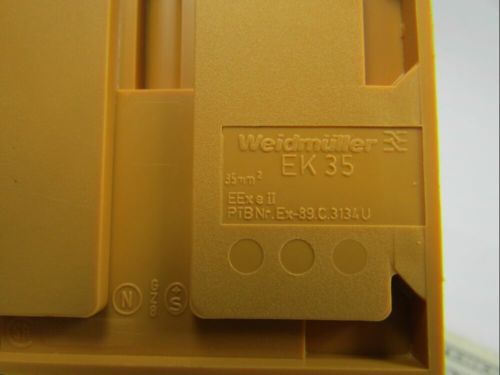

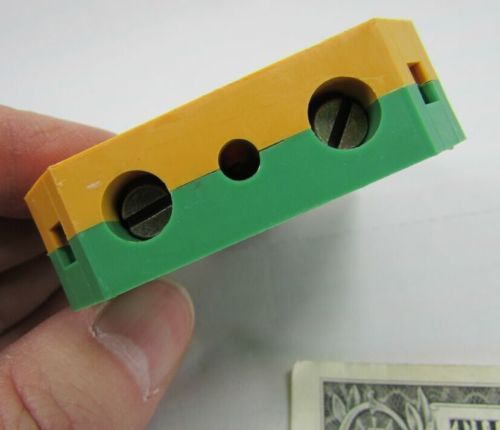

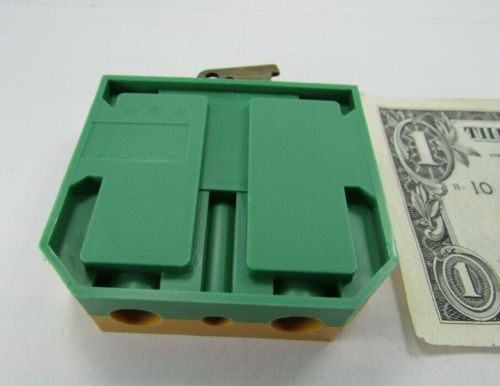

2574XE1G.22 New Weidmuller (Made in Germany) EK 35 or EK35 Terminal Blocks, 6AWG to 2AWG, Part Number 035476, EAN Number 4008190187972. Each bid quantity is for One (1) Terminal Block. You may bid / buy any number, up to the total quantity available above. These were purchased at an industrial liquidation earlier this year, and they were brand new in the original factory boxes. We packaged them in heavy Ziplok bags for resale. According to the manufacturer: Type EK 35 Order No. 0354760000 Version SAK Series, PE terminal, Rated cross-section: 35 mm², Screw connection, PA 66, green / yellow, Direct mounting GTIN (EAN) 4008190187972 Length 58 mm Width 16 mm Height 67.5 mm Height of lowest version 67.5 mm Weight 99.35 g Net weight 96.85 g Continuous operating temp., min. -50 °C Continuous operating temp., max. 100 °C Certificate No. (ATEX) KEMA97ATEX1798U ATEX certificate IECEXKEM06.0014U ATEX certificate KEMA97ATEX1798U_e.pdf Certificate No. (IECEX) IECEXKEM06.0014U IEC Ex certificate IECEXKEM06.0014U_e.pdf Wire cross section max. (ATEX) 35 mm² Wire cross section max. (IECEX) 35 mm² Marking EN 60079-7 Ex e II Marking ATEX Directive 94/9/EC II 2 G D Explosion-tested version Yes Installation advice Direct mounting Number of similar terminals 1 Open sides closed Type of mounting Screwed Certificate No. (CSA) 12400-127 Voltage size C (CSA) 600 V Current size C (CSA) 145 A Wire cross section max. (CSA) 2 AWG Wire cross section min. (CSA) 6 AWG Type of connection Screw connection Stripping length 20 mm Blade size 6.5 x 1.0 mm Connection direction on side Number of connections 2 Clamping range, rated connection, min. 6 mm² Clamping range, rated connection, max. 50 mm² Clamping screw M 6 Tightening torque, min. 4 Nm Tightening torque, max. 6 Nm Gauge to IEC 60947-1 B9 Wire connection cross section, solid core, max. rated connection 6 mm² Wire connection cross section, solid core max. rated connection 16 mm² Wire connection cross section, stranded, rated connection, min. 16 mm² Wire connection cross section, stranded, rated connection, max. 50 mm² Wire connection cross section, finely stranded, max. 35 mm² Wire connection cross-section, finely stranded, min. 10 mm² Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min. 10 mm² Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max. 35 mm² Wire connection cross section AWG, min. AWG 8 Wire connection cross section AWG, max. AWG 2 Rated cross-section 35 mm² Rated voltage to adjoining terminal 800 V Rated impulse withstand voltage to adjacent terminal 8 kV Standards IEC 60947-7-2 Pollution severity 3 Certificate No. (UR) E60693 Conductor size Factory wiring max. (UR) 2 AWG Conductor size Factory wiring min. (UR) 6 AWG Conductor size Field wiring max. (UR) 2 AWG Conductor size Field wiring min. (UR) 6 AWG Insulating material PA 66 Material PA 66 Colour Yellow, Green UL 94 flammability rating Product family SAK Series Type of connection Screw connection Connection direction on side Number of levels 1 Number of connections 2 No. of clamping points per level 2 Levels cross-connected internally No Mounting rail TS 32 End cover plate required No ETIM 3.0 EC000901 UNSPSC 30-21-18-11 eClass 5.1 27-14-03-05 eClass 6.2 27-14-03-05 eClass 7.1 27-14-03-05 ROHS Conform

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Weidmuller
Type	Terminal Blocks
Model	EK 35
Item_Condition	New
MPN	EK35
EAN	4008190187972
Country/Region of Manufacture	Germany
