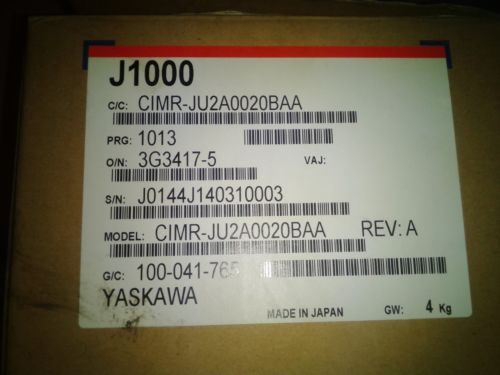

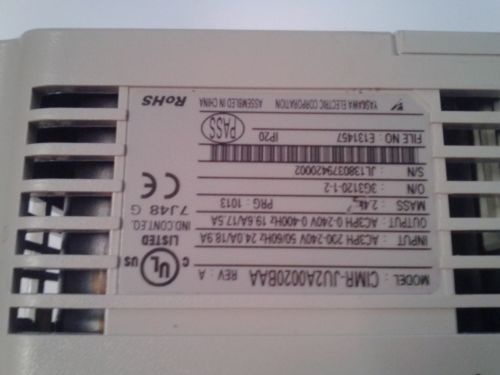

New Yaskawa J1000 Drive Cimr-ju2a0020baa 200-240v 3-phase 5/5hp

US $570

Lakeland, Florida, United States
Jun 9th

Open on mobile:
QR code

Performance Features • Ratings: 1/8 to 3 HP at 200-240 VAC 1-Ph. 1/8 to 5 HP at 200-240 VAC 3-Ph. 1/2 to 7.5 HP (ND) at 380-480 VAC 3-Ph. • Overload Capacity: 150% for 60 sec. (Heavy Duty) 120% for 60 sec. (Normal Duty) • Control Methods: V/f Control • DC injection braking, ramp to stop • Electronic reversing • Adjustable accel/decel: 0.0 to 6000.0 seconds • Controlled speed range: 40:1 • Speed Regulation: ± 0.5 to 1% with slip compensation • Displacement power factor: 0.98 • Output frequency: 0 to 400 Hz • Frequency resolution: 0.01 Hz with digital reference 0.06 / 60 Hz with analog reference • Frequency accuracy: 0.01% with digital command 0.5% with analog command • Volts / hertz ratio: infinitely adjustable pattern • DC Injection braking: adjustable amplitude, duration, current limited • Torque boost: full range, auto • Power loss ride-thru: 0.5 sec. • Speed search • Auto restart • 2 Critical frequency rejection settings • Slip Compensation Design Features • 16-bit microprocessor logic • Digital keypad operator, 5 digits • LED status display • Remote Mount Keypad Capability • 5 multifunction digital inputs • 1 multifunction digital output • Programmable form C output contact for customer use: 1A at 250 VAC or 30 VDC • 24 VDC control logic compatible with sourcing or sinking outputs (PNP or NPN) • Carrier frequency: 15 kHz max; swing PWM • 8 multi-speed settings plus jog speed • 1 Remote speed reference: 0-10 VDC (20 kohms) or isolated 4-20 mA (250 ohms) • Signal follower: bias and gain • Analog monitor output: • 0-10 VDC proportional to output frequency or output current • Approximately 140 parameters and monitors • Cooling fan controlled by drive run/stop • UL recognized electronic overload • MTBF: 28 years • Built-in Dynamic Braking Transistor • Protected Chassis • Side-by-Side mounting • Maintenance monitors Protective Features • Current limit, stall prevention during accel, decel, and run • Motor and drive overload • Over voltage prevention function • Instantaneous over current • Short circuit • Under voltage • Heatsink overheat • Ground fault protection • Over/under torque • Short circuit current rating: 30kA rms sym. Service Conditions • Ambient service temperature: -10° to 50°C (+14° to 122°F) • Ambient storage temperature: -20° to 60°C (-4° to 140°F) • Humidity: to 95% non-condensing • Altitude: to 3300 ft; higher by derating • Service factor: 1.0 • Input voltage: -15% to +10% 200 to 240 VAC, 380 to 480 VAC • Input frequency: +/-5%; 50/60 Hz • Input phase sequence insensitive Options • Dynamic Braking resistor (external) • Remote LED Operator w/ copy function • Modbus 232/422/485 Communications • Analog Potentiometer Card • DriveWizard Plus • DIN rail mounting kit • USB Copy Unit (Y-Stick) • Reactors, 3% and 5% • EMC filters, C1 and C3 Standards • UL 508C (Power Conversion) • CSA 22.2 No. 14-95 (Industrial Control Equipment) • UL, cUL listed; CE marked • RoHS compliant • EN 50178 (LVD) • EN 50081-2, EN 50082-2 (EMC) • EN 61800-3 • IEC 529, 146 • FCC CFR 47 Part 15 Subpart B (w/ External Filter)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Yaskawa Electric
Model	j1000
