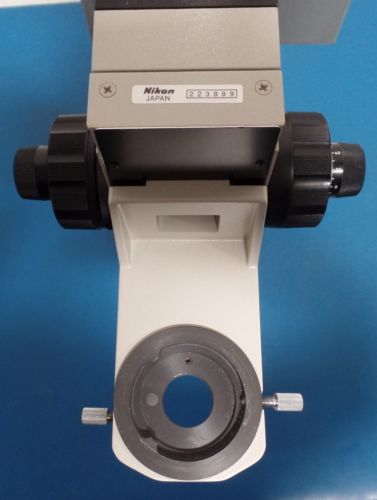

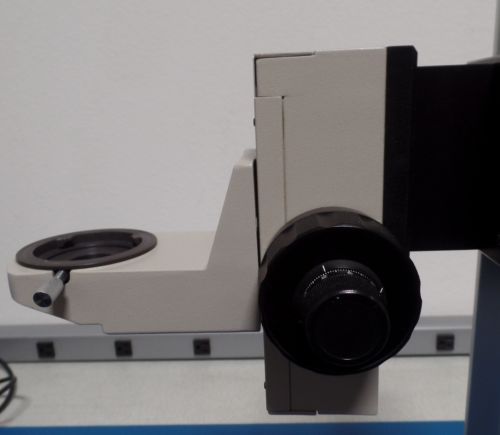

Newport Qty X 2 M-umr12.40 Linear Translation Stages W/ Nikon Microscope Stand

US $975.00

Laguna Hills, California, United States
Jan 30th

Open on mobile:
QR code

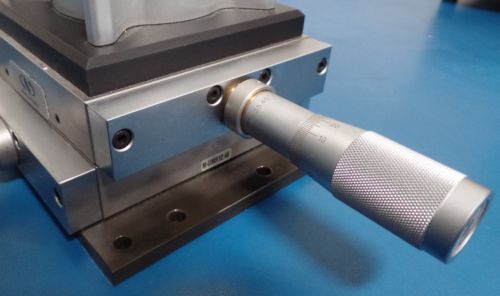

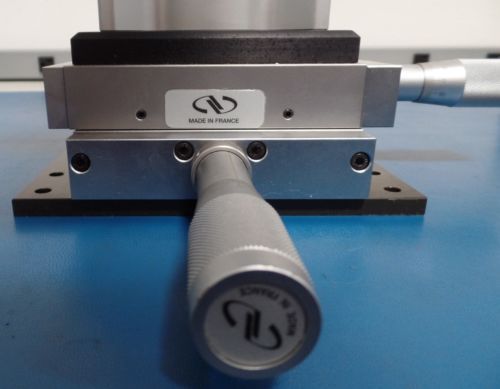

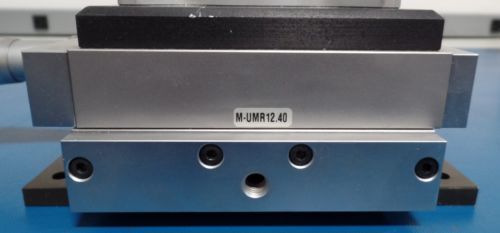

Newport M-UMR12.40 Linear Translation Stages Qty x 2 w/ Nikon Microscope Stand The M-UMR12.40 Precision Single-Row Ball Bearing Metric Linear Stage features steel construction for high stability and rigidity. The ball bearings and precision-ground bearing surfaces provide exceptional linear travel, with angular deviation better than 100-200 µrad. UMR12 Series Stages have single-row ball bearings making them an excellent choice for carrying high loads up to 400 N. The moving carriage is preloaded by two springs to ensure constant micrometer contact for smooth, backlash-free motion over a 40 mm travel range. Multiple drive options cover the range of precision positioning. Standard BM Series Micrometers provide 1 µm sensitivity, while DM Series Differential Micrometers offer 0.1 µm. For coarse motion with position locking, a fixed positioning kit replaces the micrometer with two opposing adjustment screws and lock nuts. An optional carriage locking kit includes a screw that mounts in the stage body opposite the micrometer. Motorized actuators can be added for precision motion control. Generous hole patterns allow great flexibility in component placement on the stage mounting surface. Two stages can be easily stacked in an XY configuration and mounted to a table or breadboard. Multi-axis stage configurations are easily assembled using EQ Series Angle Brackets. UMR Stages are compatible with UTR and URM Rotation Stages, BGM Goniometers, and SL Series Mirror Mounts. Travel Requirements: > 1.0 in. (25.4 mm) Axes of Travel: X Travel: 1.57 in. ( 40 mm) Load Capacity: 400 N ( 90 lb) Bearings: Double-Row Ball Bearings Material: Steel Thread Type: M5, M6, M18 Load Capacity, Vertical: 100 lb ( 440 N) Load Capacity, Centered with BM Micrometer: 450 N Base Material: Alloy Steel Angular Deviation: <200 µrad Tested, guaranteed to work. 14-Days Right-of-Return. No manual or other accessories other provided. CA residents add 8% CA State Sales Tax. Please contact sales@gstestequipment.com or call (949) 679-5561

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Newport
Model	M-UMR12.40A
