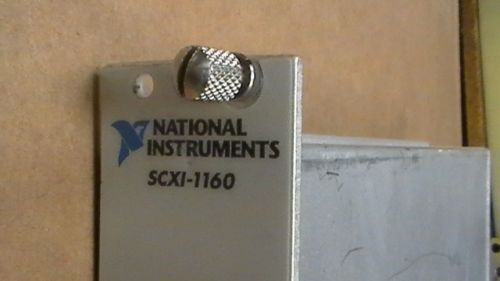

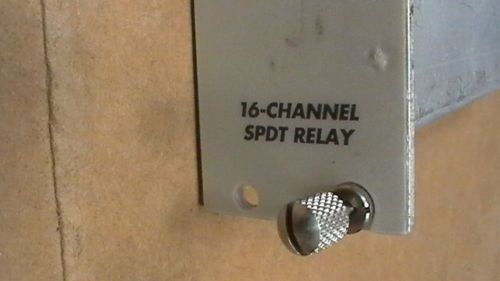

NI National Instruments SCXI-1160 16-Channel SPDT General Purpose Relay Module We gladly ship worldwide! NI National Instruments SCXI-1160 16-Channel SPDT General Purpose Relay Module 16 Form C relays 250 Vrms contact-to-coil isolation For general-purpose switching and controlling external devices Up to 2 A (250 Vrms/30 VDC) Up to 50 cycles/s (low-level loads) The National Instruments SCXI-1160 is a general-purpose switching module consisting of 16 independent SPDT (also called Form C) latching relays with very low on-resistance and low thermal offset. With power capabilities of up to 2 A at 250 Vrms or 30 VDC, these relays are suitable for switching, routing, and controlling medium-level signals. Each channel has a normally closed (NC), normally open (NO), and common (COM) terminal. You can use two or more SCXI-1160s (and SCXI-1161s) in the same chassis with a single DAQ device or switch controller. The DAQ device controls these SCXI modules through serial communication over the SCXIbus in the backplane of an SCXI chassis. The NI 4021 switch controller or the NI 4070/4060 DMMs control these SCXI modules via the SCXI-1362 cable assembly. Specifications Summary General Product Family Switches Form Factor SCXI Part Number 776572-60 Operating System/Target Real-Time , Linux , Windows LabVIEW RT Support Yes Triggering Digital Synchronization Bus (RTSI) Yes External Clocking No Length 19.8 cm Width 17.3 cm Height 3 cm I/O Connector 48-pin female DIN Slot Two Module No Module Width 1 MXI Compatible No Product Name SCXI-1160 Switches Switch Type General-Purpose Relay Max Switching Voltage DC (Pollution Deg. 2) 250 VDC Maximum Switching Voltage AC 250 Vrms Max Switching Current 2 A Maximum Carry Current 2 A Maximum Switching Power 60 W Bandwidth 1 MHz Relay Type Electromechanical Relay Count Tracking No Voltage Category CAT II Product Certifications UL - Product Safety , CE , CAN/CSA , IEC , C-Tick , FCC Part 15 Path Resistance (Typical) 75 mOhm Thermal EMF 3 Number of Relays 16 Relay Form SPDT Scan Rate 50 cycles/s used in good condition Don't forget to place your bid. By bidding on this auction you agree to the following terms: Shipping Terms: Buyer pays all shipping costs. Let us know if there is an issue with the shipping costs, as they are automatically calculated by ebay. Shipments made to California must include 8.75% sales tax unless we are provided with a valid resale certificate. We reserve the right to ship with Fedex ground, USPS and any other carrier in the best interests of the buyer and seller. The Parcel post option is only available to alaska, Hawaii, and US territories only. If you select parcel post and you live in the lower 48 states you package may be sent by another carrier and/or an additional shipping amount may be required. If the shipping cost quoted is over $150, that means it will be shipped freight, and the price quoted is for pickup at a freight terminal nearby your location (usually within 25 mi if you are in a major US city). if you need residential delivery, or if you don't have a forklift/loading dock the price will be higher in some cases. Payment Terms: Payment is to be made by PayPal Please contact us if you have any questions about ebay's recent payment policy change. Payment is to be received within ten days of close of auction. Should payment not be received within ten days the item will be re-listed and high bidder will forfeit. International Terms: (These terms only apply to international shipments.) Buyer is responsible for all brokerage, customs, and or duty charges. Not all items are available for international shipment due to import/export regulations. In the event that we are unable to ship to buyers country, buyer will receive a full refund. Payment must be made in US Dollars. Money must be drawn against a US bank. Warranty Terms: No warranty nor guarantee is expressed or implied regarding: usability, functionality, merchantability, or cosmetic appearance of the item(s) in auction. What you see in the picture(s) is what you get nothing more nothing less. Test results of item(s) in auction are described to the best of our ability in the ad. The results of all tests that are performed are disclosed in the ad. Items sold as "Untested" are simply that we have been unable to test the item(s) due to missing cables/adapters/toner cartridge/ksu/etc, lack of time, or other restrictions, Such as when we sell a laptop that we don't have an AC adapter for. Our only guarantee is that you will receive the make and model listed in the ad. The maximum liability of BigonBusiness (the seller) is the high bid of the auction. Return Terms: Returns are only allowed under cases of gross misrepresentation in the ad, such as when we describe a monitor as a fax machine. Such claims of misrepresentation must be filed within three days of receipt of shipment. Best Stuff To You reserves the right to replace the item(s) or refund the high bid solely at our discretion. Item must be returned in the original box and packaging. Bidder must request a RMA number before returning item(s). Packages returned without a RMA number will become property of Best Stuff To You ten days after receipt unless buyer has paid return shipping within the ten day period. Shipping Damage Terms: Seller will file a shipping claim(s) upon behalf of the buyer with common carrier in the event shipment(s) is/are damaged during shipping, provided bidder has purchased insurance. Not retaining the original box and packaging may affect the carriers decision on a claim. Seller will commence filing the claim once buyer has filed the damage report with the seller. Buyer must notify seller within 48 hours of receipt of a damaged shipment. If any provision of this Auction Contract is held unenforceable, All remaining provisions of this Contract shall remain in full force and effect. Copyright 2011 BigonBusiness - All Rights Reserved. Auction Wizard 2000 - The Complete Auction Management Software Solution
