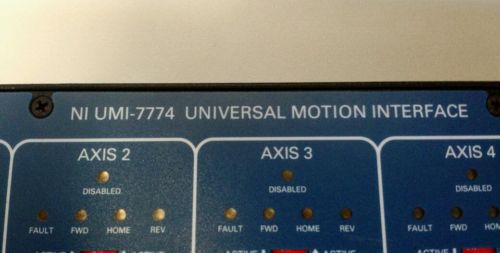

NI UMI-7774 2 and 4-Axis Universal Motion Interfaces, US $565.00 – Picture 0

NI UMI-7774 2 and 4-Axis Universal Motion Interfaces, US $565.00 – Picture 1

Ni Umi-7774 2 And 4-axis Universal Motion Interfaces

US $565.00

Brownsville, Texas, United States
Apr 30th

Open on mobile:
QR code

NI UMI-7774 National Instruments 2 and 4-Axis Universal Motion Interfaces for Industrial ApplicationsOverview and Applications For connectivity to third-party power drives, use a National Instruments UMI interface. These products provide a comprehensive wiring and connection point for motion control and feedback signals. A single cable from the motion controller to the UMI carries input and output signals for all axes. By dividing these signals into per-axis and function-specific connections, the UMI interface simplifies integration of third-party drivers, amplifiers, encoders, limits, and I/O with NI controllers. Each UMI works with up to 20 MHz quadrature encoder rates. Each UMI incorporates a host PC power monitor that inhibits the motion driver if the host PC loses power during motion control. The UMI monitors the +5 VDC from the PC and activates the inhibit signals if the voltage falls out of tolerance. Features Enhanced motion-specific features set the UMI apart from simple connector-only screw terminal blocks. Compatibility with both TTL and differential encoders, input filtering, host-PC power monitoring, onboard inhibit functionality, and compact size make the UMI the ideal motion interface solution. The result is simplified wiring to third-party amplifier/driver and motor components. Refer to ni.com/motion for integrated amplifier, power supply, and connectivity solutions. Some signals have compatibility defined as signal pass-through, which means the UMI may have passive filtering on these signals but voltage range or current handling capabilities are not affected. Consult your motion controller specifications to determine the allowable voltage range and logic level compatibility of the sign. New Condition What you see in the picture(s) is what you will receive We accept Shipping USA only. We accept PayPal only. Fastest and safest way for making a payment.
