NISB Omega Bridge Input Signal Conditioner DRC-4710 0-10VDC output, US $200 – Picture 0
NISB Omega Bridge Input Signal Conditioner DRC-4710 0-10VDC output, US $200 – Picture 0

Nisb Omega Bridge Input Signal Conditioner Drc-4710 0-10vdc Output

US $200

  • Dayton, Ohio, United States
  • Jun 9th
Open on mobile:
QR code
The DRC-4710 DIN rail mount signal conditioner is a self-contained DC powered module designed for bridge input (load cell, strain gage) or voltage input (not connected to a bridge, excitation supply not used). This signal conditioner contains a precision instrumentation amplifier, filtered output and a built-in 10V excitation supply capable of driving a 350 ? bridge. The 0 to 30 mV input range makes the DRC-4710 compatible with most strain gage based load cell or pressure transducer outputs. Connections are made via easily accessible screw terminal blocks. Zero and Span adjustment potentiometers are located externally as well for easy access. Specifications INPUT Input Range: 0 to 10 mV, 0 to 20 mV, 0 to 30 mV (dip switch selectable) Linearity: ±0.01% Temperature Coefficient: 0.05%/°C Input Offset Voltage: ±70 µV Input Offset Voltage Temperature Coefficient: 0.7 µV/°C Common Mode Voltage: 0 to 5V Common Mode Rejection (DC): 100 dB Input Noise: 0.3 µV pp typ (0.1 to 10 Hz) OUTPUT Output Range: DRC-4710: 0 to 10 Vdc Load Current (DRC-4710): 5 mA max Frequency Response (2-Pole Filter): DC to 10 Hz Total RMS Gain Temperature Coefficient: 0.007%/°C BRIDGE EXCITATION SUPPLY Fixed Output: 10V ±1.5% Temperature Coefficient: 0.05%/°C Load Current: 30 mA max GENERAL Power: 18 to 26 Vdc Power Consumption (One 350 ? Bridge): DRC-4710: 0.96 W (40 mA @ 24 Vdc) Operating Ambient: 0 to 55°C (32 to 131°F) Storage Temperature: -40 to 80°C (-40 to 176°F) Dimensions: 96 H x 27 W x 42 mm D (3.78 x 1.06 x 1.65") Weight: 85 g (3 oz)

Directions

Similar products from Pressure & Temperature Transmitters

Amprobe ACF-3000DM-A Current Transducer

Amprobe ACF-3000DM-A Current Transducer

  • USA, United States
  • Jun 9th
CR Magnetics CR6240-500-20 AC Power Transducer with 3-Phase and 3-Wire Active

CR Magnetics CR6240-500-20 AC Power Transducer with 3-Phase and 3-Wire Active

  • USA, United States
  • Jun 9th
CR Magnetics CR4820-150 Average RMS AC Voltage Transducer with Single Element,

CR Magnetics CR4820-150 Average RMS AC Voltage Transducer with Single Element,

  • USA, United States
  • Jun 9th
CR Magnetics CR5220-10 DC Hall Effect Current Transducer with Single Element,

CR Magnetics CR5220-10 DC Hall Effect Current Transducer with Single Element,

  • USA, United States
  • Jun 9th
CR Magnetics CR5310-150 DC Voltage Transducer with Single Element, DC, >=2K

CR Magnetics CR5310-150 DC Voltage Transducer with Single Element, DC, >=2K

  • USA, United States
  • Jun 9th
CR Magnetics CR4570-150 True RMS AC Voltage Transducer with 3 Phase and 4 Wire,

CR Magnetics CR4570-150 True RMS AC Voltage Transducer with 3 Phase and 4 Wire,

  • USA, United States
  • Jun 9th
CR Magnetics CR4220S-100 Split Core Loop-Powered AC Current Transmitter with

CR Magnetics CR4220S-100 Split Core Loop-Powered AC Current Transmitter with

  • USA, United States
  • Jun 9th
CR Magnetics CR5210-100 DC Current Transducer with Single Element, DC, >=2K

CR Magnetics CR5210-100 DC Current Transducer with Single Element, DC, >=2K

  • USA, United States
  • Jun 9th
NK Technologies ATR1-420-24L-SP RMS Current Transducer, Split-core, 4-20mA

NK Technologies ATR1-420-24L-SP RMS Current Transducer, Split-core, 4-20mA

  • USA, United States
  • Jun 9th
ASI x756526 Slim Line Single Channel Loop Powered Analog Signal Isolator

ASI x756526 Slim Line Single Channel Loop Powered Analog Signal Isolator

  • USA, United States
  • Jun 9th
ABB WaterMaster HART MJFA9902

ABB WaterMaster HART MJFA9902

  • muang, samutprakarn, Thailand
  • Jun 9th
Foxboro Temperature Transmitter E94 0-100C, tested, calibrated,1 year warranty

Foxboro Temperature Transmitter E94 0-100C, tested, calibrated,1 year warranty

  • Montreal, Quebec, Canada
  • Jun 9th
HONEYWELL / HART TRANSMITTER MOD:YST G974-/E1A-00000-1C.DN.HC-B7AN NEW OLD STOCK

HONEYWELL / HART TRANSMITTER MOD:YST G974-/E1A-00000-1C.DN.HC-B7AN NEW OLD STOCK

  • Covington, Tennessee, United States
  • Jun 9th
ABB HART 2600T PRESSURE SN:6207002176 4-20MA PLUS ART POWER 10.5TO 42VDC NEW

ABB HART 2600T PRESSURE SN:6207002176 4-20MA PLUS ART POWER 10.5TO 42VDC NEW

  • Covington, Tennessee, United States
  • Jun 9th
ABB HART 2600T PRESSURE TRANSMITTER SN:6207003166 MWP:3045PSI NEW

ABB HART 2600T PRESSURE TRANSMITTER SN:6207003166 MWP:3045PSI NEW

  • Covington, Tennessee, United States
  • Jun 9th
ABB HART 2600T PRESSURE TRANSMITTER SN:6404002632 10.5-42VDC NEW

ABB HART 2600T PRESSURE TRANSMITTER SN:6404002632 10.5-42VDC NEW

  • Covington, Tennessee, United States
  • Jun 9th
ABB HART 600T PRESSURE TRANSMITTER SN:03W012348 10.5 TO 55VDC NEW OLD STOCK

ABB HART 600T PRESSURE TRANSMITTER SN:03W012348 10.5 TO 55VDC NEW OLD STOCK

  • Covington, Tennessee, United States
  • Jun 9th
ABB HART 2600T PRESSURE TRANSMITTER SN:6410003742 CODE:264DSASHA2A1 NEW

ABB HART 2600T PRESSURE TRANSMITTER SN:6410003742 CODE:264DSASHA2A1 NEW

  • Covington, Tennessee, United States
  • Jun 9th
ABB HART 2600T PRESSURE TRANSMITTER SN:6208000333 3045PSI 4-20MA PLUS HART NEW

ABB HART 2600T PRESSURE TRANSMITTER SN:6208000333 3045PSI 4-20MA PLUS HART NEW

  • Covington, Tennessee, United States
  • Jun 9th
ABB HART 2600T PRESSURE TRANSMITTER SN:6410009669 OVP:2030PSI 4/20MA+HART NEW

ABB HART 2600T PRESSURE TRANSMITTER SN:6410009669 OVP:2030PSI 4/20MA+HART NEW

  • Covington, Tennessee, United States
  • Jun 9th

People who viewed this item also vieved

Reptech Pressure Gauge NEW

Reptech Pressure Gauge NEW

  • Pompano Beach, Florida, United States
  • Jan 29th
NEW SIMPSON 1357AC 30-150 AC Volt ANALOG PANEL METER

NEW SIMPSON 1357AC 30-150 AC Volt ANALOG PANEL METER

  • Sparks, Nevada, United States
  • Jan 29th
(4) MARSH/BELLOFRAM PRESSURE GAUGES J1852, 2.0" STD-C, 1/8 NPT, BRAND NEW

(4) MARSH/BELLOFRAM PRESSURE GAUGES J1852, 2.0" STD-C, 1/8 NPT, BRAND NEW

  • Greeley, Colorado, United States
  • Jan 29th
NEW METTLER TOLEDO 201001001 PRESSURE 0-10BAR 1/4IN NPT GAUGE D355482

NEW METTLER TOLEDO 201001001 PRESSURE 0-10BAR 1/4IN NPT GAUGE D355482

  • Delta, Ohio, United States
  • Jan 29th
NEW WEKSLER THERMOMETER BI-METAL 0-200F TEMPERATURE GAUGE D404786

NEW WEKSLER THERMOMETER BI-METAL 0-200F TEMPERATURE GAUGE D404786

  • Delta, Ohio, United States
  • Jan 29th
Weksler Pressure Guage 2 1/2" 0 To 100 PSI

Weksler Pressure Guage 2 1/2" 0 To 100 PSI

  • Savannah, Georgia, United States
  • Jan 29th
Dwyer Minihelic II zero 0 max. 30 psi **UNIT ONLY**

Dwyer Minihelic II zero 0 max. 30 psi **UNIT ONLY**

  • Hudson, New Hampshire, United States
  • Jan 29th
Panametrics moisture monitor series 35

Panametrics moisture monitor series 35

  • Cookeville, Tennessee, United States
  • Jan 29th
Weston Simpson Tapecaster ~ Analog Panel Meters ~ Lot of 9 ~ One Appears NIB ?

Weston Simpson Tapecaster ~ Analog Panel Meters ~ Lot of 9 ~ One Appears NIB ?

  • Lumberton, North Carolina, United States
  • Jan 29th
VINTAGE DC MILLIAMPERES METER WESTON ELECTRICAL MODEL 62

VINTAGE DC MILLIAMPERES METER WESTON ELECTRICAL MODEL 62

  • Ashkelon, default, Israel
  • Jan 29th
NEW GENERAL ELECTRIC PERCENT LOAD PANEL METER 0-150 MODEL50-250420LCLCJBU

NEW GENERAL ELECTRIC PERCENT LOAD PANEL METER 0-150 MODEL50-250420LCLCJBU

  • Rochester, New York, United States
  • Jan 29th
GENERAL ELECTRIC AC CURRENT PANEL METER 0-1600 AMP MODEL 50-171141LSVE1

GENERAL ELECTRIC AC CURRENT PANEL METER 0-1600 AMP MODEL 50-171141LSVE1

  • Rochester, New York, United States
  • Jan 29th
NANMAC TEMPERATURE PANEL 1000F FAHRENHEIT 500C CELSIUS METER CONTROL KIT B208004

NANMAC TEMPERATURE PANEL 1000F FAHRENHEIT 500C CELSIUS METER CONTROL KIT B208004

  • Buffalo, New York, United States
  • Jan 29th
YOKOYAWA GE/YCA250-320-SJSJ PANEL METER 0-600 *NEW IN A BOX*

YOKOYAWA GE/YCA250-320-SJSJ PANEL METER 0-600 *NEW IN A BOX*

  • Camarillo, California, United States
  • Jan 29th
Lot of 2 (two) Gage Compugen 1100 Analog Output Cards CG 1100 Guaranteed!

Lot of 2 (two) Gage Compugen 1100 Analog Output Cards CG 1100 Guaranteed!

  • Bellefonte, Pennsylvania, United States
  • Jan 29th
Cole Palmer pH/ORP Controller Model 5656-00

Cole Palmer pH/ORP Controller Model 5656-00

  • McDonough, Georgia, United States
  • Jan 29th
Industrial Electronic Indicator Housing P/N 120052-000 In-Line Readout

Industrial Electronic Indicator Housing P/N 120052-000 In-Line Readout

  • Virginia Beach, Virginia, United States
  • Jan 29th
Schneider Push Button XB4BW34B5 New in box ! QTY 10 Per Lot !

Schneider Push Button XB4BW34B5 New in box ! QTY 10 Per Lot !

  • Beijing, China
  • Jan 29th

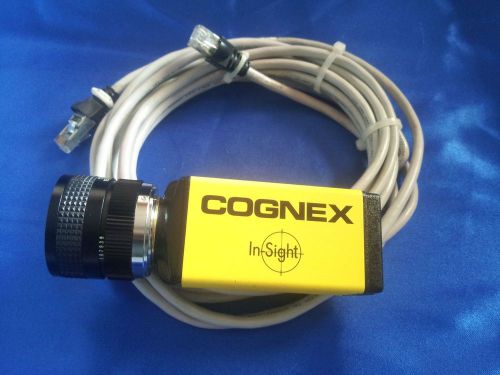

COGNEX 800-5715-1 REV-G 1:1.8 INSIGHT CAMERA C/W LENS
