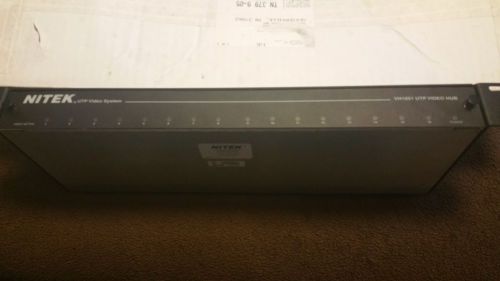

NITEK UTP Video HUB, US $1,900.00 – Picture 0

NITEK UTP Video HUB, US $1,900.00 – Picture 1

Nitek Utp Video Hub

US $1,900.00

Sevierville, Tennessee, United States
Feb 15th

Open on mobile:
QR code

** This Has Been Opened & Out Of The Box For Sale Purposes Only** The VH1651 is a 16 port active video hubs with dual outputs, built-in surge suppression, ground loop isolation, gain/loss control, and video detection. Systems operate with other Nitek UTP video equipment including, video transceiver hubs, standard video balun transceivers, active transmitters, or any twisted pair equipped camera. Multi-channel video receiver hubs provide excellent video quality through two video outputs per channel. Twisted pair installations are made with a choice of the standard screw terminal connections, or the modular jack connections featured on the M series. The VH1651 can receive video up to 1,500 feet (450 meters) when used with passive transmitters. These hubs provide superior immunity from noise and interference, even when run in common raceways with AC power. Size 1 RU x 6.0" (D) Power Requirements 12-24 VAC/VDC @ 550mA (Wall transformer provided with unit) Video Input Balanced low voltage current loop Video Output 1 Vpp composite video monochrome or color Common Mode Rejection >70dB Video Format RS170, NTSC, PAL, SECAM, CCIR (Color or B/W) Twisted Pair Connection Screw terminals providing balanced low voltage current loop Output Connection Dual BNC Connecotrs Wire Size 26 to 12 AWG Unshielded Twisted Pair Operating Frequency DC to 10 MHz Recommended Transmission Distance Up to 1,500 feet (450 meters) w/passive baluns Transient Immunity Built-in Temperature Range -20 degrees C to +55 degrees C Humidity Range 0 to 98% non-condensing Enclosure Type Standard 19" rack 1 RU in height Shipping Weight 8 lbs Wire Spec 26 to 12 AWG Unshielded Twisted Pair (UTP) DC Loop Resistance 51 Ohms/1,000 max (max) (51 Ohms/300 meters) Normal Capacitance 17pF/ft. Impedance 100 Ohms +/- 20% UTP Category 2 or better

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Type	Nitek Video Hub
Model	VH1651
Brand	Nitek
