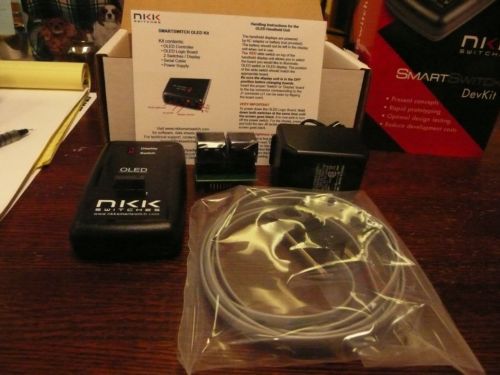

NKK Switches IS-Dev Kit 7 OLEO Pushbutton development kit, US $180.00 – Picture 0

NKK Switches IS-Dev Kit 7 OLEO Pushbutton development kit, US $180.00 – Picture 1

Nkk Switches Is-dev Kit 7 Oleo Pushbutton Development Kit

US $180.00

Wellington, Ohio, United States
Jan 29th

Open on mobile:
QR code

NKK SwitchesDev Kit 7Complete as from mfg. Opened only for picturesGeneral Features The IS-Dev Kit-7 is a two OLED SmartSwitches (ISC15ANP4) Development kit. The IS-Dev Kit-7D Version is a two OLED SmartDisplays (ISC01P) Development kit. The IS-Dev kit-7D additionally has a JB switch below each OLED SmartDisplay. The CL04 controller is used in these development Kits as well as IS-DEV KIT-8. For complete features of the CL04 controller refer to IS-CL04R user manual. In this document we refer to both OLED Smart Switch and OLED Smart Display as OLED Switch. Below are current features: • IS-Dev Kit-7 controls two OLED (64x48) SmartSwitches (ISC15ANP4). • Pushbutton functionality on each SmartSwitch. o RGB color OLED display with a resolution of 64x48 pixels. • IS-Dev Kit-7D controls two OLED (52x36) SmartDisplays (ISC01P). o JB switches below SmartDisplays for control. o RGB color OLED display with a resolution of 52x36 pixels. • Power from 9V battery or AC power supply. (9V battery not included). • On board microSD Flash that can hold up to 65,536 images. • Adjustable audio feedback when a switch is pressed. • Software control for 16 levels of brightness setting to extend OLED life. • User programmable for images, attributes and set-ups. • Real-time control by host. o Commands to direct the controller to display any of 65535 images o Command to send characters so controller create images for the displays o Commands to check various statuses of the controller o Report switch activities to host o Report the address of any new image displayed to host • Stand-alone operation o Set up the controller to function based on switch presses. o Set up to the controller to function based on timer expire. o Report switch activities to host o Report the address of any new image displayed to host • Serial communication via RS232 (57.6K, 1 start bit, 8 bit, 1 stop bit). • Set the type of activity reports from the controller to host. • Power requirement: 5V to 12V at 100 mA Max • Controller board firmware can be customized based on customer requirements.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	NKK
Model	IS-DEV Kit 7
