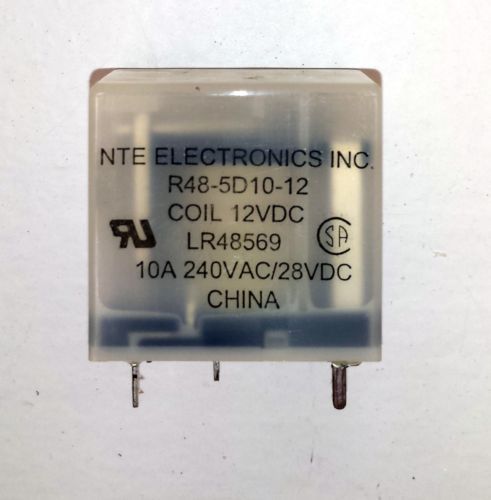

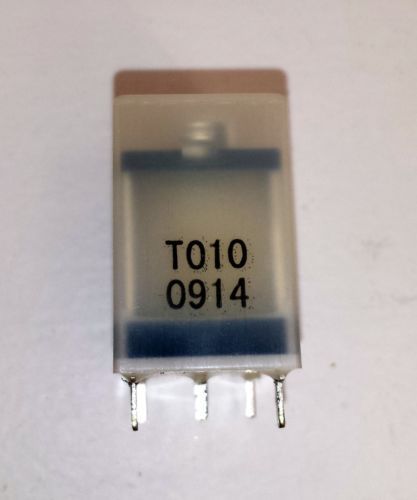

Nte R24 Series Relay

US $25.99

Saint Petersburg, Florida, United States
Jan 29th

Open on mobile:
QR code

"Over 20 years in Autoclave and Dental Repair" Clave Dynasty, LLC Presents: *DynastyLiquidation* You are bidding on a NTE Electronics Inc. Relay! Item Features: • Epoxy Sealed for Wave Soldering & Cleaning • Upright (V Suffix) or Flat–Pack (FP Suffix) Types • High Dielectric – 4000 VRMS between Control and Switching Circuits • Cut–Off Nib after PCB Washing • 94 V–0 Enclosure Electrical Specifications: Contact Rating Resistive Load: 10 Amp @ 380 VAC max switching (Upright) 8 Amp @ 250 VAC max switching (Flat–Pack) Contact Material: Silver Cadmium Oxide (Upright) Silver, Gold Flashed (Flat–Pack) Contact Resistance: .03 Ohms Max. initial (Upright) .05 Ohms Max. initial (Flat–Pack) Coil Coil Voltages: See Chart Pick–up Voltage: 80% of nom voltage or less @ 25°C Drop–out Voltage: 10% of actual pull–in (min) Resistance: See chart Min Sensitivity: 400 mW Nominal Power: 600 mW Operational Characteristics Timing Values Operate Time: . . . . . Approx 6 mS (Upright) Approx 15 mS (Flat–Pack) Release Time: Approx 2 mS (Upright) Approx 10 mS (Flat–Pack) Max Switching Rate: 5 operations per second Insulation Characteristics Dielectric Strength Contact To Coil: 4000 VRMS Across Open Contacts: 1000 VRMS Resistance: Contact to Coil/Frame: 1000 megohms min. Across Open Contacts: 500 Megohms min. Coil To Frame: 1000 megohms Min. Environmental Characteristics Operating: –55°C to +70°C Mechanical Life: 5 x 106 operations min Weight Std: 15 gram approx Shipping ONLY to the Continental USA. We do participate in the eBay Global Shipping Program, if you are out of the States and interested in the item. All items will ship no later than 3 days of receiving payment but in most cases, 2 days :) Thank you for checking us out! We have a lot for sale &/or up for bid everyday, so be sure to look for more from us! *DynastyLiquidation* "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item." Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	NTE
Relay Type	General Purpose
Model	NTE R24-5D10-12FP
Manufacturer	NTE Electronics
Type	Relays
