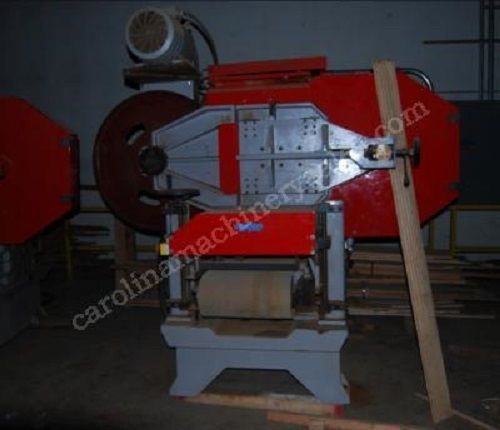

Ogden Re-Max 500 CNC Resaw(s) 2 available-Woodworking, US $15,000.00 – Picture 0

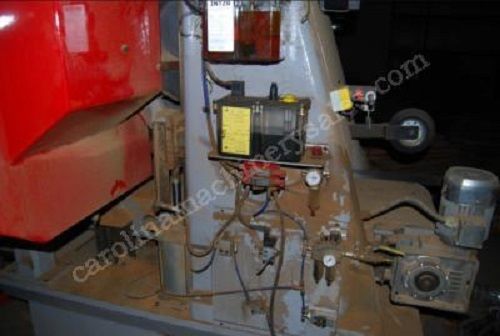

Ogden Re-Max 500 CNC Resaw(s) 2 available-Woodworking, US $15,000.00 – Picture 1

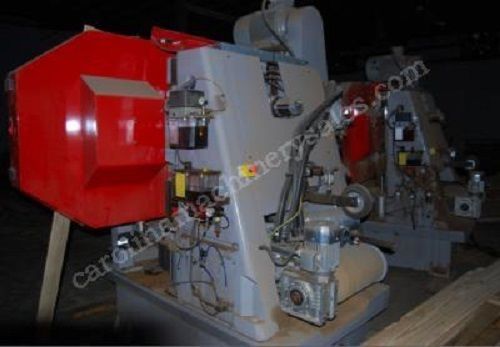

Ogden Re-Max 500 CNC Resaw(s) 2 available-Woodworking, US $15,000.00 – Picture 2

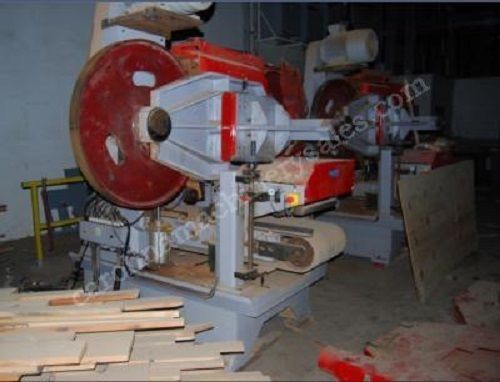

Ogden Re-Max 500 CNC Resaw(s) 2 available-Woodworking, US $15,000.00 – Picture 3

Ogden Re-Max 500 CNC Resaw(s) 2 available-Woodworking, US $15,000.00 – Picture 4

Ogden Re-max 500 Cnc Resaw(s) 2 Available-woodworking

US $15,000.00

United States
Jan 30th

Open on mobile:
QR code

CMS 4154 Woodworking-Saw-Resaw Manufacturer: Ogden Model: Re-Max 500 CNC Resaw YMFG: 2007 Condition: "As Taken From Service" Location: North Carolina Price: CALL There are (2) machines available without control cabinets - Buy individually or make a package deal! Designed to run individually or together with the CNC controls Handles material up to 500 mm (19”) wide, 150 mm (6”) thick Variable feed 6 to 60 m/min. (10 fpm to 200 fpm) Machine voltage: 3 phase (per customer specifications) Main motor: 22 kW (30 hp) Feed speed: 5 to 60 m/min. (16 to 200 ft/min.) Pulley diameter: 1000 mm (39”) Cutting angle: 0° to 15° Cutting width (adjustable): 350 mm (14”) Optional 500 mm 20" Cutting width (on demand): up to 500 mm (20”) Maximum cutting thickness: 150 mm (6”) Compressed air volume: 2 - 10 m3/h Water volume for fresh cutting: 2 - 3 l/h Width: 2806 mm (110”) Length: 2300 mm (90”) Height: 2448 mm (96”) Weight: 4000 kg (9000 lbs) Recommended body thickness: 0.7 to 1.0 mm (0.027” to 0.039”) Body width: 50 to 80 mm (1,95” to 3,15”) Maximum length: 6180 mm (243.3”) Minimum length: 6160 mm (242.5”) Minimum board length: 600 mm (24”) Minimum slat thickness: 2 mm (.080”) Saw kerf: from 1.25 mm (.049”) Dust hood: ø 160 mm (6.3”) Air speed: 25 m/s Compressed air – min.: 6 bar CONTACT; RALPH VIEGELMANN 704-288-1904 X 101 link to machine and video of machine running: http://www.carolinamachinerysales.com/?page=detail&id=used&machine=4154
