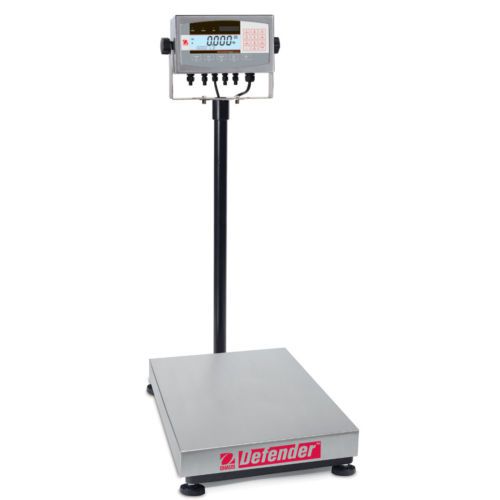

Ohaus D71xw300hx2 600lb 0.1lb Defender Advanced Xtreme Rectangular Bench Scale

US $1,827.00

Mission Viejo, California, United States
Mar 5th

Open on mobile:
QR code

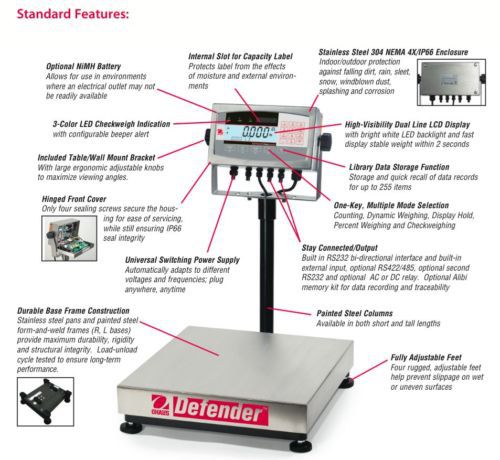

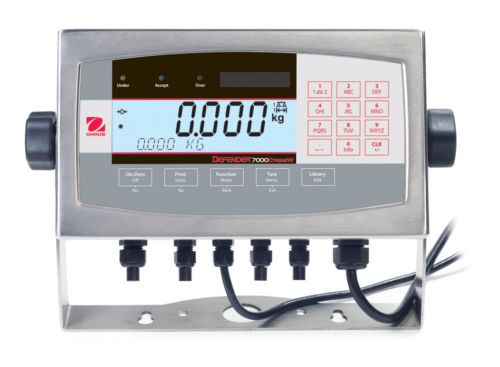

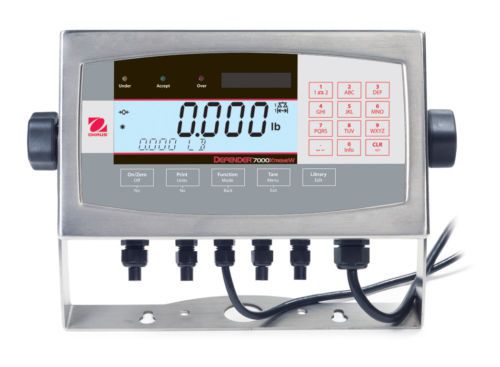

Advanced Smart Functionality, Durability, OHAUS Quality and Value NTEP CERTIFIED MEASUREMENT CANADA APPROVED The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining a stainless steel D71XW indicator with a rectangular, painted steel base and a painted steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations. Standard Features Include: All steel construction with stainless steel indicator and painted steel column and base • 5,000-7,500d default resolution • Certified resolution up to 1:3,000 • Quick display of results using large dual line LCD with high-contrast white backlight • Temporary display of 10x readability in weighing mode using quick key press • Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, Display Hold, and Accumulation • 255 item Library data storage function • Internal power supply with universal line cord or optional NiMH internal rechargeable power pack available • Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input for dual-base counting • Base and indicator connected using quick connect plug • Options include DC relay control kit, AC relay control kit, RS485/422 and 2nd RS232 interfaces, Alibi memory module The Defender 7000 Offers Multiple Features and Easy Configuration: To meet different operational needs, the Defender 7000 includes a suite of configurable software: • Counting mode for packaging and inventory control, enabling counting into a container or out of a container for bulk operations. Supports a maximum counting resolution to 1:500,000 (minimum APW equal to 0.1d), selectable auto-opti- mization of average piece weight (APW). APW data can be displayed at any time using a quick key press. • Percent Weighing mode for formulation and mixing applications, with display of reference weight with quick key press. • Dynamic/Animal Weighing with selectable averaging times from 0-60 seconds. • Checkweighing function for count and weight checking, with display of results using LCD display and red/yellow/green LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range. Target values can be displayed at any time using a quick key press. • Display Hold mode for weighing large packages, holds last stable weight on display until cleared manually or automatically • The Defender 7000 weighs in one or more user-selectable units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit • Supports GMP/GLP data output with date, time user ID, project ID and scale ID. The Defender 7000 features selectable print options for data and print format • Software lockouts for menu items as well as individual key functions to limit operator access to functions • Library storage for up to 255 memory records that may contain data from a combination of different modes. These refer- ence data can be quickly and conveniently recalled for use with the active mode. • Multi-language feature allows the user to display operation and menu text in the language of their choice: English, Spanish, French, German, Italian. This allows for convenience and ease of training and operation of the Defender 7000. • Accumulation mode with statistics feature allows totalizing weight and count values manually or automatically. The total accu- mulated value is displayed in real-time. With the press of the “Info” key, the number of weighments, average, standard devia- tion, minimum, maximum and difference are displayed. These statistical values can also be printed. • Dual scale connections are built-in for 2-scale counting configuration. Connect two bases, a higher resolution base to opti- mize average piece weight, in conjunction with a large capacity base to weigh/count in bulk. • Store, view and print over 262,000 date and time-stamped weighing results with the optional Alibi memory kit Features T71XW: Stainless steel water resistant NEMA 4X / IP66 housing, integral faceplate supports for easy servicing, backlit LCD weight display, checkweighing indication (green, yellow, red), membrane keypad with raised tactile keys, built-in bi-directional RS232 with manual/continuous/interval printing, external tare input, hardware configu- ration lockout switch, internal switching power supply with hardwired cord. Other Features Zero point calibration, calibration test, span or linear calibration, selectable auto-zero tracking range, selectable stability range, selectable averaging level, selectable LCD backlight, selectable auto shutoff, retain zero weight data after power-off, Geo gravity adjustment, selectable key beep, key function lock, menu lock, selectable power-on and calibration unit, battery status display, display of gross/net weight, indication of stability, center of zero, over- and underweight, overload and underload conditions. Configuration menus for PRINT1, PRINT2, COM1, COM2, and I/O. Options and Accessories AC Relay Kit 80500720 $241.00 DC Relay Kit 80500727 $207.00 RS485/422 Interface Kit 80500731 $67.00 Second RS232 Interface Kit 80500733 $50.00 Foot Switch 71173378 $12.00 Rechargeable Battery Kit, T71P/T71XW 80500729 $154.00 Compact Thermal Printer 80251992 $531.00 Alibi Memory Option Kit 80500503 $81.00 Paper for Printer, 80252042 (1 roll) 80251932 $12.00 Ribbon for Printer, 80252042 80251933 $37.00 RS232 Cable & Adapter, 80252042 Printer to T71XW 80252574 $146.00 RS232 Cable, PC 9 Pin to T71XW 80500552 $121.00 RS232 Cable, PC 25-pin to T71XW 80500553 $132.00 Compliance • Legal for Trade (Made from Certified/Approved weighing components): NTEP (CC No. 09-102 for indicator; 99-203A3 for bases) / Measurement Canada (Approval No. AM-5762 for Indicator; AM-5675 for bases) • Safety and EMC: cULus 2005/95/EC low voltage directive: EN60950-1:2001, FCC Part 15 Class A 2004/108/EC EMC directive: EN61326-1:1997; +A1:1998; +A2:2001; + A3>2003 • Other: Compliant to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE) • Quality: OHAUS quality management system registered to ISO 9001:2008

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Ohaus
MPN	80501364
Model	D71XW300HX2
