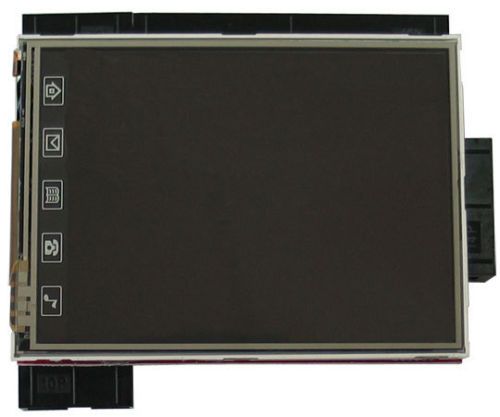

Olimex PIC32-MX460LCD Microchip prototype PIC32 LCD TFT320x240 board, US $150 – Picture 0

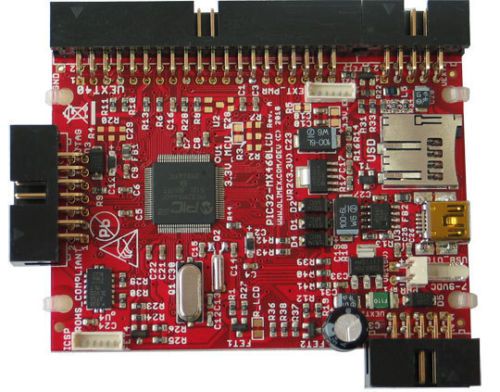

Olimex PIC32-MX460LCD Microchip prototype PIC32 LCD TFT320x240 board, US $150 – Picture 1

Olimex PIC32-MX460LCD Microchip prototype PIC32 LCD TFT320x240 board, US $150 – Picture 2

Olimex Pic32-mx460lcd Microchip Prototype Pic32 Lcd Tft320x240 Board

US $150

Northampton, United Kingdom
Mar 9th

Open on mobile:
QR code

The NEW PIC32 32 bit MIPS 4K core processor from Microchip offers speed and performance at low cost. This is entry level board with a PIC32MX460F512L microcontroller on it with 512 KB of Flash 32KB RAM, 80Mhz clock, UARTs, PWMs, DMAs. The board have both ICSP and JTAG connectors so it can be programmed with PIC-ICD2 or JTAG tool Do not use the "programmer-to-go" button when there is no image on the OLIMEX PIC-KIT3 or MICROCHIP PIC-KIT3 because that might put your microcontroller in an irrecoverable state. We have tested the mentioned scenario and we can confirm it destroys PIC32 chips (using both our and the original Microchip PICKIT3). We don't take responsibility if you break your chip that way. For more info check the following: www.microchip.com/forums/m635420.aspx. FEATURES PIC32MX460F512L microcontroller TFT 3.2"LCD 320x240 pixels Digital 3 axes accelerometer USB OTG uSD card Reset Circuit Power supply UEXT connector for other Olimex modules like MOD-MP3, MOD-NRF24Lx, MOD-SMB380, MOD-RFID125 etc. UEXT 40 to connect to MOD-GSM ICSP/ICD connector for programming with PIC-ICD2-POCKET. JTAG connector Quartz crystalls 8 Mhz and 32768 Hz Power plug-in connector 3.3V voltage regulator FR-4, 1.5 mm (0,062"), soldermask, white silkscreen component print Dimensions 79.2x57.6 mm (3.12x2.27") DOCUMENTS PIC32-MX460LCD.pdf - user's manual 3.2" LCD datasheet - ILI9325(new revisions) 3.2" LCD datasheet - ILI9320 (old revisions) HARDWARE PIC32-MX460LCD schematic PIC ICSP connector SOFTWARE PIC32-MX460LCD Demo software - includes LCD with touchsscreen support demo, USB device demo, accelerometer and RTC Powered by eBay Turbo Lister Business seller information Olimex Ltd Contact details Jason Moore Sweetacres The Knoll, Grendon Northampton Northamptonshire NN7 1JG United Kingdom Phone:01933|666989 Email:ebay@olimex.co.uk Trade Registration Number: 7280533 Value Added Tax Number: UK 991828568 Return policy To qualify for a hassle-free return, you must pay with PayPal and have the item shipped to a US address. The item must be returned in the same condition it was received. See terms and conditions - opens in a new window or tab. After receiving the item, open a return within Return shipping 14 days You pay return shipping

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	MPN	PINGUINO
Brand	Olimex
