Omega Ca71 Handy Cal Compact Multifunction Calibrator/simulator Ca71/s3

US $2200

Phoenix, Arizona, United States
Jun 9th

Open on mobile:

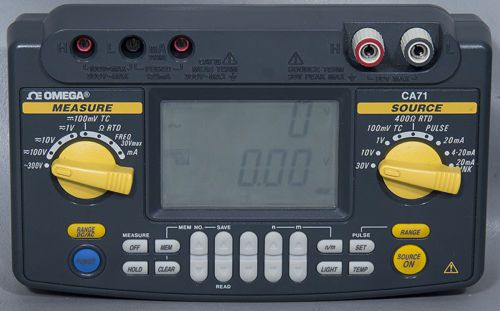

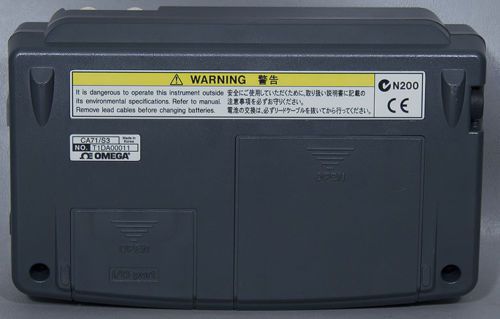

Omega CA71 HANDY CAL Compact Multifunction Calibrator/Simulator Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Omega and may vary slightly due to upgrades, options, or revisions this unit may or may not have. This unit is guaranteed to work for 30-days, parts and labor, excluding freight. The Unit's Serial Number Tag Reads: Model Number: CA71/S3 Serial Number: T1DA00011 Link to the Datasheet: Omega CA71 Calibrator/Simulator Datasheet Link to the Manual: Omega CA71 Calibrator/Simulator Manual Key Features: Simultaneously Source and Measure Voltage, Pulse, Current, Resistance, Thermocouple, RTD, Frequency Signals Autostep, Sweep, and Memory Functions Description: The CA71 Calibrator is a small, lightweight, multifunction calibrator that can simultaneously source and measure voltage, current, resistance, TC, RTD, frequency, and pulse signals. The Calibrator incorporates rotary switches for simple handling. Just open the carrying case cover and connect the cables, and you’re ready to take measurements. A wide array of useful functions are offered, including source (output can be set in steps): power; transmitter; divided (n/M, eliminating need for calculations for percentage output); autostep (changes can be sourced every 10% or 25%); online communication (RS232); sweep (linearly changes output over 16 or 32 seconds); memory (50 sets); and temperature monitor function. Specifications: Parameter Signal Generating Unit Response Time: Approx. 1 second Signal Generating Unit Voltage Limiter: Approx. 32 V Signal Generating Unit Current Limiter: Approx. 25 mA Divided Output (n/m) Function: Output = setting x (n/m) where n = 0 to m; m = 1 to 19; n x m Auto-Step Output Function: n value sent automatically when n/m function selection is selected (approx. 2.5 or 5 seconds/step) Sweep Function: Sweep time (approx 16 or 32 seconds) Memory Function: 50 value sets (generated and measured values) Measuring Unit Maximum Input: Voltage Terminal: 300 Vac Current Terminal: 120 mA DC Current Input: Fuses: 125 mA/250 V Measuring Unit Ground Voltage: Maximum 300 Vac Measurement Display Updating Rate: Approx. 1 second Serial Interface: Enabled via CA71-RS cable Display: Segmented LCD (approx. 76 x 48 mm) Backlight: LED backlight; auto-off Power Supply: 4 "AA" alkaline batteries Battery Life: Approx. 20-hr for measurement and voltage output (12-hr for current) Consumed Power: Approx. 7 VA (using 120 Vac adaptor) Auto Power-Off Function: Approx. 10 minutes (can be disabled) Applicable Standards: IEC61010-1, IEC61010-2-32; EN61326-1: 1997 + A1: 1998; EN55011: 1998, Class B, Group 1 Insulation Resistance: 500 Vdc, 50 MΩ or greater Withstand Voltage: 3.7 kVac, for 1 minute Operating Temperature and Humidity Ranges: 0 to 50°C, 20 to 80% RH (no condensation) Storage Temperature and Humidity Ranges: -20 to 50°C, 90% RH or less (no condensation) External Dimensoins: Approx 190 mm W x 120 mm H x 55 mm D (7.5" x 4.7" x 2.2") Weight: Approx. 730 g (1.6 lb) (including batteries) For More Pictures Please Click the Following: Picture 2 - Front View Picture 3 - Back View Picture 4 - Right Side View Picture 5 - Left Side View Picture 6 - Accessories Picture 7 - TC Accessory, Close-Up Picture 8 - Serial Number Tag For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $15.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 10/05/15 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.
