On-off Switch + Speed Regulation Dc Motor Speed Controller 1.8v-15v

US $166

hongkong, China
Mar 28th

Open on mobile:
QR code

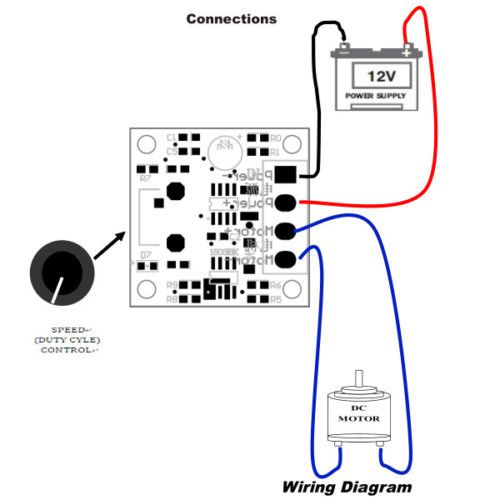

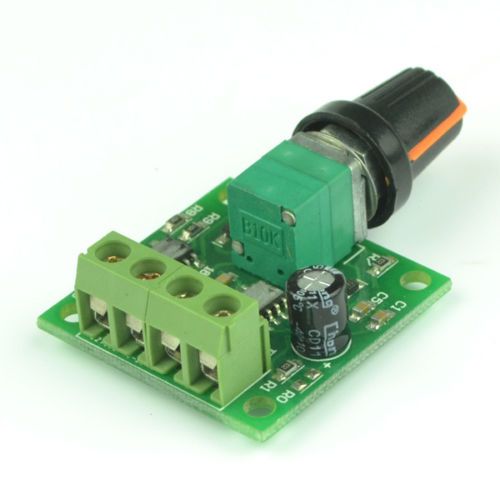

ON-OFF Switch + Speed Regulation DC Motor Speed Controller 1.8V-15V Description: ◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆ 1803B DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. The motor speed controller is with a self-recovery fuse 2A and a Power-On LED light. It can easily provide a continuous current of 2A to your DC motor or other DC load. Main technical parameters: ? Input supply voltage: 1.8V-15VDC The maximum output power: 30W The maximum continuous output current :2A Duty Cycle adjustable: 0%-100% Specifications: ? Item size: 32*32*15mm ◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆ Package: 1 x motor speed controller ◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆ Operating instruction: 1. Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram. 2. Connect a voltage of 1.8V-15V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse in line with the positive supply in order to protect the circuit from any possible short circuits. 3. You can now control the speed of the motor through potentiometer. Important Notes: An appropriately rated fuse (rated a little higher than the maximum current you expect to draw) is recommended to ensure safe operation. The controller is safe with a self-recovery fuse 2A. It will be damaged if connect the supply voltage with wrong polarity. Double check all connections before applying power and always turn off the power supply before making any wiring changes. Payment We accept paypal payment and only ship to the address on paypal payment (Gift address is OK!) Payment via PayPal should be made within 7-15 business days after auction close. Otherwise, we will relist the item and report an Unpaid strike. Delivery details We ship worldwide (NO China) at flat rate ! This price is the same to all over the world. We wll check each item clearly before we sent it out. All of our item shipment is Surface AIR MAIL have no track number, Item reach most countries within 16-20 days. (Actual transit time may vary and is best estimated but not guaran- teed.) ;if need track number need add 5 usd for the ship cost. If you can't get the post after 30 days from the day we sent to you , please contact us directly . We would be with you to resolve the case. Please trust us, we will provide best service with honest attitude. Please make sure your shipping Address is Correct. We only ship to the confirmed address provided by Paypal. Before you pay, please make sure your address in Paypal matches the address you would like us to ship to. Buyers need to pay S&H again for reshipping the item (except the wrong buyer address is wrote by us). We promise each item would be shipped, but sometimes less than 0.5% packages might be lost in the way, you could choose to let us send another same item again or ask for money back. Shipping fee quotation for any other methods, EMS, UPS, DHL, Fedex is available on request. Terms of sales From:pjstore09 About us If you have any question or problem about the item, you can contact us, We will response you within 24 hours;We pride ourselves on the best customer service possible, which is evident of our current eBay feedback rating. We look forward to serving you. If you do not agree with our policies and shipping terms, please do not bid Contact us If you have any question or problem about the item, please contact us .we will handle. Engineered for professional eBay sellers!
