One Unit Two Uses - Dds Signal Generator & Frequency Counter

US $38.00

HK, Hong Kong
Jan 29th

Open on mobile:
QR code

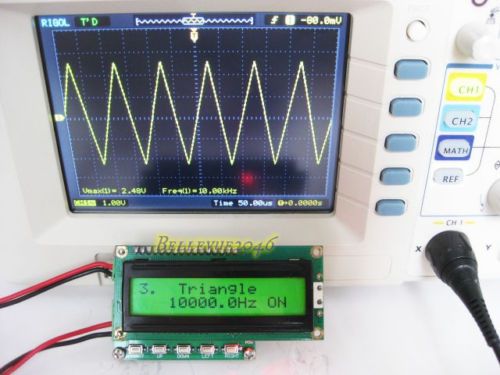

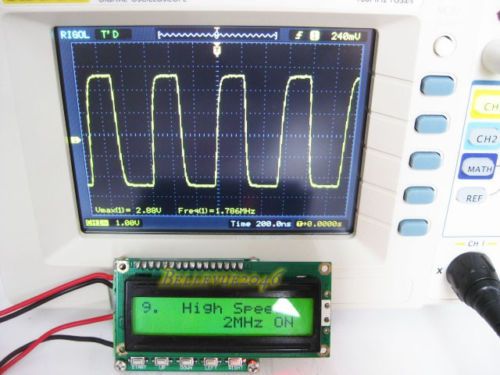

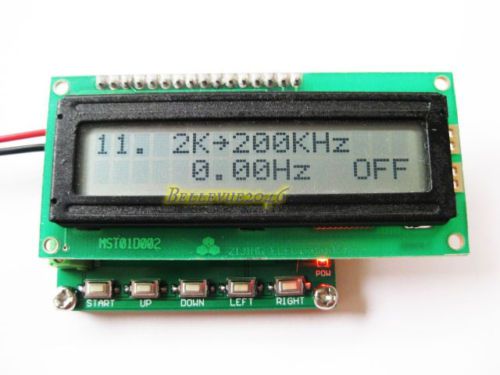

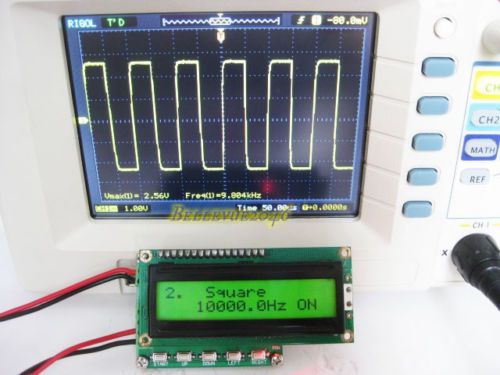

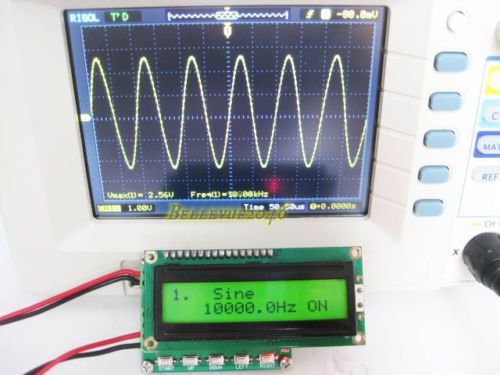

A Meter of Two Uses: Function DDS Signal Generator & Frequency Counter Description This is a compact DDS signal generator that can generate multi-wave-forms. The generator can generate maximum 100Khz sine wave signal. It can also generate triangle, square, saw-tooth, rev saw-tooth, heart-beat wave forms. It can also measure frequency in range 1Hz-200Khz. In short, this is a very handy device. Applications: Signal Generator Calibrating instruments Control of DC Motor Used as a Frequency Counter How to use the controller: Square Wave Range: 0.1 ~ 100000 Hz Triangle Wave Range: 0.1 ~ 10000 Hz Saw-tooth/ Rev Saw Tooth Wave Range: 0.1 ~ 10000 Hz Square Wave Range: 0.1 ~ 10000 Hz Heart-beat wave Range: 0.1 ~ 10000 Hz High frequency pulse range: 1, 2, 4, 8 Mhz pulse signal Signal Amplitude: 5 VDC max amplitude 5.0Vpp (constant) Frequency measuring range: Hz1 ~ 200Khz Frequency input voltage range: ±0.7~10 VDC Working Voltage: 7 - 12 V DC Working current: <50 mA Size: 57*45*20 mm Connections and Operations: P1: 1. VDD: power supply + ( 7-12V) 2. GND: power supply - P2: 1. FX: high frequency pulse output 2. HS: measuring of frequency - input 3. Out: output of various signals 4. GND: power supply - (ground) The Key Buttons: START: Start or Stop (signal output) UP: Page Up Down: Page Down LEFT: + RIGHT: - Package includes: 1 x One Meter of Two Uses: Function DDS Signal Generator & Frequency Counter Testing Photos: Please Visit Our Store for More Special Prices & Top Quality Items: Click Here Shipping All the items to USA will be sent via ePacket (this is a service set up by USPS for US address recipients) with tracking number. Other countries, for total order price below $30 we will ship your item without tracking number. If you need Registered shipping, please contact us for cost. Usually all the items will be shipped via Hong Kong Post Airmail or China Post Airmail. If you need other express service: EMS/DHL/FedEx/UPS , please contact us for the correct price. Your order will be dispatched within 1 (one) business day after the full payment is cleared. Airmail Packets' Delivery Time (reference only): - USA, Australia, New Zealand, Southeast Asia, East Asia. 7-20 business days. - EU (France, Spain, Italy, Germany, UK, etc.) ,Canada,10-25 business days. - Other Countries. 10-30 business days. - Russia, Ukraine, Brazil, Chile, Argentina, Mexico, etc. 15-35 business days, usually long time. Delivery time depends on postal process and other factors (especially Customs Inspection), They can get it as fast as 7 days, but it can take as long as 4-7 weeks in some instances. If you do not get your item in reference delivery time, please contact us first through ebay message (Please do NOT open any case), we will reply you as soon as possible (within 24 hours). Feedback We will leave 5 Star positive Feedback for buyer within 1~2 day after receiving the payment. 5 Star Feedback is our life. Please help do not leave a neutral or negative feedback and Low score, Please do contact us to get a better solution! Your understanding will be appreciated! We believe all the problems can be solved if buyer works with us. I am a honest seller , Please 100% trust! Your satisfaction is our final goal!!, Our best service will let you 100% satisfy!! Hope also to receive your 5 star positive feedback! Return Policy We accept Return for Buyer's any reason, but item must be "Sealed and Un-used Original Condition." If you already opened or used item, return will be NOT accepted. Shipping is NOT refundable. We will send refund as soon as returned item arrived. If you received wrong item, please let us know to resolve problem. We will exchange to correct item. (In this case, We will pay return shipping.) Everything we sell is 100% guaranteed authentic. We authenticate every item in our store before it is listed. We stand behind the authenticity of our items with a money-back guarantee. We appreciate your trust! Payment Terms We only accept payment through PayPal. All major credit cards are accepted through the secure payment processor of PayPal. Contact US 1. Please contact us with any comments, questions or suggestions that you may have, we will be happy to assist you. 2. You can contact us by leaving us an eBay message, or email us. You can find our email address in you Winning Buyer Notification email. 3. We Respond emails within 24 hours, Weekend within 36 hours . We apologize for the late reply during the holidays in Hong Kong.
