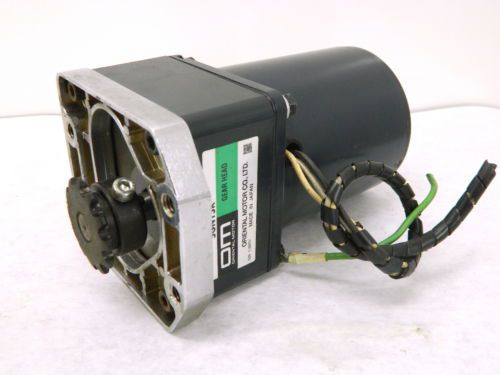

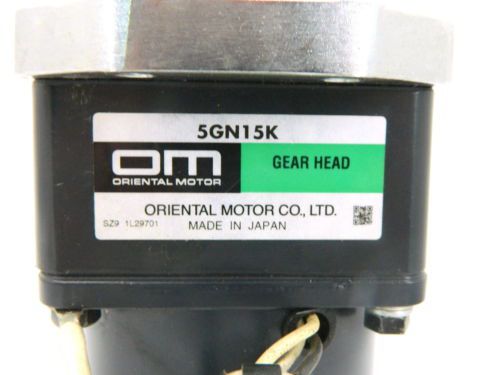

Oriental Motor 5GN15K Gear Head 40w 5IK40GN-S-E60 Induction Motor 200/220V 3Ph, US $75.00 – Picture 0

Oriental Motor 5GN15K Gear Head 40w 5IK40GN-S-E60 Induction Motor 200/220V 3Ph, US $75.00 – Picture 1

Oriental Motor 5GN15K Gear Head 40w 5IK40GN-S-E60 Induction Motor 200/220V 3Ph, US $75.00 – Picture 2

Oriental Motor 5GN15K Gear Head 40w 5IK40GN-S-E60 Induction Motor 200/220V 3Ph, US $75.00 – Picture 3

Oriental Motor 5gn15k Gear Head 40w 5ik40gn-s-e60 Induction Motor 200/220v 3ph

US $75.00

Bardstown, Kentucky, United States
Jan 29th

Open on mobile:
QR code

800-380-4913 SKU: IP3986 ITEM TITLE Oriental Motor 5GN15K Gear Head 40w 5IK40GN-S-E60 Induction Motor 200/220V 3Ph In Stock: 1 Brand: Oriental Motor Co. LTD Condition: Used Notes: Used Item, Good Condition. May show normal signs of wear. Model: 5IK40GN-S-E60 Type: Induction Motor Voltage: 200-220 Vac Phase: 3 Horse Power: 40 Watt Manufacturer: Oriental Motor Co LTD MPN: 5GN15K Product Type: MechanicalComponents bulletpoint1: 5IK40GN-S-E60 Induction Motor bulletpoint2: 40 Watt bulletpoint3: 200-220 Vac 3 Phase Handling Time In Days: 1 Amazon Condition: UsedGood Specifications Product Line Oriental Motor ® Motor Type Induction Output Power 40 W (1/19 HP) Voltage (VAC) Three-Phase 200/220/230 VAC Frequency (Hz) 60 50 Shaft/Gear Type Pinion Shaft for a Gearhead (sold separately) Type Lead Wire Rated Speed (rpm) 1300 [200 VAC, 50 Hz] 1600 [60 Hz] RoHS Compliant No Safety Standards UL CSA EN CE CE Marking Low Voltage Directives Insulation Resistance 100 M ? or more when 500 VDC megger is applied between the windings and the frame after rated motor operation under normal ambient temperature and humidity. Dielectric Strength Sufficient to withstand 1.5 kV at 50 Hz or 60 Hz applied between the windings and the frame for 1 minute after rated motor operation under normal ambient temperature and humidity. Temperature Rise Temperature rise of windings are 126°F (70°C) or less measured by the resistance change method after rated motor operation with connection to gearhead. Insulation Class Class B (266°F [130°C]) Overheat Protection Built-in thermal protector (Automatic return type). Operating temperature, open: 266°F ± 9°F (130°C ± 5°C) close: 179.6°F ± 27°F (82°C ± 15°C) Ambient Temperature Range Three-phase 200 VAC: 14°F ~ 122°F (-10°C ~ 50°C) (nonfreezing) Other voltage: 14°F ~ 104°F (-10°C ~ 40°C) (nonfreezing) Ambient Humidity 85% maximum (noncondensing) Degree of Protection IP20 ABOUT Automation Cntrl Sensing Devices Industrial Control Speed Controls Motion Control Encoder PAYMENTS Industrial Parts R Us Accepts PayPal & Visa, Mastercard, AMEX, Company Checks, & Bank Wire Transfer. DOMESTIC SHIPPING We are always happy to accommodate our customers and fully understand the importance of timely shipping. Please view our shipping policies below to better understand how we can help you. All "non-freight" orders placed before 10:00 A.M. EST will be shipped the same day. All orders placed after 10:00 A.M. EST will be shipped on the following day. All smaller items 70 lbs. and under ship USPS Priority Mail. Larger packages up to 150 lbs. will be shipped UPS Ground Service. Next Day Service is available if order is placed by 3:30 P.M. EST. For Emergency Orders call 800-380-4913. Tracking numbers will be posted automatically and emailed to the buyer. If you would like for us to use your UPS, USPS, FEDEX, or DHL account numbers, be sure to post a note on your invoice with the shipping address and your account number. We will insure items at the request of the buyer. All items over $1000 are automatically insured and added to the shipping price unless the buyer requests otherwise. FREIGHT ORDERS Items requiring Freight Shipping are usually shipped out within 2 days after the order is placed. NOTE: If your item requires a flatbed trailer for shipping, booking times have taken up to 2 weeks to arrange a carrier. This is not always the case but has happened in the past. We will arrange freight shipping for you. Just send us your zip code and let us know if it is a Commercial Address or a Residential Address. If you do not have a forklift or loading dock BE SURE TO SPECIFY IF A LIFTGATE SERVICE IS NEEDED. If this information is left out the freight carriers will charge extra fees for having to deliver twice. We will strap your items to a pallet and load at no charge. If you would like for us to crate your item, email us and we will send you a quote for crating your item. FREIGHT INSURANCE Accidents do happen. It is the customers responsibility to request Freight Shipping Insurance on your item. In most cases it will be an extra $40.00. Otherwise Industrial Parts R Us Inc. will not be held responsible for damaged shipments due to Freight Carrier Damage. (We do not use Saia Freight for this reason) INTERNATIONAL SHIPPING International Shipping is available. We will ship wordwide. Industrial Parts R Us Inc. will not be held responsible for delays due to customs clearance. RETURNS Industrial Parts R Us, Inc. will guarantee all items new and used for 30 days after the item has been received. Industrial Parts R Us, Inc. will replace the item if another is in stock, or will refund the original purchase price. Buyers are responsible for all return shipping charges. Refunds will be issued within 72 hours after the item has been returned and inspected.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Used Item, Good Condition. May show normal signs of wear.”
