Orientek T36 Fusion Splicer +sm Otdr1310/1550+sumitomo Fc-6s Cleaver+vfl+opm+ols

US $4,115.90

hong kong,hongkong, Hong Kong
Jun 9th

Open on mobile:
QR code

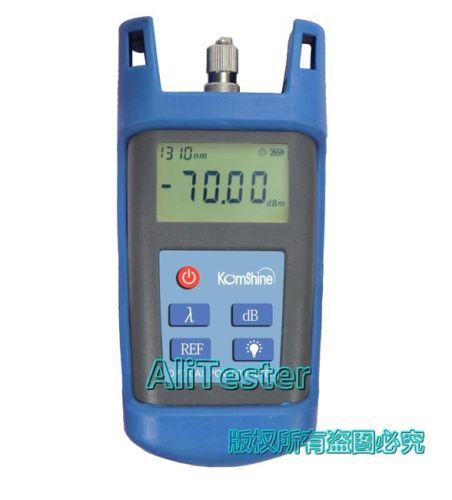

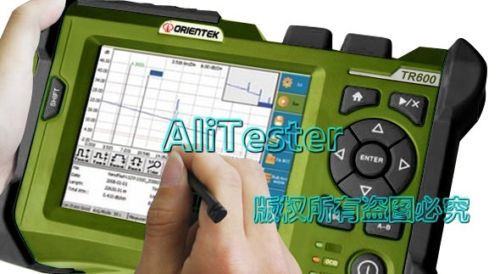

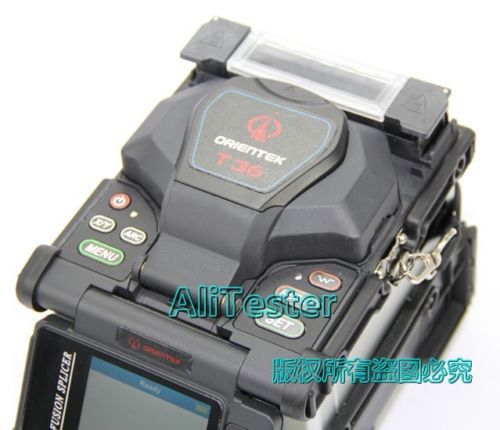

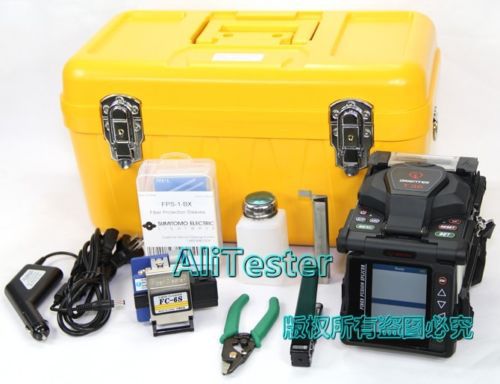

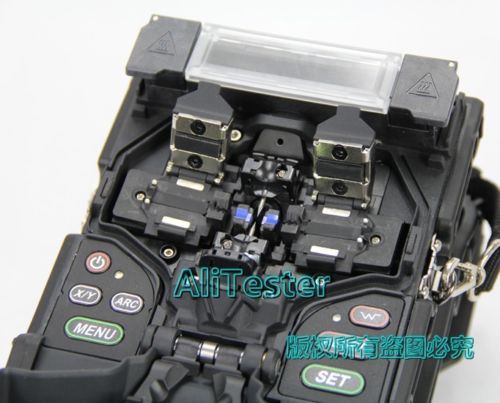

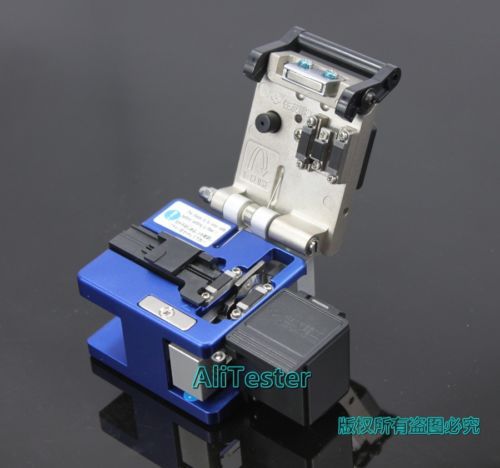

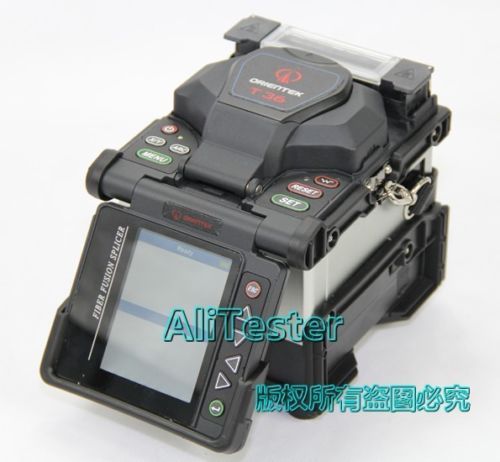

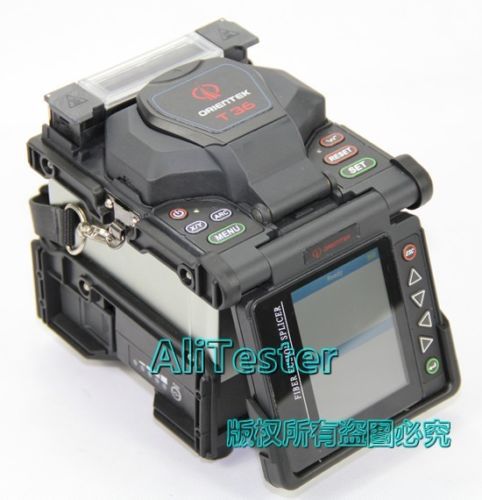

ORIENTEK T36 Fusion Splicer Kit w/ Cleaver + ORIENTEK TR600 Dual Wavelength 1310/1550nm 32/30dB OTDR + Optical Power Meter + Optical Light Source + Visual Fault Locator Come with Calibrate Certificate and Test Report ONE YEAR WARRANTY!!!!! New Brand!!! 1 .Orientek T36 Optical Fiber Fusion splicer Applicable Fibers SM / MM / DS / NZDS / BIF & UBIF (G.657) Average Loss 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) Return Loss >60dB Operation Methods Auto, Manual Typical Splicing Time 9s Typical Heating Time 28s Fiber Alignment Core Alignment / Clad Alignment Fiber Diameter Cladding: 80~150 um / Coating: 100~1000 um Cutting Length 8~16mm(Fiber diameter: <250um) / 16mm(Fiber diameter: 250~1000um) Magnification X or Y: 310X / X + Y: 155X LCD Display High performance 3.7 inch. TFT LCD / 640x480 resolution Tension Test 2N Applicable Sleeve 60mm / 40mm / 20mm or etc. Battery Capacity Average:200 cycles (Splicing and Heating) Charging time: 3 hours Battery Life Cycle 300~500 charge / discharge cycles Electrode Life Cycle Typical 3000 times Power Removable battery : 11.1V 8800mAH AC/DC adapter: input:AC100-240V output:DC13.5V/5.0A Working Environments Temp: -10C~+50C Humidity: 95%RH Elevation: 0~5000M Dimension LxWxH=135x160x150(mm) Weight 1.8 KGs (without battery), 2.3 KGs (with battery) 2 .ORIENTEK TR600 Dual Wavelength 1310/1550nm 30/28dB SM OTDR machine Model Orientek TR600 Wavelength(nm) 1310/1550 Dynamic range(dB) 32/30 Pulse width (ns) 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 Display 6.5 inch TFT LCD touch screen Event blind zone (m) 3 Attenuation blind zone (m) 13 Linearity (dB/dB) ±0.05 dB/ dB Loss threshold (dB) 0.05 Loss resolution ratio (dB) 0.01 Sampling resolution ratio (m) 0.125 to 8 Sampling point 32k Distance uncertainty (m) ±(1 m + 5x10-5x distance + sampling interval) Distance scope (km) 0.3 to180 Memory capacity of trace SD Card (4G), > 10000 pieces Duration of measurement Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable Optical interface FC/UPC+SC/UPC+LC/UPC Data interface USB interface, SD card interface Visual Fault Locator Available Power supply Lithium battery; continuing working duration >= 8 hours Warranty period 12 months 3: Mini Optical Power Meter + Mini Light Source + Visual Fault Locator INCLUDES: - 1. Six wavelenghts Optical Power Meter for SM & MM - 2. Dual Wavelengths 1310/1550nm Optical Light Source for SM - 3. Pocket size Visual Fault Locator Shipping:: We Ship to Worldwide • Shipping Methods: We will attempt to ship your item(s) by DHL/TNT/EMS... within 24 hours after payment has been received., Most of our products are Free Shipping(the price has been included the shipping cost) Normally we send the items to Brazil and Russia by EMS express. • Customs Taxes: Many countries impose their own custom, dutires, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries agency for that information. If you need us to attach a low value documents with the shiment in order to reduce your customs taxes, we can help you do that. Warranty:: All The Items Are Totally Brand New w/ One Year's Warranty • Warranty: In warranty, if the machine comes with any small problem pls contact us asap. we will give you online supports: Phone call, Email and Video Tutorial. and we will send you the replacement parts by express If the machine comes with big problems we will asked you to send it back to us for repaired. and then we will send it back to you. we will send a new machine to you if we can not fix the broken machine. . § We strongly recomend that do not buy the machines with a lowest price as they often can't give you quality assurance and normal warranty. Payment:: We accept the following forms of payment: • PayPal: Accepted for USA and Canadian transactions pursuant to our eBay Sales Policy*. Shipping to a PayPal verified address may be required. Authorization for PayPal acceptance when the item is being shipped to outside of the U.S.A. at our discretion. Contact us with questions. • Credit/Debit Cards: Accepted for USA and Canadian eBay transactions pursuant to our eBay Sales Policy*. Cards accepted: Visa, MasterCard, Discover Card, and American Express. We may require shipping to the card holder's billing address and signed CC Authorization form. • Bank Wire Transfer: Contact us to get our bank account informations Contact :: Mailing Address: AlitesterPRO Ebay Sales Phone: (86) 25-8687 0896 10~15F RedSun Mansion, North Bridge Road. Pukou District, Nanjing, China Business Hours: 24 Hours Email: Monday to Friday Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	orientek
Country/Region of Manufacture	China
Model	T36
Country of Manufacture	China
MPN	T36G201306236
Manufacturer	Orientek
