Ortec 556 High Voltage Power Supply Advanced Measurement Technology

US $420.00

  • Vallejo, California, United States
  • Jan 29th
Open on mobile:
QR code

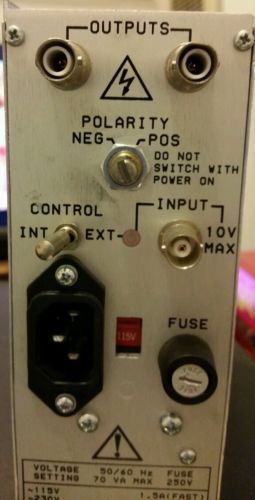

The ORTEC 556 High Voltage Power Supply is a standard double-width NIM module that provides either polarity of output voltage from 50 to 3000 V, 0 to 10 mA. The adjusted output voltage of the selected polarity is vailable simultaneously through two SHV rear-panel connectors. A rearpanel slide switch permits operation on either 115- or 230-V ac input power, furnished through a removable power line cord and connector.   The 556 features a front-panel LCD meter which can be programmed via a front-panel toggle switch to display either output voltage or load current. The output voltage can be programmed by an external control via a rear-panel BNC connector.   The 556 provides the extremely stable, low-noise, high voltage that is required for proper bias of photomultiplier tubes, ionization chambers, and semiconductor detectors.   SPECIFICATIONS: PERFORMANCE: OUTPUT POLARITY - Positive or negative, selected by switch on rear panel. OUTPUT RANGE - 50 to 3000 V; minimum usable voltage 10 V. OUTPUT LOAD CAPACITY - 0 to 10 mA. REGULATION - <0.0025% variation in output voltage for combined line and load variations within operating range at constant ambient temperature. TEMPERATURE INSTABILITY - <±50 ppm/°C after 30 minute warmup; operating range 0 to 50°C. LONG-TERM DRIFT - <0.01%/hour and <0.03%/24-hour variation in output voltage at constant input line voltage, load, and ambient temperature after 30 minute warmup. OUTPUT RIPPLE - <10 mV peak-to-peak, 20 Hz to 20 MHZ. OVERLOAD PROTECTION - Internal circuitry protects against overloads including short circuits. RESETTABILITY - Output voltage can be reset to within 0.1%. FREE! Sellers: Add a FREE map to your listings. FREE! Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application
Condition:
New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...
Brand ORTEC
Model 556
